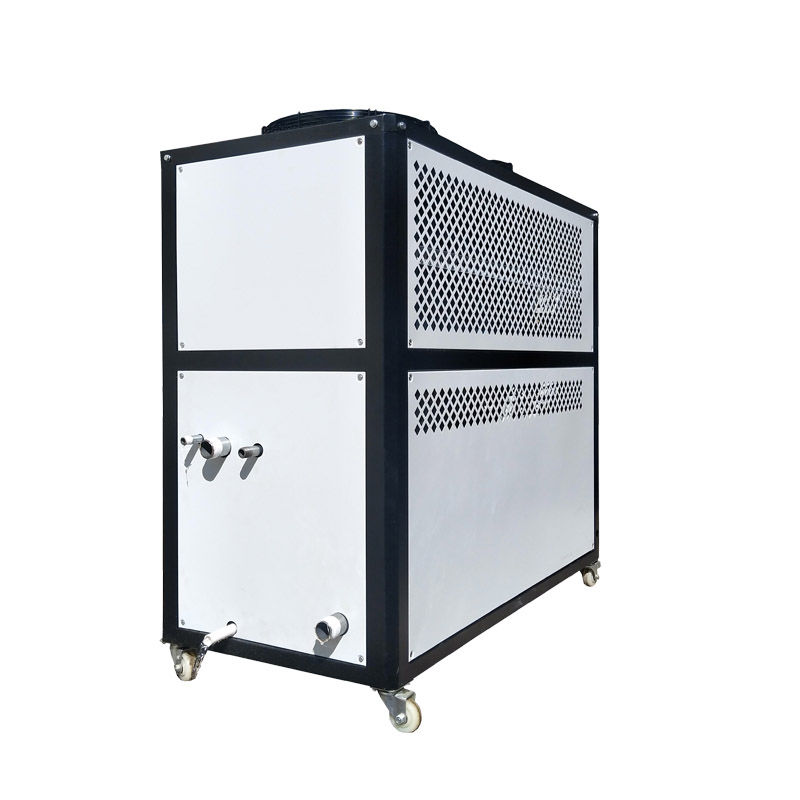

  • 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 0 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 0

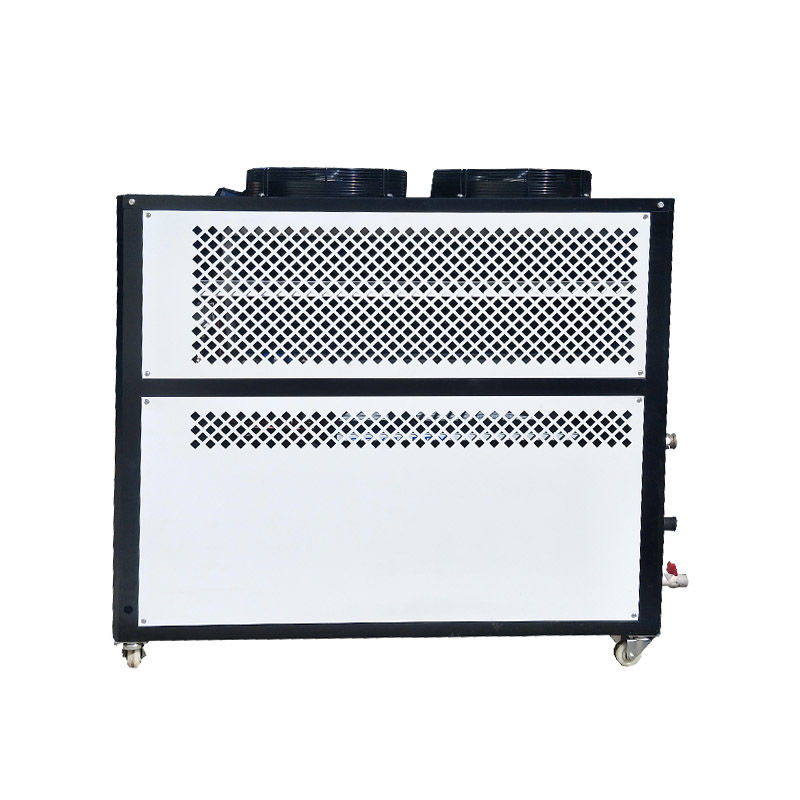

  • 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 1 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 1

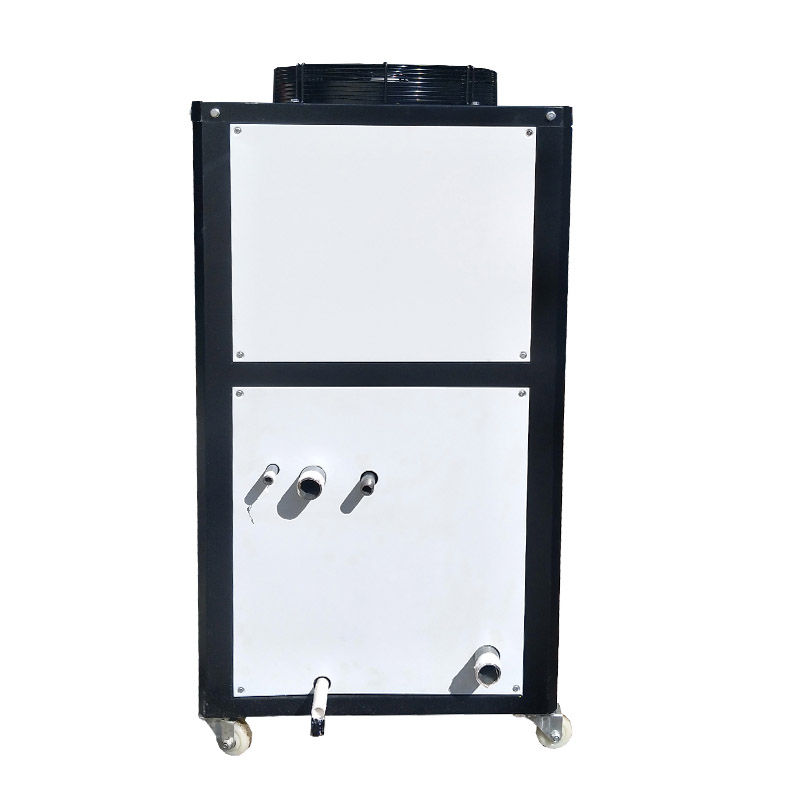

  • 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 2 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 2

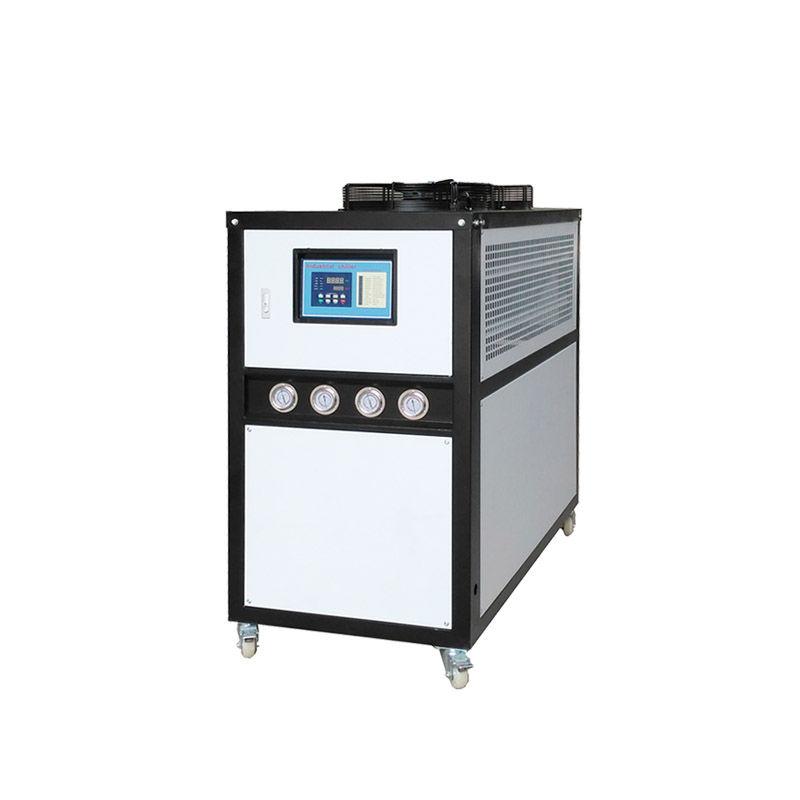

  • 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 3 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 3

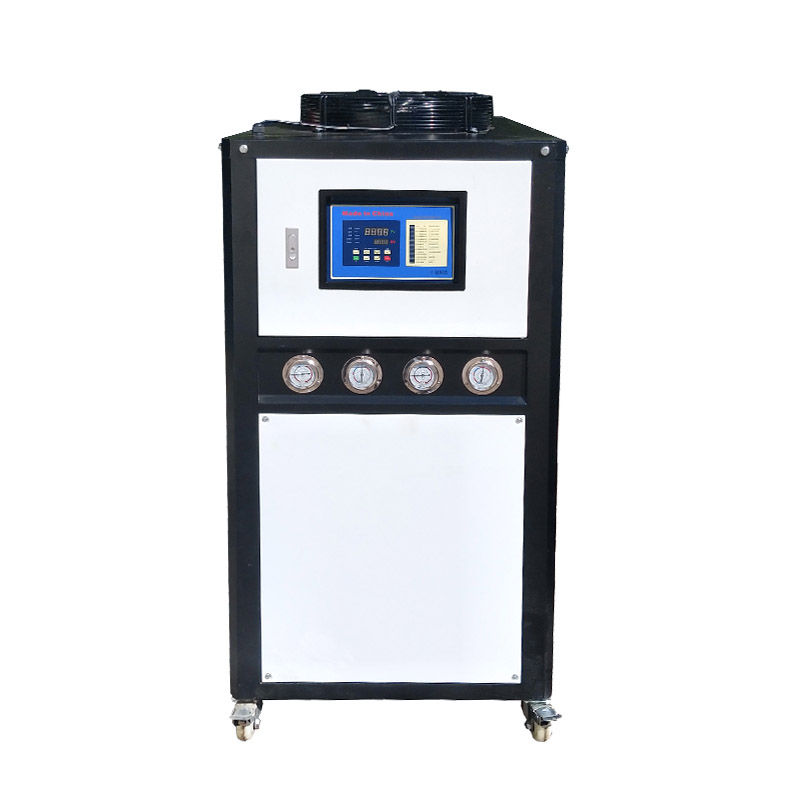

  • 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 4 3PH-460V-60HZ 10HP Air-cooled Box Chiller - 4

3PH-460V-60HZ 10HP Air-cooled Box Chiller

Jiusheng 3PH-460V-60HZ 10hp Air-cooled Box Chiller is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 10HP horsepower chiller.


Send Inquiry

Product Description

3PH-460V-60HZ 10hp Air-cooled Box Chiller


This is a 3PH-460V-60HZ 10HP air-cooled chiller. The cooling capacity is 30kW (25800Kcal/hr; 102408BTU). This model is a hot-selling model and is widely used in various industries: cooling of injection molding machines, cooling of blister machines, cooling of vacuum coating machines, etc...

The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.

Model: JSFL-10-A

Brand: Jiusheng

Voltage: 3PH-460V 60HZ
Compressor power: 10HP/7.5KW
Temperature control range: 5-35℃
Pump power: 750W
Pump flow: 200L/MIN
Pump head: 13M
Cooling capacity: 30KW/hr (25800Kcal/hr; 102408BTU)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing


1. Internationally advanced scroll or piston compressors. The components of the electrical appliances and refrigeration system are all products of world-renowned brands.

2. Built-in stainless steel water tank, high-performance, high-flow special pump;

3. The bottom of the fuselage is equipped with swivel casters, which is flexible and easy to move.

4. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

5. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

6. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.


Model # JSFL-10-A
Cooling Capacity
kW 30
kCal/h 25800
BTU 102408
Power Supply 3PH-460V-60HZ
Total Power Input kW 8.61
Operation Current A 14
Compressor Brand Panasonic
Type Full-hermetic scroll
Power inputkW 3.68 * 2PC
Cooling Fan Type External rotor axial fan
Power (kW) 0.25 * 2PC
Pump Power(kW) 0.75
Flow rate (m³/h) 12
Pump head (m) 13
Condenser Type Aluminum fin & Copper tube
Evaporator Type Copper coil
Water Tank Material SUS Stainless steel
Volume (L) 145
Pipe fitting ø Medium Outlet DN40
ø Medium Inlet DN40
Electrical AC Contactor Schneider
Cooling Condition Ambient Temp. 5 - 45
Chilled Water Temp Range 5 - 30
Temp Accuracy ±1
Alarming System Abnormal Temperature, Phase reverse/missing, High/Low Pressure Fault, Compressor overload,  Compressor overheat, Pump overload, Medium low level, Short-circuit
Temperature Display Push-button digital display
Cooling medium Tap-water
Refrigerant R22
Measurement L*W*H(mm) 1600*730*1450
N.W. / G.W. Kg 294 / 367
