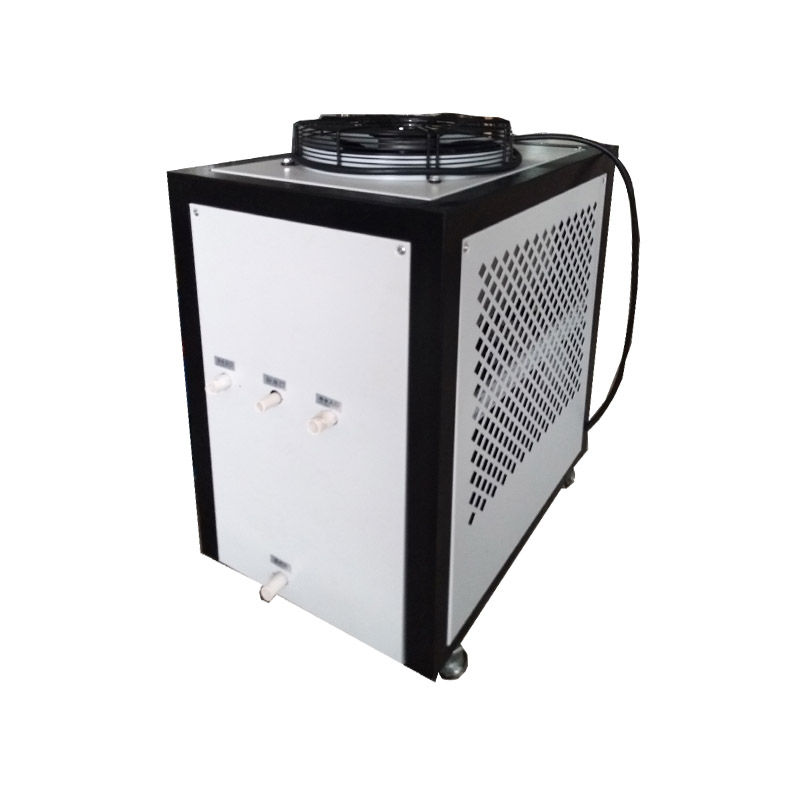

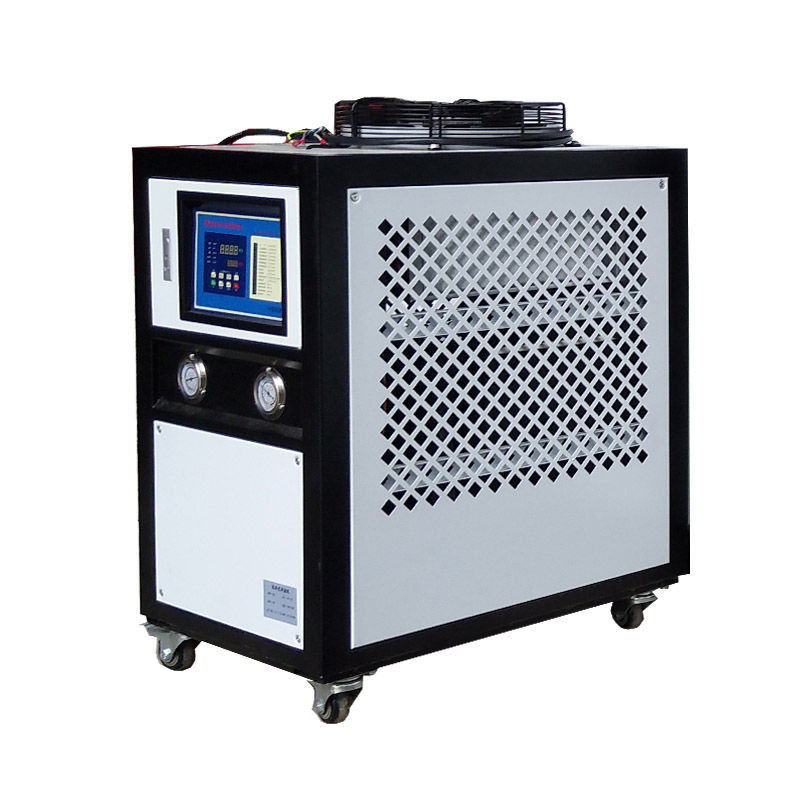

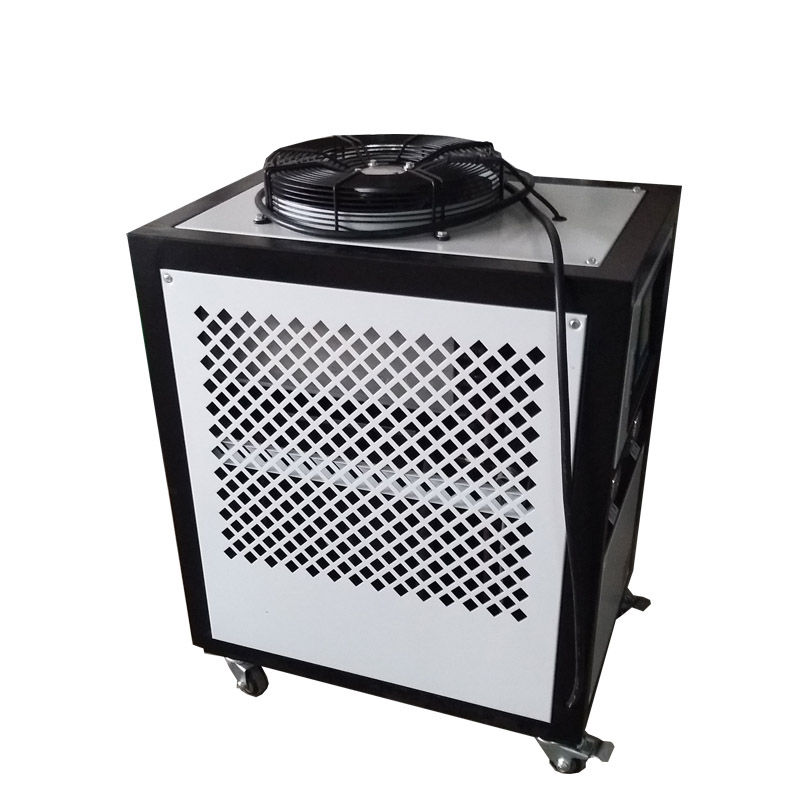

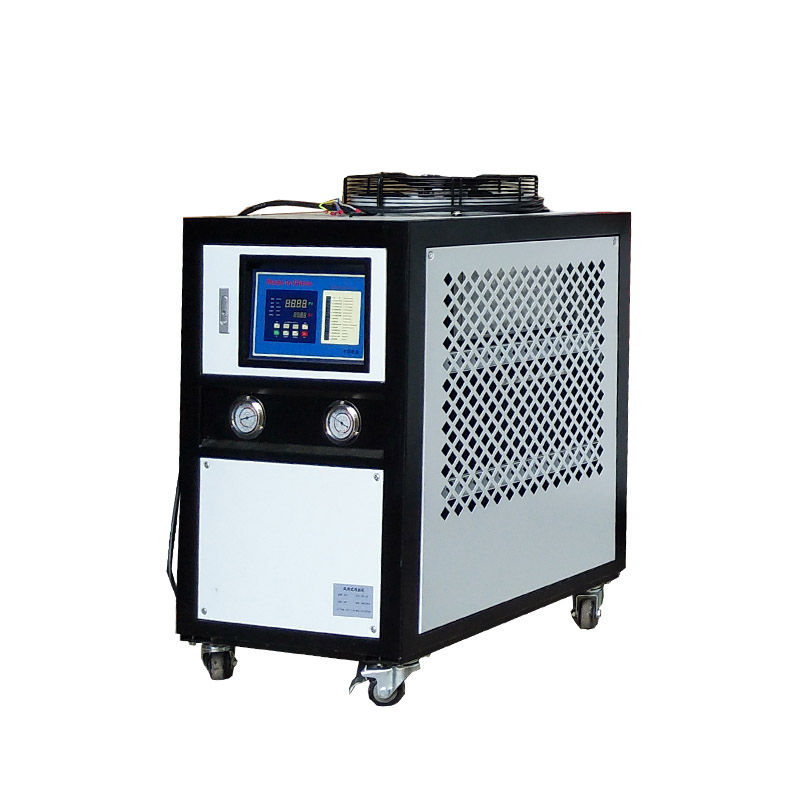

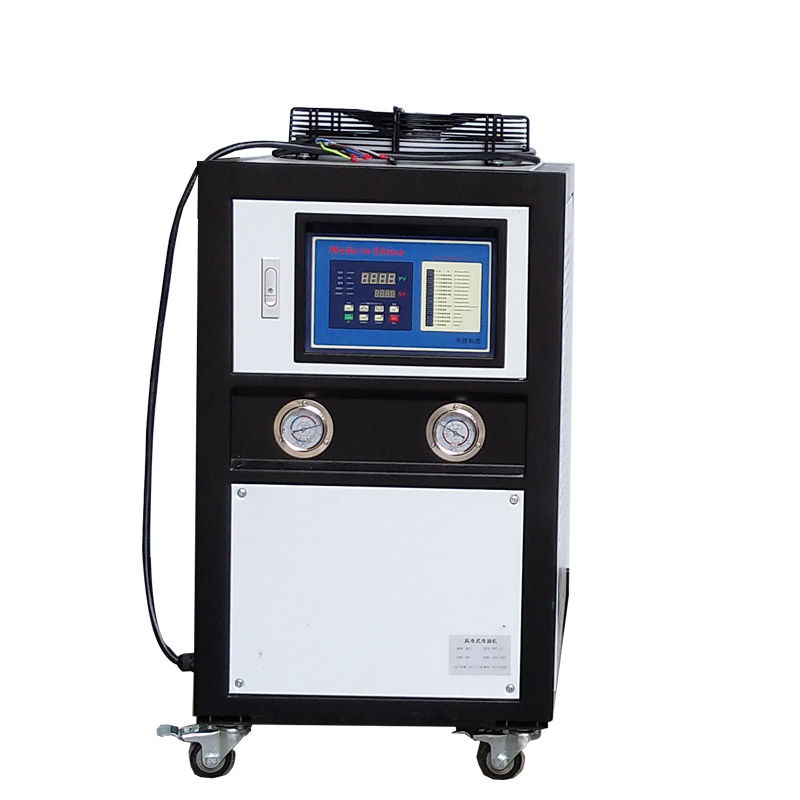

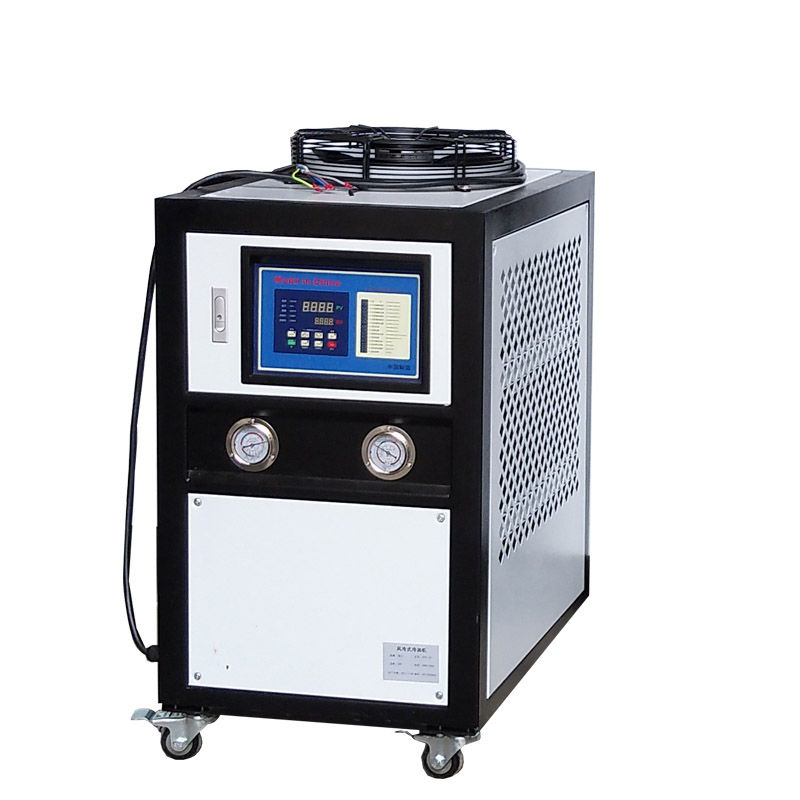

3PH-460V-60HZ 2hp Air-cooled Box Chiller
This is a 3PH-460V-60HZ 2HP air-cooled chiller. The cooling capacity is 6kW (5160Kcal/hr; 20482BTU). This model is a hot-selling model and is widely used in various industries: cooling of injection molding machines, cooling of blister machines, cooling of vacuum coating machines, etc...
The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.
Voltage: 3PH-460V 60HZ
Compressor power: 2HP/1.47KW
Temperature control range: 5-35℃
Pump power: 370W
Pump flow: 100L/MIN
Pump head: 22M
Cooling capacity: 6KW/hr (5160Kcal/hr; 20482BTU)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)
Minimum order quantity: 1 set
Payment method: wire transfer, EXW, FOB/negotiation
Place of Origin: Dongguan City, Guangdong Province, China
Delivery time: 10-20 days/negotiation
Service: OEM / ODM
Supply Ability: 1000PCS/month
Packing: plywood packing
1. Internationally advanced scroll or piston compressors. The components of the electrical appliances and refrigeration system are all products of world-renowned brands.
2. Built-in stainless steel water tank, high-performance, high-flow special pump;
3. The bottom of the fuselage is equipped with swivel casters, which is flexible and easy to move.
4. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;
5. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.
6. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.
|Kcal/h / BTU||5160 / 20482|
|Total Power Input||kW||2.02|
|Power input（kW）||1.47 * 1PC|
|Cooling Fan||Type||External rotor axial fan|
|Power (kW)||0.18 * 1PC|
|Flow rate (m³/h)||6|
|Pump head (m)||22|
|Condenser||Type||Aluminum fin & Copper tube|
|Water Tank||Material||SUS Stainless steel|
|Pipe fitting||ø Medium Outlet||DN25|
|ø Medium Inlet||DN25|
|Temperature Display||Push-button digital display|
|Electrical||AC Contactor||Schneider, France|
|Cooling Condition||Ambient Temp.||35℃|
|Chilled Water Temp Range||5℃ - 30℃|
|Alarming System||Abnormal Temperature, Phase reverse, High/Low Pressure Fault, Compressor overload, Compressor overheat, Pump overload, Medium low level, Short-circuit|
A. Leading manufacturer of industrial chillers for 20 years.
B. Expert in industrial cooling solutions.
C. Many customized services can be provided for industrial chillers.
D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.
E. Our industrial chillers have passed CE certification.
Thank you for your patience!
If you need to inquire about prices and technical issues, please call 13925748878 Miss Zhu，We will provide you with the best quality service.
