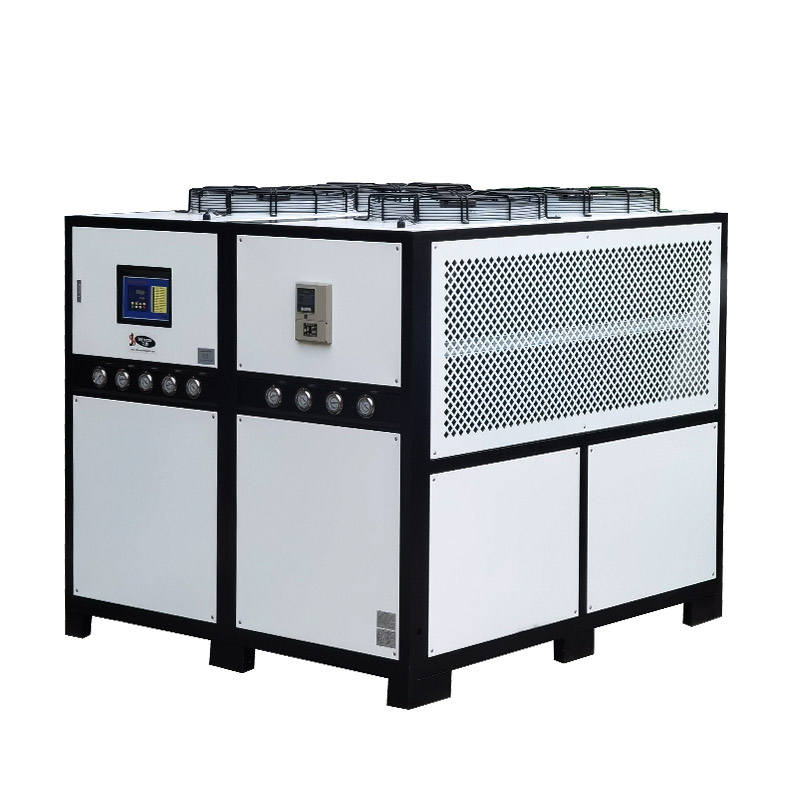

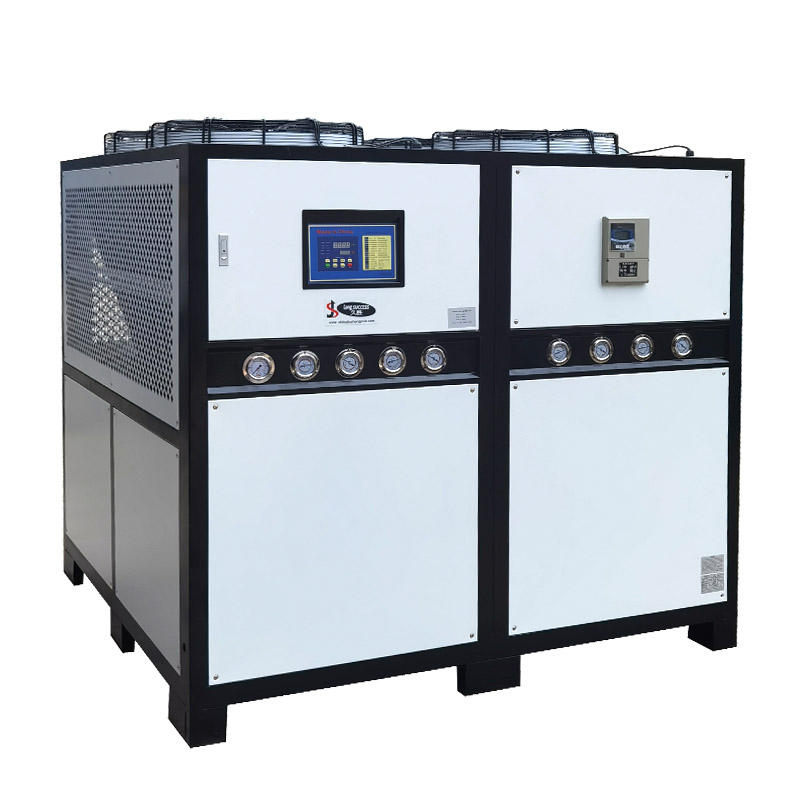

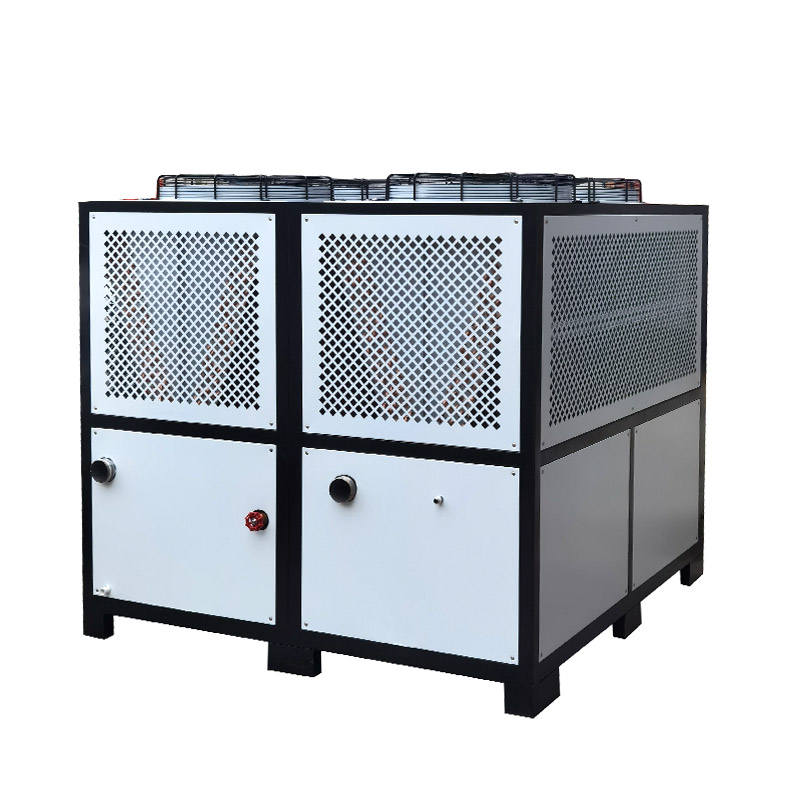

50hp Air-cooled Box Chiller
This is a 50HP air-cooled chiller. Large box-type chiller with a cooling capacity of 158KW (135880Kcal/hr). Widely used in many industries: large injection molding machine mold cooling, optical coating cooling, glycol cooling, electroplating oxidation tank cooling, etc...
The machine runs continuously for 8760 hours without failure, and is guaranteed for 12 months, we provide free technical guide services for more than 10 years. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.
Model: JSFL-50, power specification: 50HP air-cooled
Compressor power: 50HP/37.5KW
Temperature control range: 5-35℃
Pump power: 3.75W
Pump flow: 700L/MIN
Pump head: 16M
Cooling capacity: 158KW/hr (135880Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)
Minimum order quantity: 1 set
Payment method: wire transfer, EXW, FOB/negotiation
Place of Origin: Dongguan City, Guangdong Province, China
Delivery time: 10-20 days/negotiation
Service: OEM / ODM
Supply Ability: 1000PCS/month
Packing: plywood packing
1. High-precision temperature control and high-speed cooling efficiency; energy-saving and environmentally friendly operation.
2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.
|Power Supply||3PH-380V-50HZ (Optional: 3PH-230V-60HZ; 3PH-460V-60HZ)|
|Total Power Input||kW||44.51|
|Power input（kW）||9.19 * 4PC|
|Cooling Fan||Type||External rotor axial fan|
|Power (kW)||1 * 4PC|
|Flow rate (m³/h)||42|
|Pump head (m)||16|
|Condenser||Type||Aluminum fin & Copper tube|
|Water Tank||Material||SUS Stainless steel|
|Pipe fitting||ø Medium Outlet||DN80|
|ø Medium Inlet||DN80|
|Electrical||AC Contactor||Schneider, France|
|Cooling Condition||Ambient Temp.||35℃|
|Chilled Water Temp Range||5℃ - 30℃|
|Alarming System||Abnormal Temperature, Phase reverse, High/Low Pressure Fault, Compressor overload, Compressor overheat, Pump overload, Medium low level, Short-circuit|
|Temperature Display||Push-button digital display|
A. Leading manufacturer of industrial chillers for 20 years.
B. Expert in industrial cooling solutions.
C. Many customized services can be provided for industrial chillers.
D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.
E. Our industrial chillers have passed CE certification.
