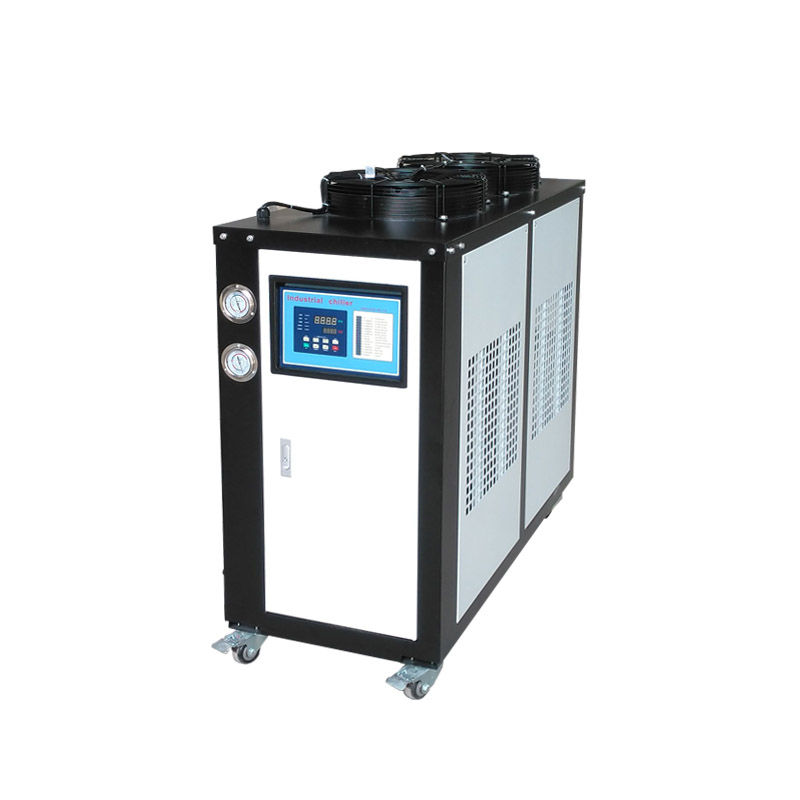

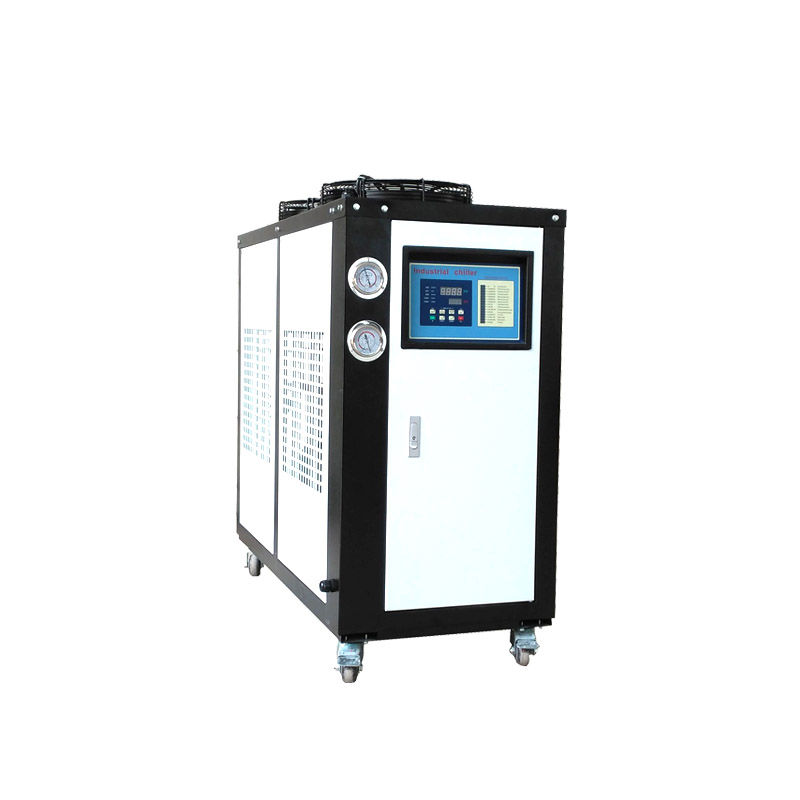

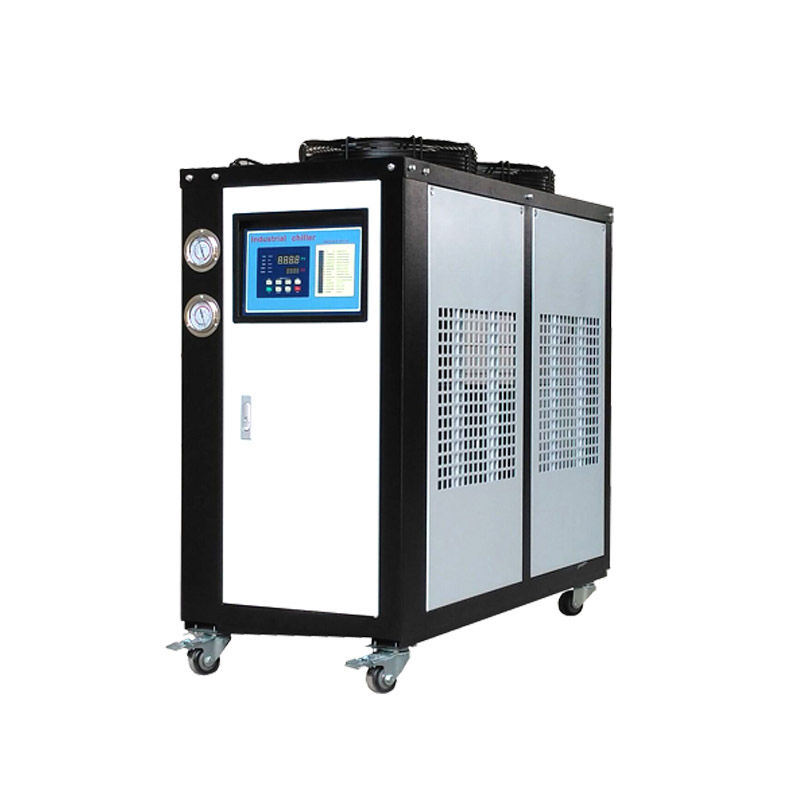

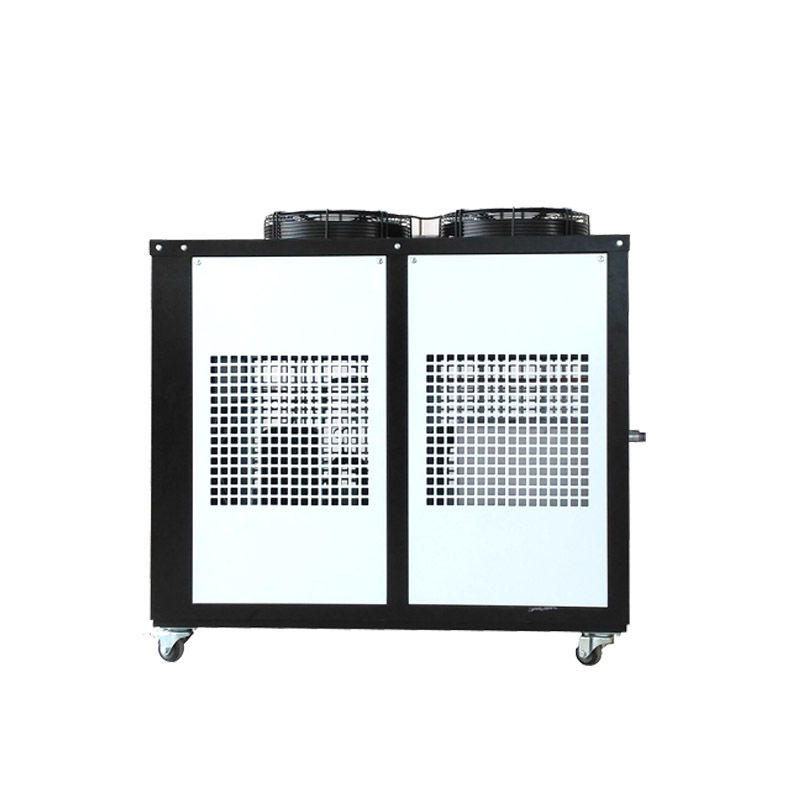

3PH-460V-60HZ 3hp Air-cooled Box Chiller
This is a 3PH-460V-60HZ 3HP air-cooled chiller. The cooling capacity is 9kW (7740Kcal/hr; 30722BTU). This model is a hot-selling model and is widely used in various industries: cooling of injection molding machines, cooling of blister machines, cooling of vacuum coating machines, etc...
The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.
Voltage: 3PH-460V 60HZ
Compressor power: 3HP/2.21KW
Temperature control range: 5-35℃
Pump power: 370W
Pump flow: 100L/MIN
Pump head: 22M
Cooling capacity: 9KW/hr (7740Kcal/hr; 30722BTU)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)
Minimum order quantity: 1 set
Payment method: wire transfer, EXW, FOB/negotiation
Place of Origin: Dongguan City, Guangdong Province, China
Delivery time: 10-20 days/negotiation
Service: OEM / ODM
Supply Ability: 1000PCS/month
Packing: plywood packing
1. Internationally advanced scroll or piston compressors. The components of the electrical appliances and refrigeration system are all products of world-renowned brands.
2. Built-in stainless steel water tank, high-performance, high-flow special pump;
3. The bottom of the fuselage is equipped with swivel casters, which is flexible and easy to move.
4. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;
5. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.
6. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.
|Kcal/h / BTU||7740 / 30722|
|Total Power Input||kW||2.93|
|Power input（kW）||1.1 * 2PC|
|Cooling Fan||Type||External rotor axial fan|
|Power (kW)||0.18 * 2PC|
|Flow rate (m³/h)||6|
|Pump head (m)||22|
|Condenser||Type||Aluminum fin & Copper tube|
|Water Tank||Material||SUS Stainless steel|
|Pipe fitting||ø Medium Outlet||DN25|
|ø Medium Inlet||DN25|
|Temperature Display||Push-button digital display|
|Electrical||AC Contactor||Schneider, France|
|Cooling Condition||Ambient Temp.||35℃|
|Chilled Water Temp Range||5℃ - 30℃|
|Alarming System||Abnormal Temperature, Phase reverse, High/Low Pressure Fault, Compressor overload, Compressor overheat, Pump overload, Medium low level, Short-circuit|
A. Leading manufacturer of industrial chillers for 20 years.
B. Expert in industrial cooling solutions.
C. Many customized services can be provided for industrial chillers.
D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.
E. Our industrial chillers have passed CE certification.
