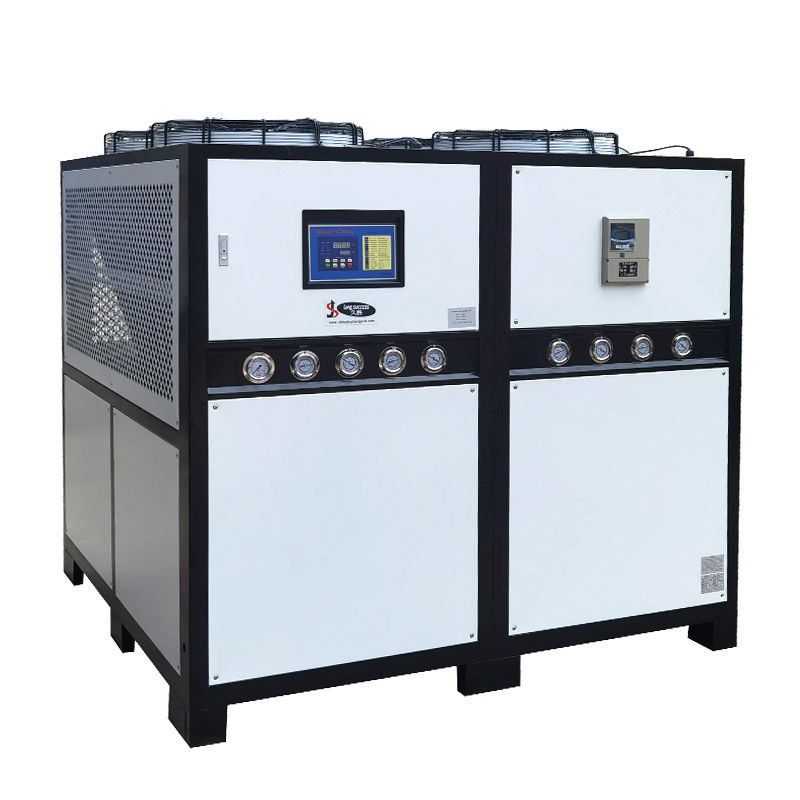

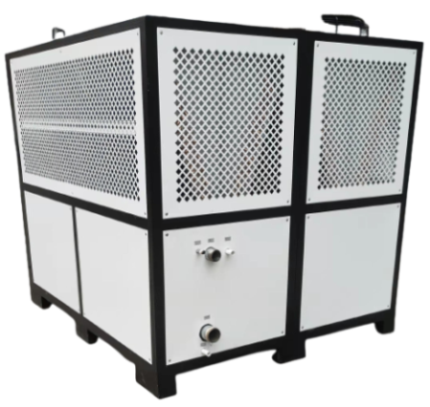

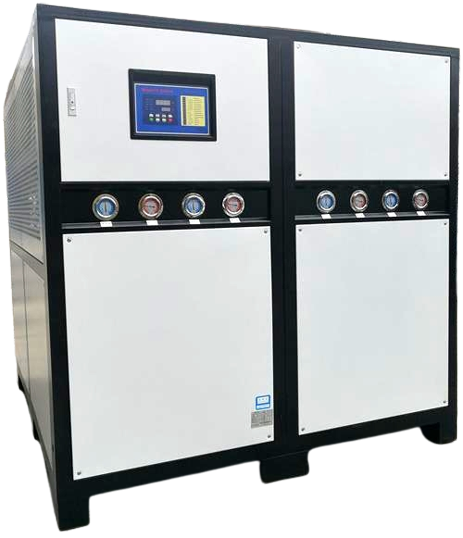

40HP Air-cooled Box Chiller
  • 40HP Air-cooled Box Chiller - 0 40HP Air-cooled Box Chiller - 0
  • 40HP Air-cooled Box Chiller - 1 40HP Air-cooled Box Chiller - 1
  • 40HP Air-cooled Box Chiller - 2 40HP Air-cooled Box Chiller - 2
  • 40HP Air-cooled Box Chiller - 3 40HP Air-cooled Box Chiller - 3
  • 40HP Air-cooled Box Chiller - 4 40HP Air-cooled Box Chiller - 4

40HP Air-cooled Box Chiller

China Easy-maintainable 40hp Air-cooled Box Chiller with 12 months Warranty.This is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 40 horsepower chiller.

Model:JSFL-40

Send Inquiry

Product Description

40hp Air-cooled Box Chiller


Introduction

This is a 40HP air-cooled chiller. Large box-type chiller with a cooling capacity of 126KW (108360Kcal/hr). Widely used in every industry: large injection molding machine mold cooling, optical coating cooling, glycol cooling, electroplating oxidation tank cooling, etc...
The machine runs continuously for 8760 hours without failure, and is guaranteed for 12 months, we provide free technical guide services for more than 10 years. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.





Model: JSFL-40

Brand: Jiusheng

Voltage: 3PH-380V-50HZ
Compressor power: 40HP/30KW
Temperature control range: 5-35℃
Pump power: 3.75W
Pump flow: 700L/MIN
Pump head: 16M
Cooling capacity: 126KW/hr (108360Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)


Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing

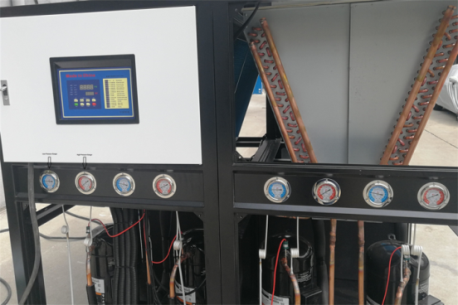

40hp Air-cooled Box Chiller display and advantages

1. High-precision temperature control and high-speed cooling efficiency, and energy-saving and environmentally friendly operation.

2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.


40hp Air-cooled Box Chiller parameters

Model # JSFL-40-B
Nominal
Cooling Capacity
kW 126
Kcal/h 108360
Power Supply 3PH-380V-50HZ
Total Power Input kW 36.27
Operation Current A 56
Compressor Brand Copeland
Type Full-hermetic scroll
Power inputkW 7.35 * 4PC
Cooling Fan Type External rotor axial fan
Power (kW) 0.78 * 4PC
Pump Power(kW) 3.75
Flow rate (m³/h) 42
Pump head (m) 16
Condenser Type Aluminum fin & Copper tube
Evaporator Type Copper coil
Water Tank Material SUS Stainless steel
Volume (L) 350
Pipe fitting ø Medium Outlet DN80
ø Medium Inlet DN80
Electrical AC Contactor          Schneider, France
Cooling Condition Ambient Temp. 35
Chilled Water Temp Range 5 - 30
Temp Accuracy  ±1
Alarming System Abnormal Temperature, Phase reverse, High/Low Pressure Fault, Compressor overload,  Compressor overheat, Pump overload, Medium low level, Short-circuit
Temperature Display Push-button digital display
Cooling medium   Tap-water
Refrigerant R22
Measurement L*W*H(mm)          2010*1750*1670
Net Weight Kgs 1200




Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.


Applications onsite

Thank you for your patience!

If you need to inquire about prices and technical issues, please call 13925748878 Miss Zhu,We will provide you with the best quality service.
