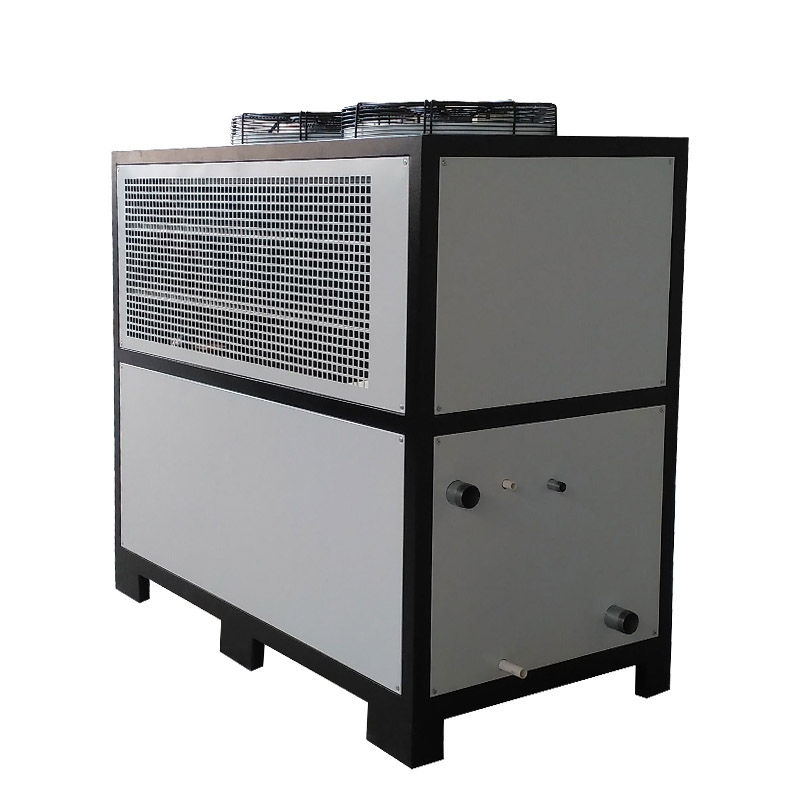

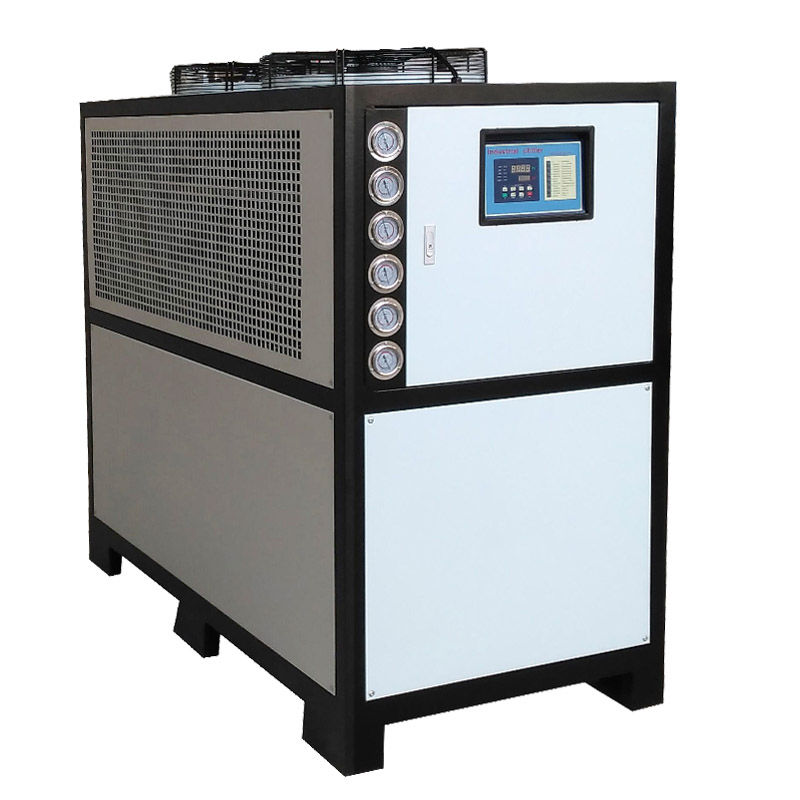

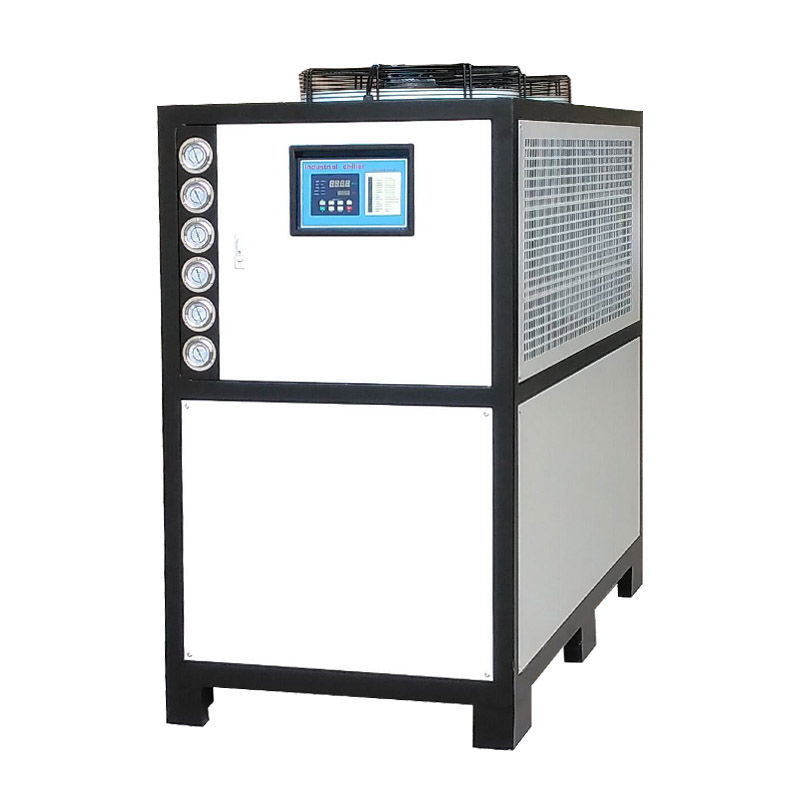

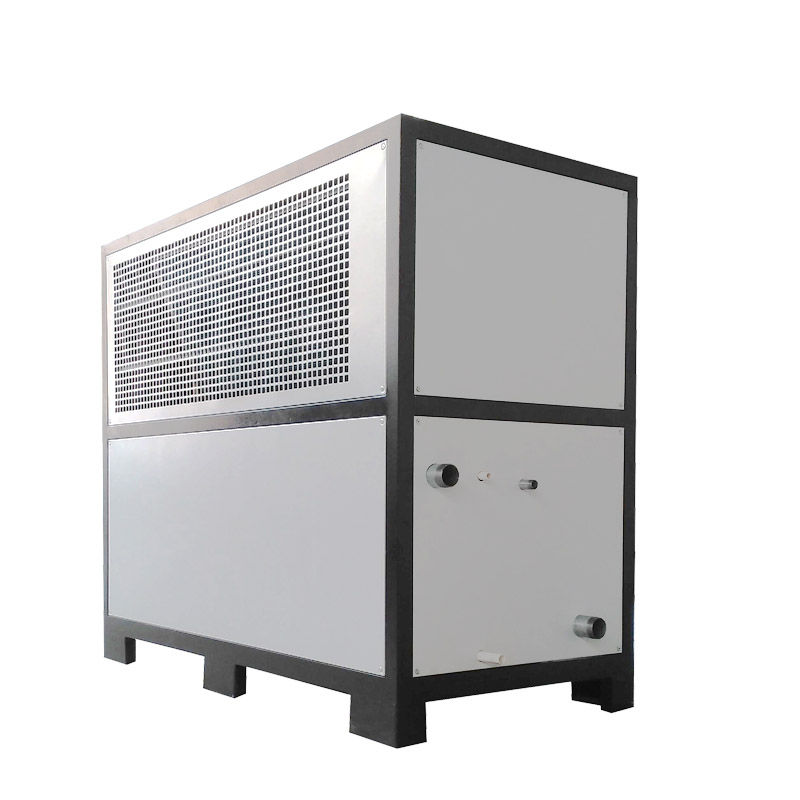

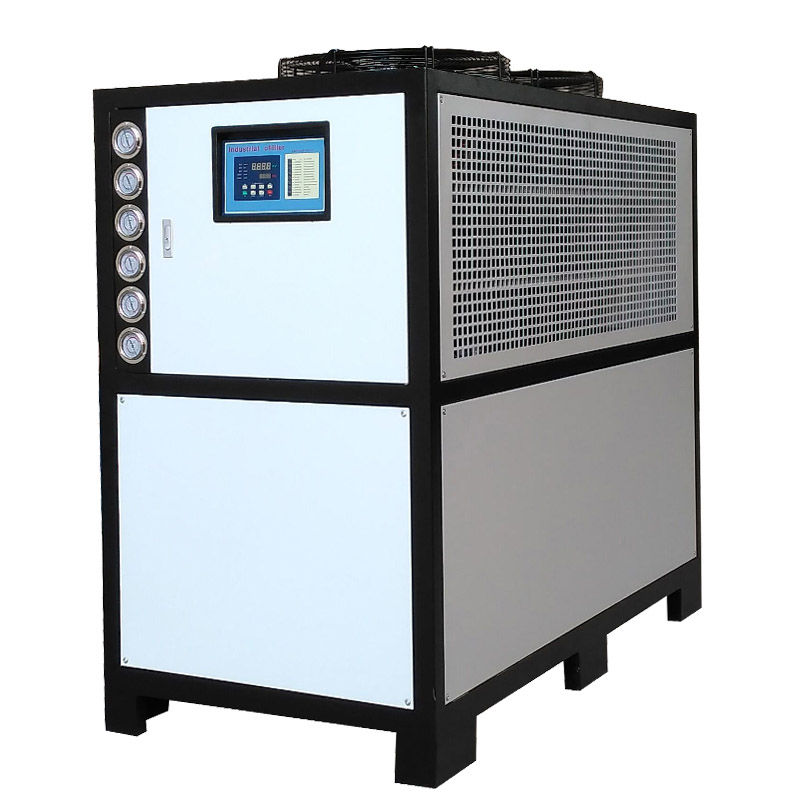

15HP Air-cooled Box Chiller
  • 15HP Air-cooled Box Chiller - 0 15HP Air-cooled Box Chiller - 0
  • 15HP Air-cooled Box Chiller - 1 15HP Air-cooled Box Chiller - 1
  • 15HP Air-cooled Box Chiller - 2 15HP Air-cooled Box Chiller - 2
  • 15HP Air-cooled Box Chiller - 3 15HP Air-cooled Box Chiller - 3
  • 15HP Air-cooled Box Chiller - 4 15HP Air-cooled Box Chiller - 4

15HP Air-cooled Box Chiller

Jiusheng 15HP Air-cooled Box Chiller Model JSFL-15 is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 15HP horsepower chiller.


Send Inquiry

Product Description

15HP Air-cooled Box Chiller


Jiusheng 15HP Air-cooled Chiller Model JSFL-15  is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling.  The cooling capacity is 45KW (38700Kcal/hr). Widely used in every industry: coating machine cold water, casting machine cooling, resistance welding machine cooling, etc...

The machine runs continuously for 8760 hours without failure, and is guaranteed for 12 months, we provide free technical guide services for more than 10 years. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.

Model: JSFL-15, power specification: 15HP air-cooled

Brand: Jiusheng

Voltage: 5N-380V 50HZ (can be customized according to the needs of different regions)
Compressor power: 15HP/11KW
Temperature control range: 5-35℃
Pump power: 1.5W
Pump flow: 360L/MIN
Pump head: 15M
Cooling capacity: 45KW/hr (38700Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing

15HP Air-cooled Box Chiller display and advantages

1. 15HP Air-cooled Box Chiller, High-precision temperature control and high-speed cooling efficiency, and energy-saving and environmentally friendly operation

As a professional supplier of industrial chillers, jiusheng has 20 years of experience in the design and manufacture of industrial chillers. Our smart and special design help our customers save a lot of money. Our air-cooled chillers save a lot of electricity costs for our customers with high cooling efficiency and low-carbon operation.

2. 15HP Air-cooled Box Chiller,Famous brand accessories in our industrial chillers

We use world-renowned accessories in our air-cooled industrial chillers. Under normal operation, our industrial chillers can be used for more than 10 years.

Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

15HP Air-cooled Box Chiller parameters

product description:

1. jiusheng uses internationally advanced scroll or piston compressors. The components of the electrical appliances and refrigeration system are all products of world-renowned brands.

2. Built-in stainless steel water tank, high-performance, high-flow special pump;

3. The bottom of the fuselage is equipped with swivel casters, which is flexible and easy to move.

4. Over 50 kW, there are dual refrigeration circuits. Even if the main circuit fails, other circuits can operate as usual.

5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.

model JSFL-02 JSFL-03 JSFL-05 JSFL-08 JSFL-10 JSFL-15 JSFL-20 JSFL-25 JSFL-30 JSFL-40 JSFL-50
Cooling capacity(KW) 5.7 8.5 14 23 29 43 57 71 90 126 158
Number of compressors
1 2 1 2 2 3 2 2 2 4 4
Compressor power (HP) 2 3 5 8 10 15 20 25 30 40 50
Refrigerant model R22 / R404A / R407C / R410A/ R134AOptional
Evaporator type Copper tube coil type
Evaporator inlet diameter DN25 DN25 DN25 DN40 DN40 DN50 DN50 DN50 DN65 DN80 DN80
Condenser type Fin type
Number of cooling fans 1 2 2 2 2 2 2 2 3 4 4
Single fan power (KW) 0.18 0.18 0.18 0.25 0.25 0.45 0.78 0.78 0.78 0.78 1
Number of cold water
inlets (group)
1 1 1 1 1 1 1 1 1 1 1
Cold water inlet caliber DN25 DN25 DN25 DN40 DN40 DN50 DN50 DN50 DN65 DN80 DN80
Water tank capacity (L) 45 50 67 145 145 200 245 245 300 350 400
Pump power (KW) 0.37 0.37 0.4 0.75 0.75 1.5 1.5 2.2 2.2 3.75 3.75
Pump flow (L/MIN) 100 100 100 200 200 360 360 360 650 700 700
Pump head (M) 22 22 22 13 13 15 15 15 16 16 16
System power (V) AC380V/3P/50HZ
Control power (V) AC220V1P
Total machine power (KW) 2 2.8 4.5 7.3 8.8 13.7 18.1 19.0 27.1 36.9 45.3
Power cord specification (m) 4x4 4x4 4x6 4x10 4x16 4x25 4x35
Power cord length (M) Optional
Appearance size L x Wx H(mm) 76*52*100 123*50*112 140x57x122 150x70x145 160x73x145 185*88*162 196x83x176 196x83x176 245x95x195 260x200x110 260x200x110
Machine weight (Kg) 150 160 180 350 450 650 840 900 1050 1200 1500

Why choose Jiusheng?

Jiusheng has focused on the refrigeration industry for 20 years. We are committed to manufacturing various industrial chillers. After 20 years of development, Jiusheng can provide many different types of industrial chillers, such as air-cooled chillers, water-cooled chillers, high and low temperature Controlled chillers, screw chillers, open chillers, all customized chillers, and oil coolers are widely used in many industries all over the world. According to regular customer feedback, the quality of Jiusheng chillers is very good. Under normal operation, the lifecycle can be extended to more than 10 years.

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.

Applications onsite
