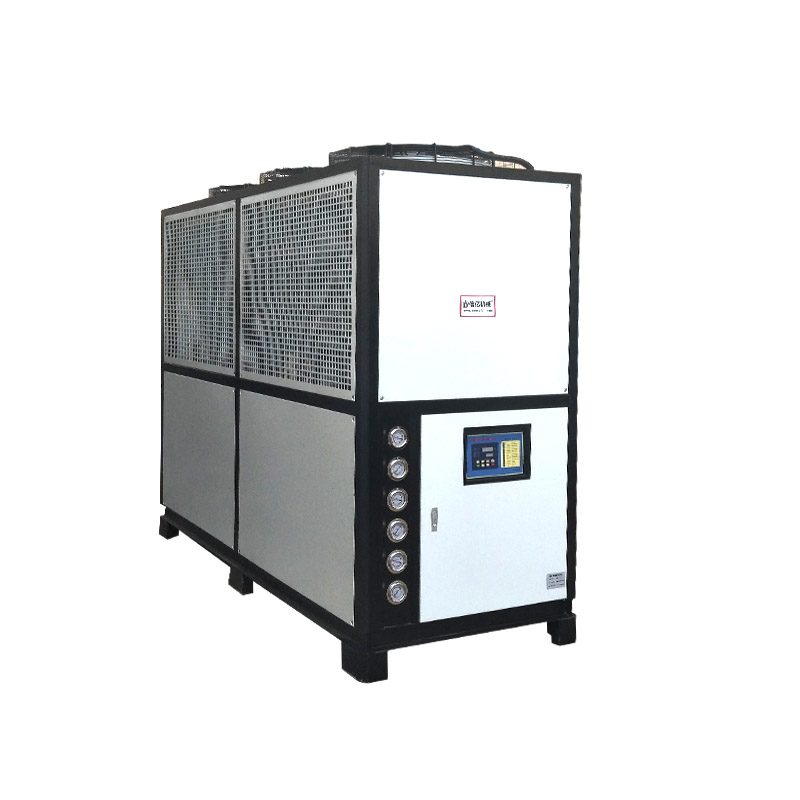

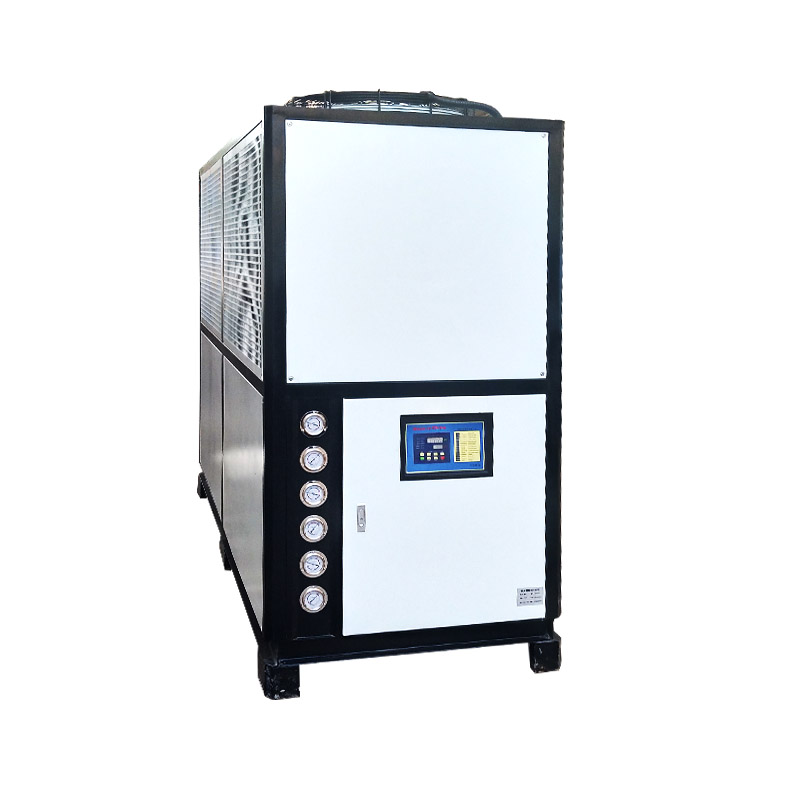

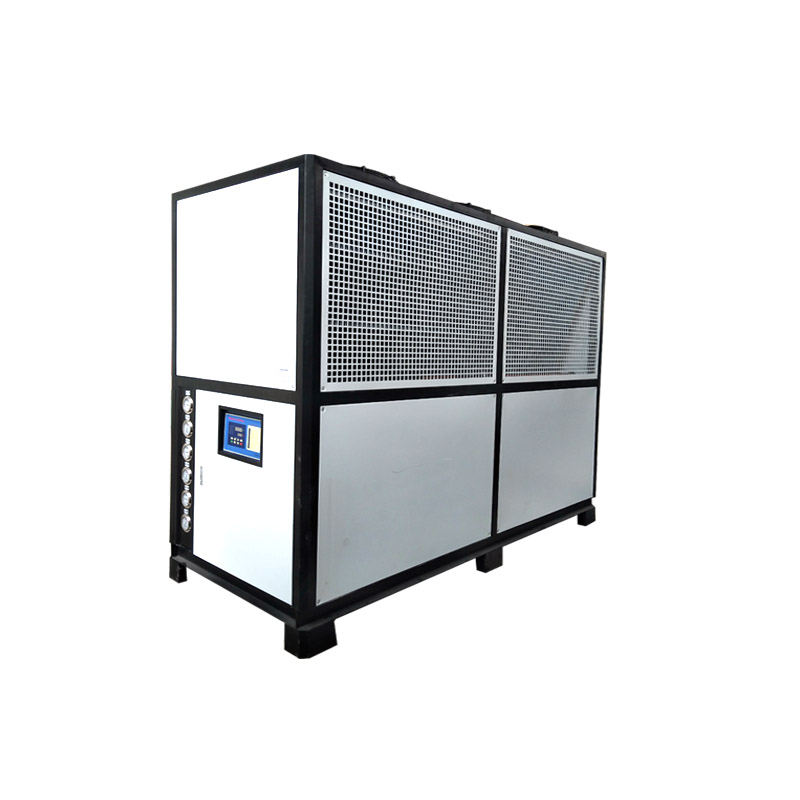

3PH-400V-50HZ 30HP Air Cooled Chiller
  • 3PH-400V-50HZ 30HP Air Cooled Chiller - 0 3PH-400V-50HZ 30HP Air Cooled Chiller - 0
  • 3PH-400V-50HZ 30HP Air Cooled Chiller - 1 3PH-400V-50HZ 30HP Air Cooled Chiller - 1
  • 3PH-400V-50HZ 30HP Air Cooled Chiller - 2 3PH-400V-50HZ 30HP Air Cooled Chiller - 2

3PH-400V-50HZ 30HP Air Cooled Chiller

China Easy-maintainable 3PH-400V-50HZ 30hp Air Cooled Chiller with 12 months Warranty Suppliers.This is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 30HP horsepower chiller.

Model:JSFL-30-C

Send Inquiry

Product Description

3PH-400V-50HZ 30hp Air Cooled  Chiller


Introduction

This is a 3PH-400V-50HZ 30HP air cooled chiller. Large box-type chiller with a cooling capacity of 90KW (77400Kcal/hr). Widely used in every industry: large injection molding machine mold cooling, optical coating cooling, glycol cooling, electroplating oxidation tank cooling, etc...
The machine runs continuously for 8760 hours without failure, and is guaranteed for 12 months, we provide free technical guide services for more than 10 years. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.





Model: JSFL-30-C

Brand: Jiusheng

Voltage: 3PH-400V-50HZ
Compressor power: 30HP/22.5KW
Temperature control range: 5-35℃
Pump power: 2.2W
Pump flow: 650L/MIN
Pump head: 16M
Cooling capacity: 90KW/hr (77400Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)


Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing


Features

1. High-precision temperature control and high-speed cooling efficiency; energy-saving and environmentally friendly operation.

2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. Built-in stainless steel water tank, high-performance, high-flow special pump;

4. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

5. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

6. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.


Parameters

Model # JSFL-30-C
Nominal
Cooling Capacity
kW 90
kCal/h 77400
BTU 307223
Power Supply 3PH-400V-50HZ
Total Power Input kW 26.59
Operation Current A 42
Compressor Brand Copeland
Type Full-hermetic scroll
Power inputkW 7.35 * 3PC
Cooling Fan Type External rotor axial fan
Power (kW) 0.78 * 3PC
Pump Power(kW) 2.2
Flow rate (m³/h) 39
Pump head (m) 16
Condenser Type Aluminum fin & Copper tube
Evaporator Type Copper coil
Water Tank Material SUS Stainless steel
Volume (L) 300
Pipe fitting ø Medium Outlet DN65
ø Medium Inlet DN65
Electrical AC Contactor Schneider
Cooling Condition Ambient Temp. 5 - 45
Chilled Water Temp Range 5 - 30
Temp Accuracy ±1
Alarming System Abnormal Temperature, Phase reverse/missing, High/Low Pressure Fault, Compressor overload,  Compressor overheat, Pump overload, Medium low level, Short-circuit
Temperature Display Push-button digital display
Cooling medium Tap-water
Refrigerant R22
Measurement L*W*H (mm) 2450*950*1950
Net Weight Kg 1050

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.


Applications
