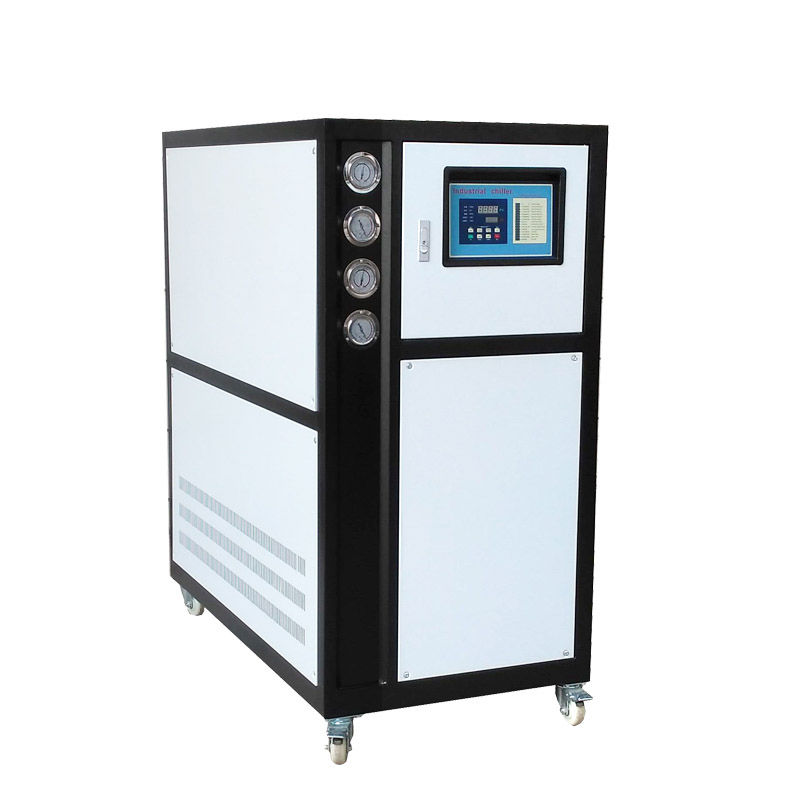

  • 3PH-220V-60HZ 8HP Water-cooled Box Chiller - 0 3PH-220V-60HZ 8HP Water-cooled Box Chiller - 0

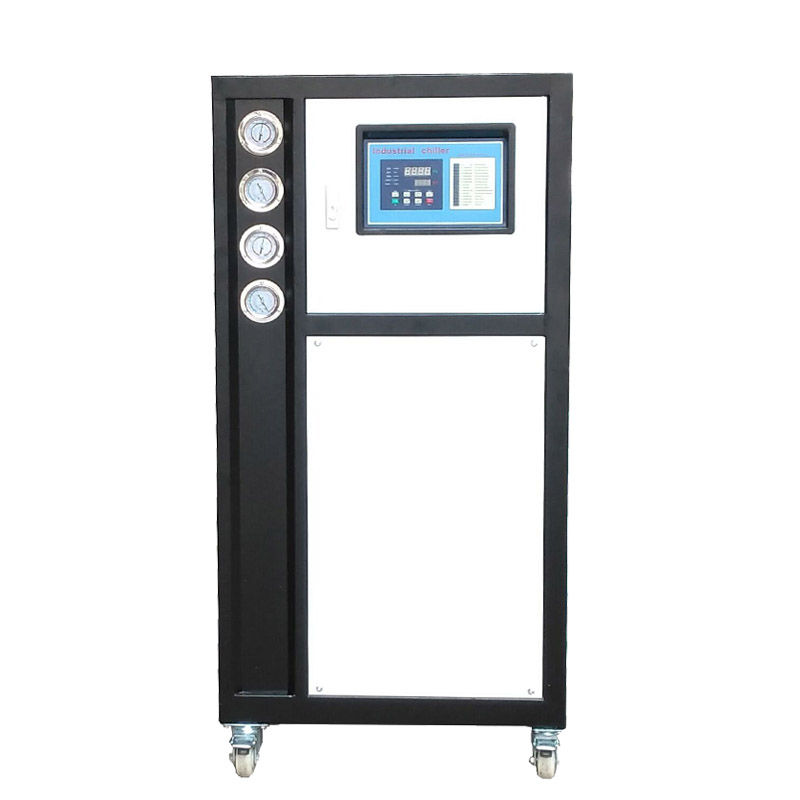

  • 3PH-220V-60HZ 8HP Water-cooled Box Chiller - 1 3PH-220V-60HZ 8HP Water-cooled Box Chiller - 1

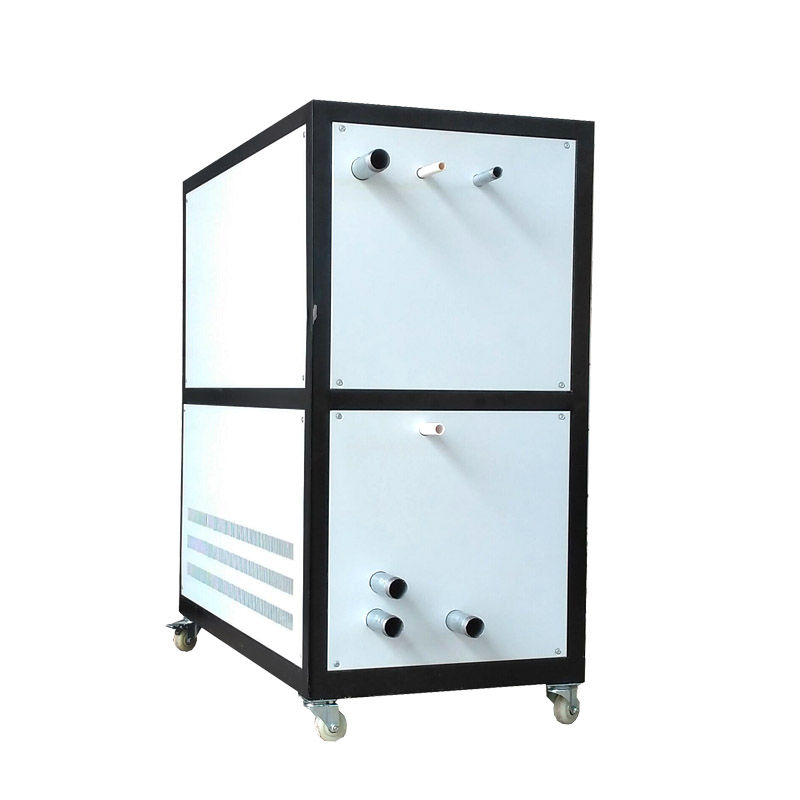

  • 3PH-220V-60HZ 8HP Water-cooled Box Chiller - 2 3PH-220V-60HZ 8HP Water-cooled Box Chiller - 2

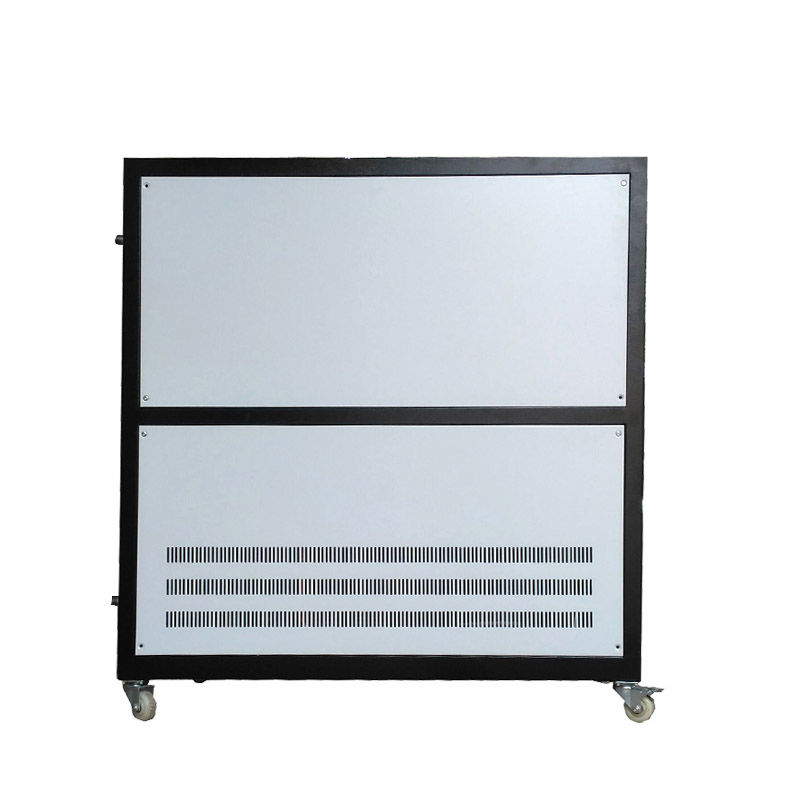

  • 3PH-220V-60HZ 8HP Water-cooled Box Chiller - 3 3PH-220V-60HZ 8HP Water-cooled Box Chiller - 3

3PH-220V-60HZ 8HP Water-cooled Box Chiller

China quality 3PH-220V-60HZ 8HP Water-cooled Box Chiller is a CE certified chiller, which is widely used in medical, food, biological, chemical, laser, metallurgy, mechanical equipment, electroplating, processing and other industries. Since the source of heat exchange is water, it is equipped with a special cooling tower, so it is called "water cooling". 3PH-220V-60HZ 8HP Water-cooled Box Chiller is your good choice.

Model:JSSL-08-B

Send Inquiry

Product Description

3PH-220V-60HZ 8hp Water-cooled Box Chiller


Introduction

This is a water-cooled chiller with 8HP power and a cooling capacity of 24KW / 20640Kcal/hr / 81926BTU.
It can be used in vertical injection molding machine cooling, CNC spindle cooling, LED solidification cooling, plastic mold cooling, cutting fluid cooling...
The unit can be customized into 8HP water-cooled environment friendly chiller with refrigerant  R407C\R410A\R404A\R134A.
The 8HP chiller carries the CE certification mark. It can be used when connected to the power supply and the cooling water tower, and the installation is convenient, and the cooling capacity is larger than that of the air-cooled chiller.
The chiller adopts fully enclosed scroll compression from international brands such as Panasonic, Copeland, and Daikin. Stable operation, low noise and fast cooling. The standard temperature can be controlled at 5-35°C.
This 8HP water-cooled chiller is affordable, standard R22 refrigerant has a large quantity in stock, and customized environment friendly refrigerants are delivered quickly.

The customized high-efficiency energy-saving system can save energy by 13% compared with ordinary chillers and reduce production costs. Create real value for customers to improve production efficiency.


Model: JSSL-08-B

Brand: Jiusheng

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing


Features


1. High-precision temperature control; high-speed cooling efficiency; energy-saving and environment friendly operation.

2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. High-performance, high-flow special pump;

4. The bottom of the fuselage is equipped with swivel casters, flexible and easy to move.

5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.



Parameters

Model # JSSL-08-B
Nominal
Cooling Capacity
kW 24
Kcal/h 20640
BTU 81926
Power Supply 3Ph-220V-60HZ
Total Power Input kW 6.63
Operation Current A 11.2
Compressor Brand Panasonic
Type Full-hermetic scroll
Power inputkW 2.94 * 2PC
Pump Power(kW) 0.37
Flow rate (m³/h) 12
Pump head (m) 13
Condenser Type Shell &  tube
Evaporator Type Copper coil / Shell & tube
Water Tank Material SUS Stainless steel
Volume (L) 140
Pipe fitting ø Medium Outlet DN40
ø Medium Inlet DN40
Temperature Display Push-button digital display
Electrical AC Contactor          Schneider
Cooling Condition Ambient Temp. 5℃ - 45
Chilled Water Temp Range 5 - 30
Temp Accuracy  ±1
Alarming System Abnormal Temperature, Phase reverse, High/Low Pressure Fault, Compressor overload,  Compressor overheat, Pump overload, Medium low level, Short-circuit
Cooling medium   Tap-water
Refrigerant R22 (optional: R404A/R407C/R410A/R134A)
Measurement L*W*H(mm)          1400*680*1420
Net Weight Kgs 430

Note:The data is for reference only, please consult customer service for precise parameters.



Why choose Jiusheng?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.


Applications
