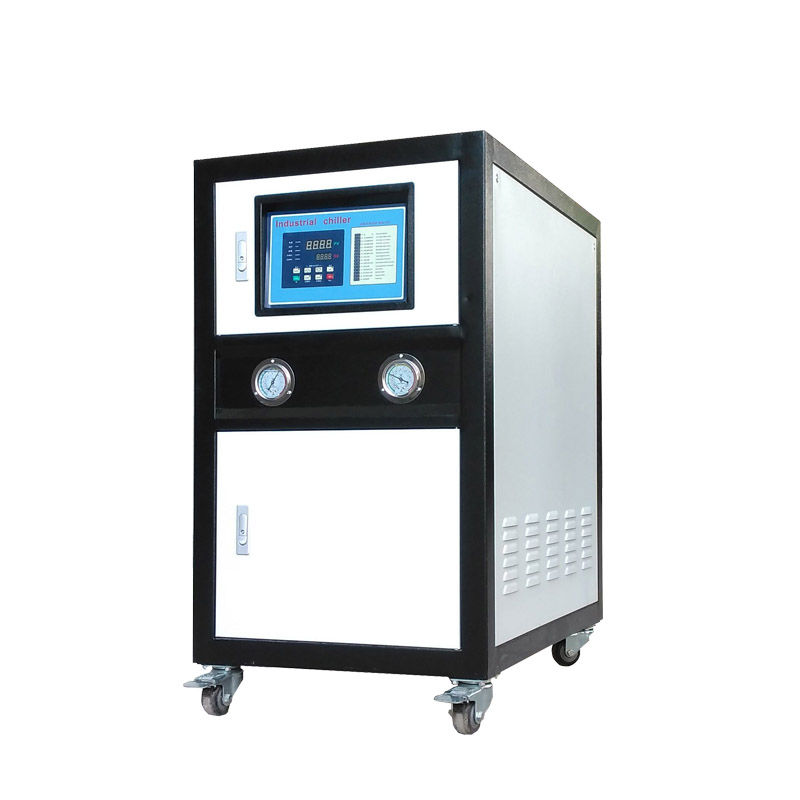

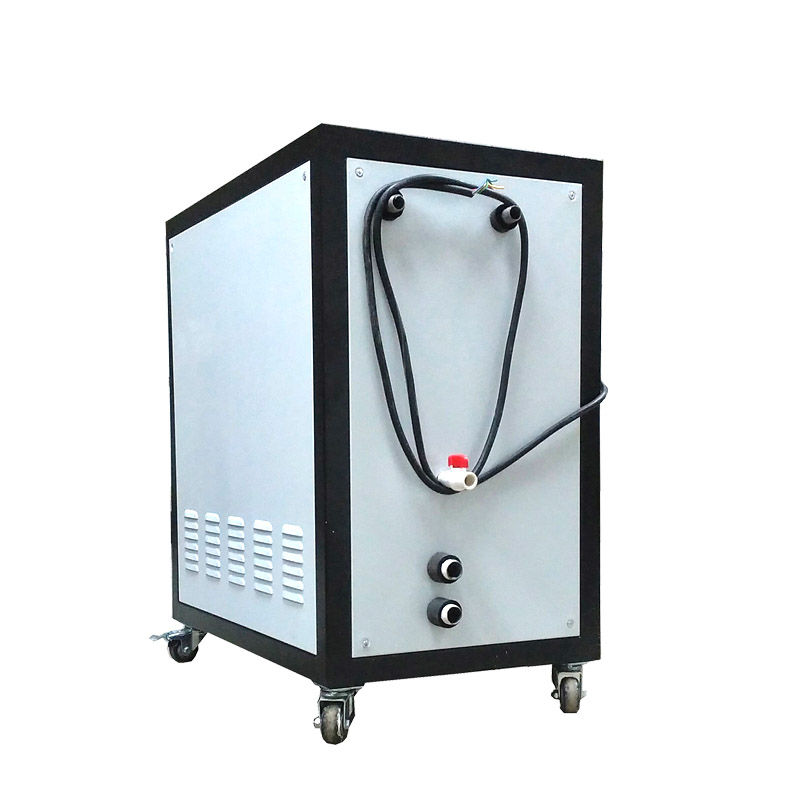

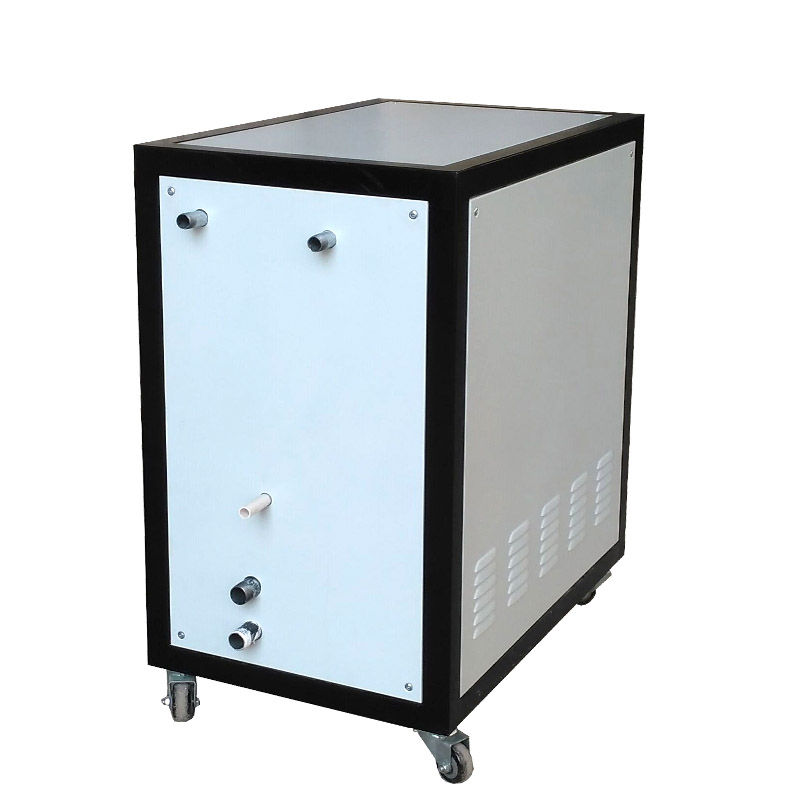

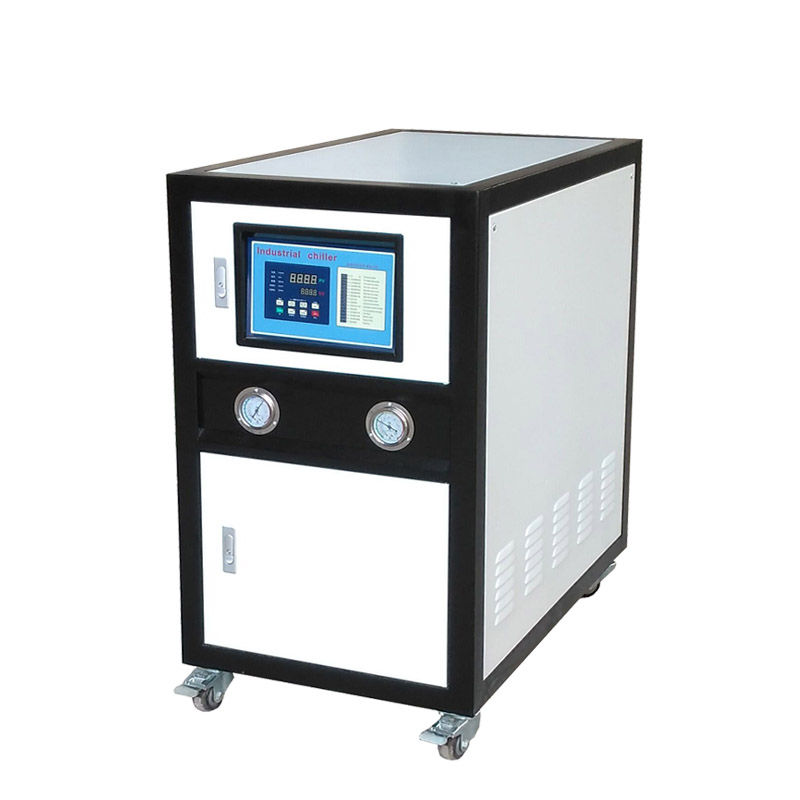

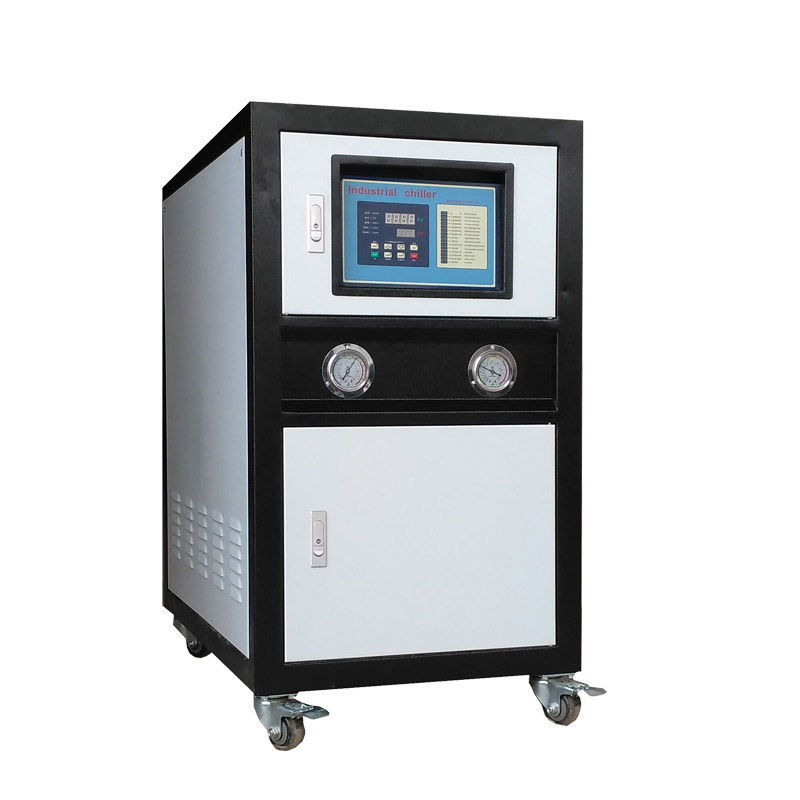

5HP Water-cooled Box Chiller

Durable hot sale 5HP Water-cooled Box Chiller is a CE certified chiller, which is widely used in medical, food, biological, chemical, laser, metallurgy, mechanical equipment, electroplating, processing and other industries. Since the source of heat exchange is water, it is equipped with a special cooling tower, so it is called "water cooling".5HP Water-cooled Box Chiller is your good choice.

Model:JSSL-05

Send Inquiry

Product Description

5hp Water-cooled Box Chiller


Introduction

The 5HP chiller carries the CE certification mark. It can be used when connected to the power supply and the cooling water tower, and the installation is convenient, and the cooling capacity is larger than that of the air-cooled chiller.

The chiller adopts fully enclosed scroll compression from international brands such as Panasonic, Copeland, and Daikin. Stable operation, low noise and fast cooling. The standard temperature can be controlled at 5-35°C.

This 5HP water-cooled chiller is affordable, standard R22 refrigerant is ready in stock, and customized environmentally friendly refrigerant has a fast delivery time.

The machine runs continuously for 4800 hours without failure, and the whole machine is guaranteed for 1 year. We provide free technical guide services for more than 10 years.

This chiller is favored by customers and is affordable. It is generally used for cooling plastic molds.

The customized high-efficiency energy-saving  system can save energy by 13% compared with ordinary chillers and reduce production costs. Create real value for customers to improve production efficiency.


Model: JSSL-05

Voltage: 3PH-380V 50HZ

Compressor power: 5HP/3.75KW

Temperature control range: 5-35℃

Pump power: 375W

Pump flow: 100L/MIN

Pump head: 22M

Cooling capacity: 15KW/hr (12900Kcal/hr)

Brand: Jiusheng

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing


Features

1. High-precision temperature control and high-speed cooling efficiency; energy-saving and environmentally friendly operation.

2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. Built-in stainless steel water tank, high-performance, high-flow special pump;

4. The bottom of the fuselage is equipped with swivel casters, flexible and easy to move.

5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), and the operation procedure is clear at a glance;

6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.


Parameters

Model JSSL-03 JSSL-05 JSSL-08 JSSL-10 JSSL-15 JSSL-20 JSSL-25 JSSL-30 JSSL-40 JSSL-50
Cooling capacity (W) kW 9 15 24 30 45 60 75 90 126 158
Kcal/h 7740 12900 20640 25800 38700 51600 64500 77400 108360 135880
Btu/h 30722 51204 81926 102408 153611 204815 256019 307223 430112 539346
Number of compressors 1 1 2 2 3 2 2 3 4 4
Compressor power (HP) 3 5 8 10 15 20 25 30 40 50
 refrigerant  R22 / R404A / R407C / R410A / R134A
Evaporator type Copper Coil / Shell and Tube
Evaporator
inlet / outlet Ø
DN25 DN25 DN40 DN40 DN50 DN50 DN65 DN65 DN80 DN80
Condenser type Shell and tube
Condenser heat dissipation Ø DN25 DN25 DN40 DN40 DN50 DN50 DN65 DN65 DN80 DN80
Cold water
inlet / outlet Ø
DN25 DN25 DN40 DN40 DN50 DN50 DN65 DN65 DN80 DN80
Water tank capacity (L) 50 60 140 140 200 220 250 270 360 500
Pump power (kW) 0.37 0.37 0.37 0.75 1.5 1.5 2.2 2.2 3.75 3.75
Pump flow (L/MIN) 100 100 200 200 360 360 650 650 700 700
Pump head (M) 22 22 13 13 15 15 16 16 16 16
System power (V) AC380V/3P/50HZ
Control power (V) AC220V1P
Total power input (kW) 2.8 4.1 6.75 8.25 12.75 16.5 21 24.8 33.8 41.3
Dimensions L x Wx H(mm) 97x55x102 97x55x102 140x68x142 140x68x142 160x67x152 185x70x150 185x70x150 220x80x152 185x80x170 200x80x170
Net weight (Kg) 140 160 430 460 540 720 780 880 1030 1450

Note:The data is for reference only, please consult customer service for precise parameters.
