15HP Water-cooled Box Chiller

15HP Water-cooled Box Chiller is a CE certified chiller, which is widely used in medical, food, biological, chemical, laser, metallurgy, mechanical equipment, electroplating, processing and other industries. Since the source of heat exchange is water, it is equipped with a special cooling tower, so it is called "water cooling".15HP Water-cooled Box Chiller is your good choice.

Model:JSSL-15

Send Inquiry

Product Description

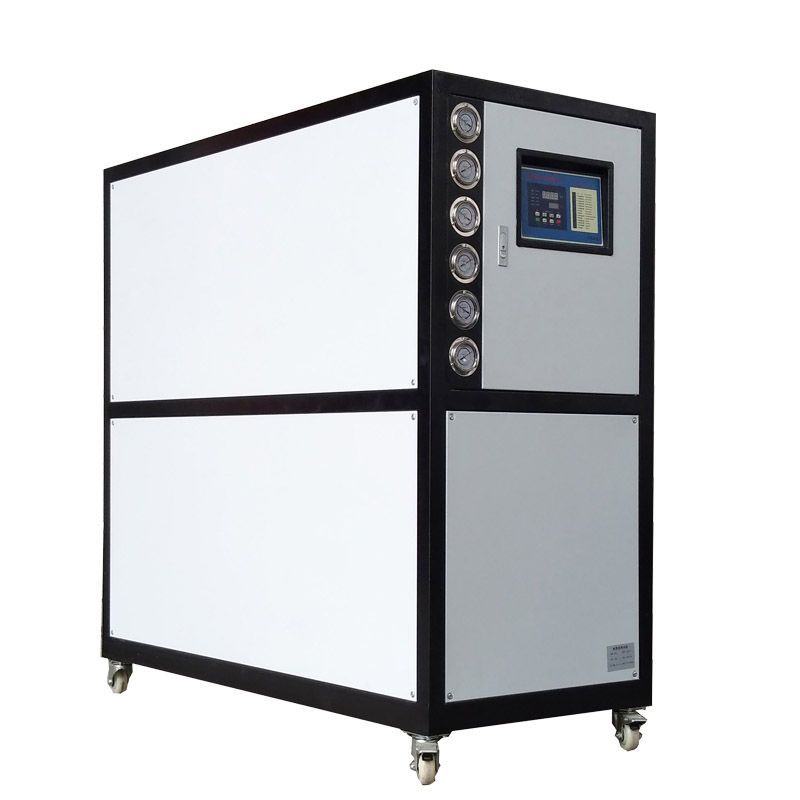

15hp Water-cooled Box Chiller


Introduction

This is a 15HP water-cooled chiller. The cooling capacity is 45KW (38700Kcal/hr). This model is a hot-selling model and is widely used in various industries: injection molding machine cooling, coating machine cold water, casting machine cooling, resistance welding machine cooling, vacuum coating machine cooling, etc...

The unit can use R407C\R410A\R404A\R134A and other environmentally friendly refrigerants, and customized into 15HP water-cooled environmentally friendly chillers.

The 15HP chiller carries the CE certification mark. It can be used when connected to a power supply and a cooling water tower, and it is easy to install, and the cooling capacity is larger than that of air-cooled chillers.

The chiller adopts fully closed scroll compressor from international brands such as Panasonic, Copeland, and Daikin. Stable operation, low noise and fast cooling. The standard temperature can be controlled at 5-35°C.

The machine runs continuously for 8760 hours without failure, and is guaranteed for 1 year,  we provide free technical guide services for more than 10 years. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.



Model: JSSL-15

Brand: Jiusheng

Voltage: 3PH-380V 50HZ (can be customized according to the needs of different regions)

Compressor power: 15HP/11KW

Temperature control range: 5-35℃

Pump power: 1.5W

Pump flow: 360L/MIN

Pump head: 15M

Cooling capacity: 45KW/hr (38700Kcal/hr)

Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing


Features

1. High-precision temperature control and high-speed cooling efficiency,  energy-saving and environmentally friendly operation.

2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. Built-in stainless steel water tank, high-performance, high-flow special pump;

4. The bottom of the fuselage is equipped with swivel casters, flexible and easy to move.

5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), and the operation procedure is clear at a glance;

6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.




Parameters

Model JSSL-03 JSSL-05 JSSL-08 JSSL-10 JSSL-15 JSSL-20 JSSL-25 JSSL-30 JSSL-40 JSSL-50
Cooling capacity (W) kW 9 15 24 30 45 60 75 90 126 158
Kcal/h 7740 12900 20640 25800 38700 51600 64500 77400 108360 135880
Btu/h 30722 51204 81926 102408 153611 204815 256019 307223 430112 539346
Number of compressors 1 1 2 2 3 2 2 3 4 4
Compressor power (HP) 3 5 8 10 15 20 25 30 40 50
 refrigerant  R22 / R404A / R407C / R410A / R134A
Evaporator type Copper Coil / Shell and Tube
Evaporator
inlet / outlet Ø
DN25 DN25 DN40 DN40 DN50 DN50 DN65 DN65 DN80 DN80
Condenser type Shell and tube
Condenser heat dissipation Ø DN25 DN25 DN40 DN40 DN50 DN50 DN65 DN65 DN80 DN80
Cold water
inlet / outlet Ø
DN25 DN25 DN40 DN40 DN50 DN50 DN65 DN65 DN80 DN80
Water tank capacity (L) 50 60 140 140 200 220 250 270 360 500
Pump power (kW) 0.37 0.37 0.37 0.75 1.5 1.5 2.2 2.2 3.75 3.75
Pump flow (L/MIN) 100 100 200 200 360 360 650 650 700 700
Pump head (M) 22 22 13 13 15 15 16 16 16 16
System power (V) AC380V/3PH/50HZ
Control power (V) AC220V1P
Total power input (kW) 2.8 4.1 6.75 8.25 12.75 16.5 21 24.8 33.8 41.3
Dimensions L x Wx H(mm) 97x55x 102 97x55x102 140x68x142 140x68x142 160x67x152 185x70x150 185x70x150 220x80x152 185x80x170 200x80x170
Net weight (Kg) 140 160 430 460 540 720 780 880 1030 1450

Note:The data is for reference only, please consult customer service for precise parameters.



Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.


Applications
