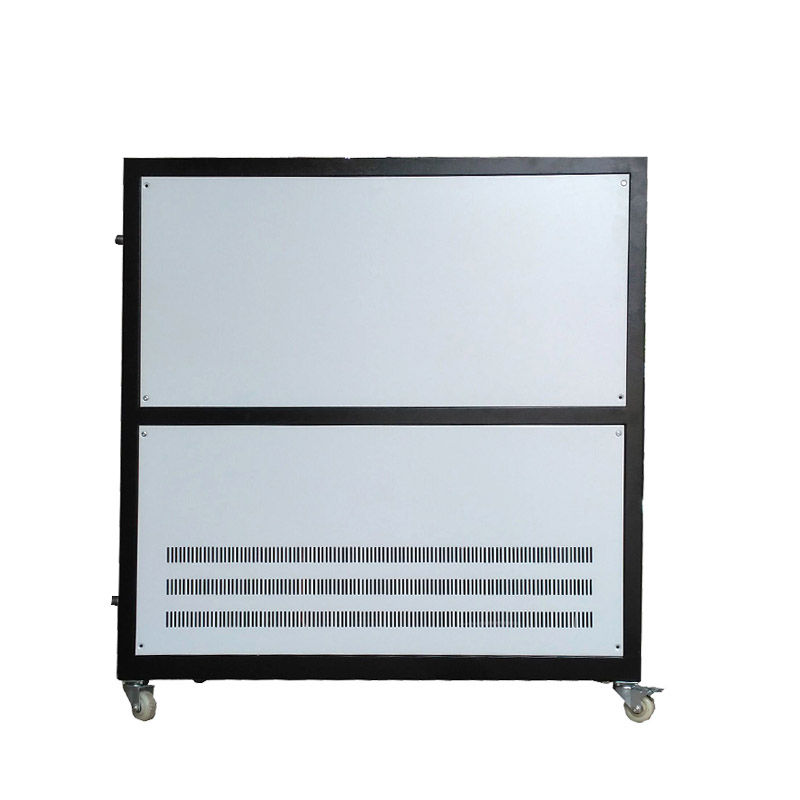

8hp Water-cooled Box Chiller
This is an 8HP water-cooled chiller. With a cooling capacity of 24KW (20640Kcal/hr), this model is suitable for food industry cooling, plastic granulator cooling, liquid mixing tank cooling, etc...
The unit can use R407C\R410A\R404A\R134A and other environmentally friendly refrigerants, and customized into 8HP water-cooled environmentally friendly chillers.
The 8HP chiller carries the CE certification mark. It can be used when connected to the power supply and the cooling water tower, and the installation is convenient, and the cooling capacity is larger than that of the air-cooled chiller.
The chiller adopts fully enclosed scroll compressor from international brands such as Panasonic, Copeland, and Daikin. Stable operation, low noise and fast cooling. The standard temperature can be controlled at 5-35°C.
The machine runs continuously for 8760 hours without failure, the whole machine is guaranteed for 1 year, and we provide free technical guide services for more than 10 years. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.
Voltage: 3PH-380V 50HZ
Compressor power: 8HP/6KW
Temperature control range: 5-35℃
Pump power: 750W
Pump flow: 200L/MIN
Pump head: 13M
Cooling capacity: 24KW/hr (20640Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)
Minimum order quantity: 1 set
Payment method: wire transfer, EXW, FOB/negotiation
Place of Origin: Dongguan City, Guangdong Province, China
Delivery time: 10-20 days/negotiation
Service: OEM / ODM
Supply Ability: 1000PCS/month
Packing: plywood packing
1. High-precision temperature control and high-speed cooling efficiency, energy-saving and environmentally friendly operation.
2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.
3. Built-in stainless steel water tank, high-performance, high-flow special pump;
4. The bottom of the fuselage is equipped with swivel casters, flexible and easy to move.
5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), and the operation procedure is clear at a glance;
6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.
7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.
|Cooling capacity (W)||kW||9||15||24||30||45||60||75||90||126||158|
|Number of compressors||1||1||2||2||3||2||2||3||4||4|
|Compressor power (HP)||3||5||8||10||15||20||25||30||40||50|
|refrigerant||R22 / R404A / R407C / R410A / R134A|
|Evaporator type||Copper Coil / Shell and Tube|
inlet / outlet Ø
|Condenser type||Shell and tube|
|Condenser heat dissipation Ø||DN25||DN25||DN40||DN40||DN50||DN50||DN65||DN65||DN80||DN80|
inlet / outlet Ø
|Water tank capacity (L)||50||60||140||140||200||220||250||270||360||500|
|Pump power (kW)||0.37||0.37||0.37||0.75||1.5||1.5||2.2||2.2||3.75||3.75|
|Pump flow (L/MIN)||100||100||200||200||360||360||650||650||700||700|
|Pump head (M)||22||22||13||13||15||15||16||16||16||16|
|System power (V)||AC380V/3P/50HZ|
|Control power (V)||AC220V1P|
|Total power input (kW)||2.8||4.1||6.75||8.25||12.75||16.5||21||24.8||33.8||41.3|
|Dimensions L x Wx H(mm)||97x55x 102||97x55x102||140x68x142||140x68x142||160x67x152||185x70x150||185x70x150||220x80x152||185x80x170||200x80x170|
|Net weight (Kg)||140||160||430||460||540||720||780||880||1030||1450|
Note:The data is for reference only, please consult customer service for precise parameters.
