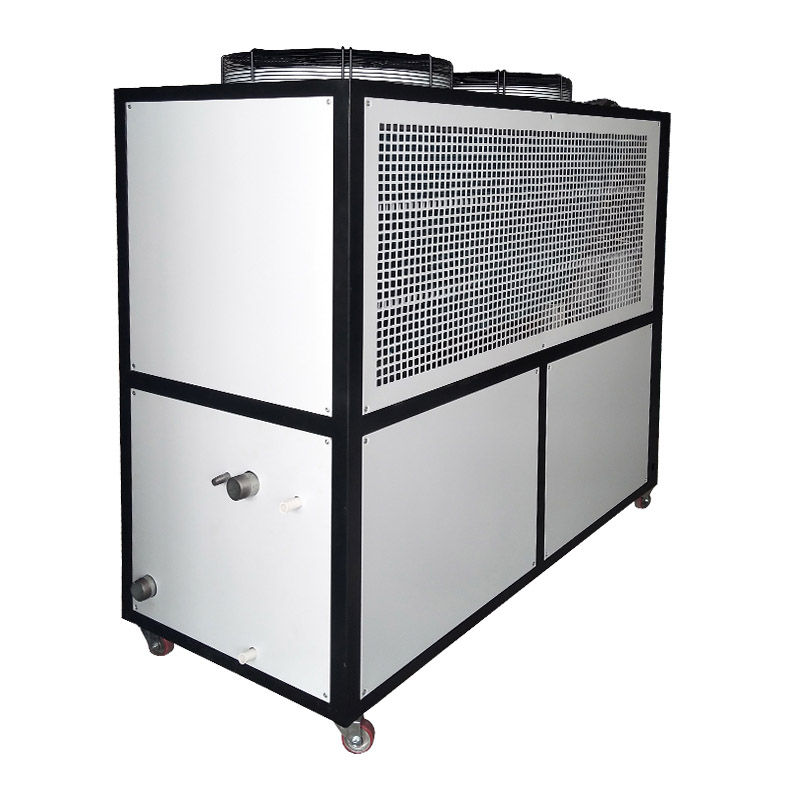

  • 3PH-220V-60-HZ 20HP Air-cooled Box Chiller - 0 3PH-220V-60-HZ 20HP Air-cooled Box Chiller - 0

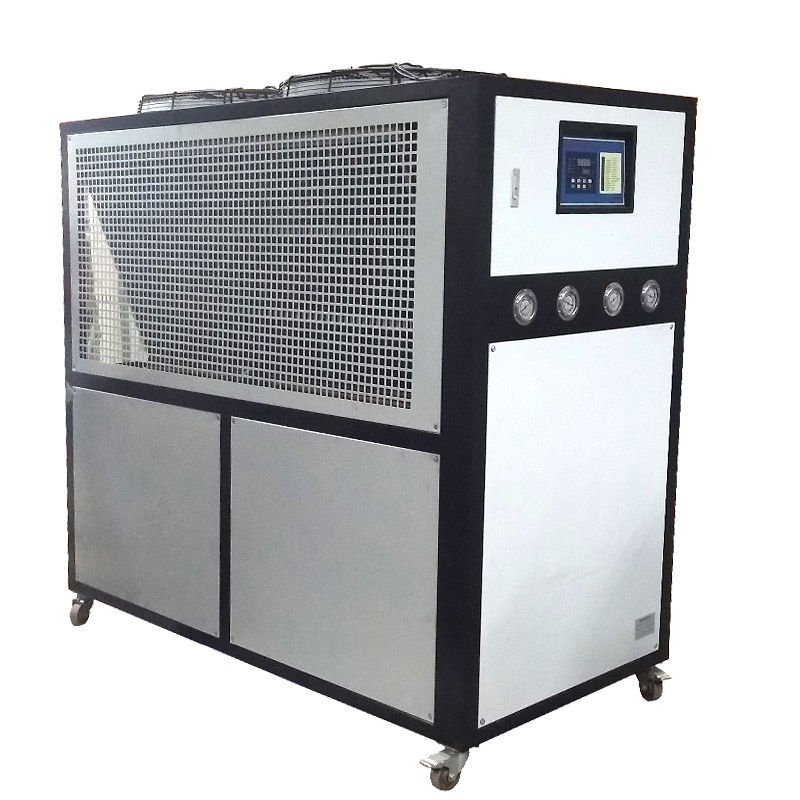

  • 3PH-220V-60-HZ 20HP Air-cooled Box Chiller - 1 3PH-220V-60-HZ 20HP Air-cooled Box Chiller - 1

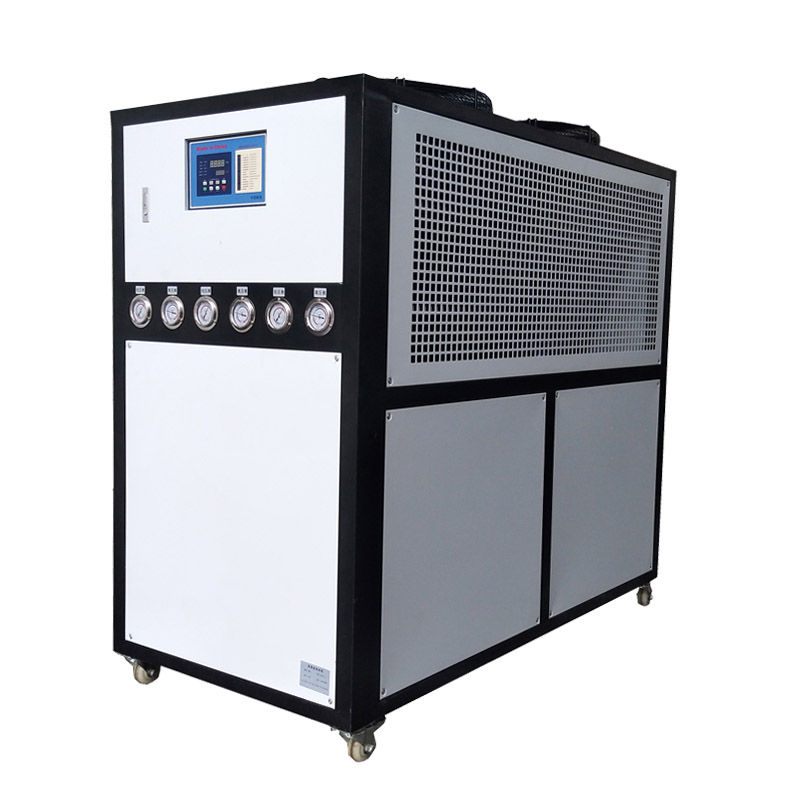

  • 3PH-220V-60-HZ 20HP Air-cooled Box Chiller - 2 3PH-220V-60-HZ 20HP Air-cooled Box Chiller - 2

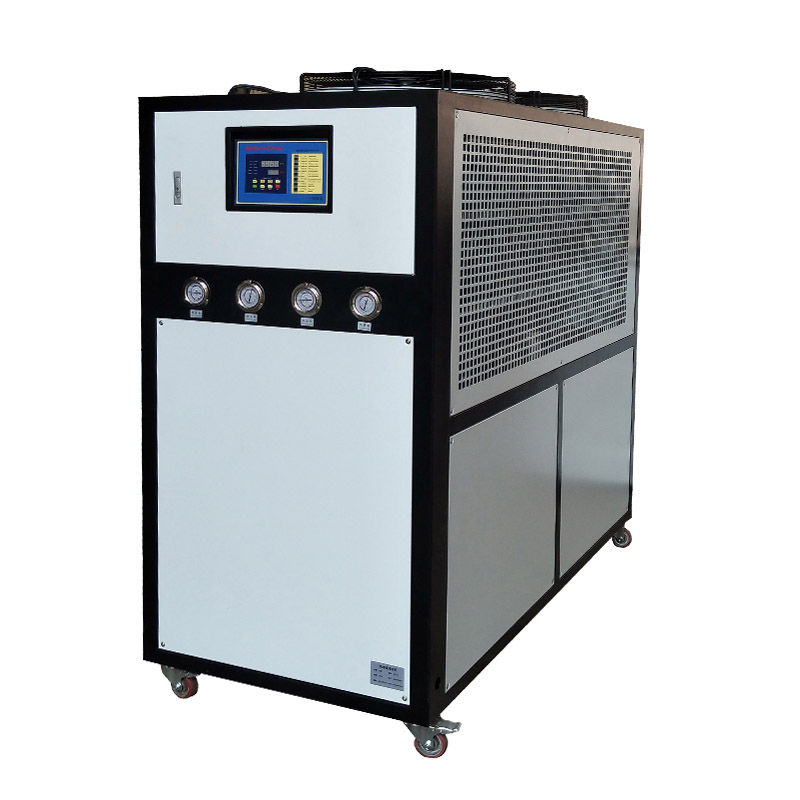

  • 3PH-220V-60-HZ 20HP Air-cooled Box Chiller - 3 3PH-220V-60-HZ 20HP Air-cooled Box Chiller - 3

3PH-220V-60-HZ 20HP Air-cooled Box Chiller

High quality 3PH-220V-60-HZ 20HP Air-cooled Box Chiller is offered by China manufacturer Jiusheng Machinery. Jiusheng 3PH-220V-60HZ 20hp Air-cooled Box Chiller is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 20HP horsepower chiller.

Model:JSFL-20-B

Send Inquiry

Product Description

3PH-220V-60HZ 20hp Air-cooled Box Chiller


Introduction

High quality 3PH-220V-60-HZ 20HP Air-cooled Box Chiller is offered by China manufacturer Jiusheng Machinery. This is a 20HP air-cooled chiller. The cooling capacity is 60kW (51600Kcal/hr). This model is a hot-selling model and is widely used in various industries: cooling of injection molding machines, cooling of blister machines, cooling of vacuum coating machines, etc...

The machine runs continuously for 8760 hours without failure and is guaranteed for 12 months, we provide free technical guide services for more than 10 years. The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.





Model: JSFL-20-B

Brand: Jiusheng

Voltage: 3PH-220V 60HZ
Compressor power: 20HP/14.7KW
Temperature control range: 5-35℃
Pump power: 1500W
Pump flow: 360L/MIN
Pump head: 15M
Cooling capacity: 60KW/hr (51600Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing


Features


1. Internationally advanced scroll or piston compressors. The components of the electrical appliances and refrigeration system are all products of world-renowned brands.

2. Built-in stainless steel water tank, high-performance, high-flow special pump;

3. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

4. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

5. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.


Parameters

Model # JSFL-20-B
Nominal
Cooling Capacity
kW 60
Kcal/h 51600
Power Supply 3P-220V-60HZ
Total Power Input kW 17.76
Operation Current A 28
Compressor Brand Panasonic/Daikin
Type Full-hermetic scroll
Power inputkW 7.35 * 2PC
Cooling Fan Type External rotor axial fan
Power (kW) 0.78 * 2PC
Pump Power(kW) 1.5
Flow rate (m³/h) 21.6
Pump head (m) 15
Condenser Type Aluminum fin & Copper tube
Evaporator Type Copper coil
Water Tank Material SUS Stainless steel
Volume (L) 245
Pipe fitting ø Medium Outlet DN50
ø Medium Inlet DN50
Electrical AC Contactor          Schneider, France
Cooling Condition Ambient Temp. 35
Chilled Water Temp Range 5 - 30
Temp Accuracy  ±1
Alarming System Abnormal Temperature, Phase reverse, High/Low Pressure Fault, Compressor overload,  Compressor overheat, Pump overload, Medium low level, Short-circuit
Temperature Display Push-button digital display
Cooling medium   Tap-water
Refrigerant R22
Measurement L*W*H(mm)          1960*830*1760
Net Weight Kgs 840

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.


Applications
