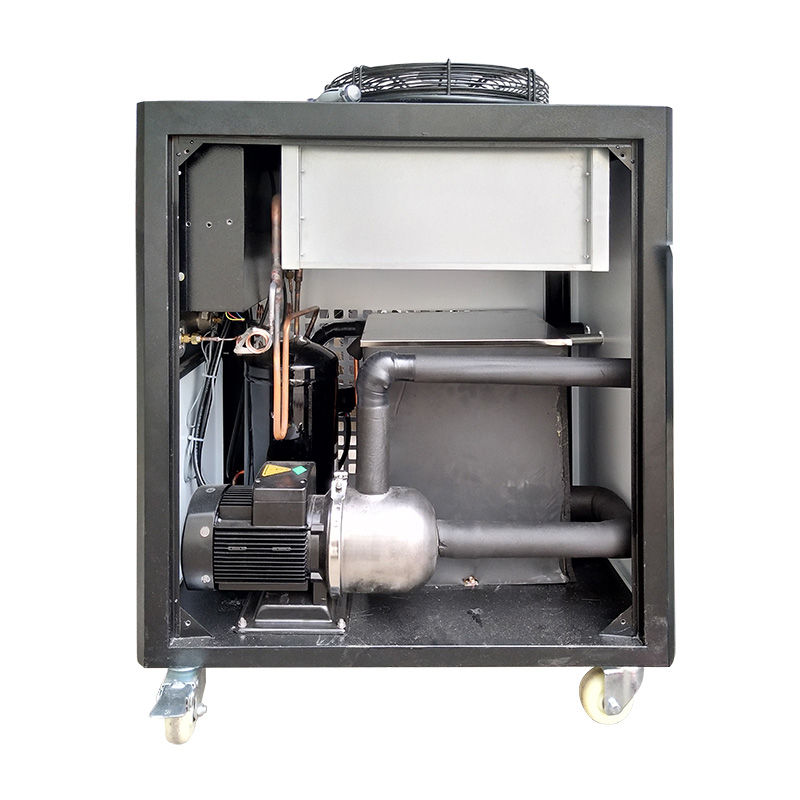

2HP Air-cooled Stainless Steel Chiller
2HP Air-cooled Stainless Steel Chiller is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 2HP horsepower chiller.

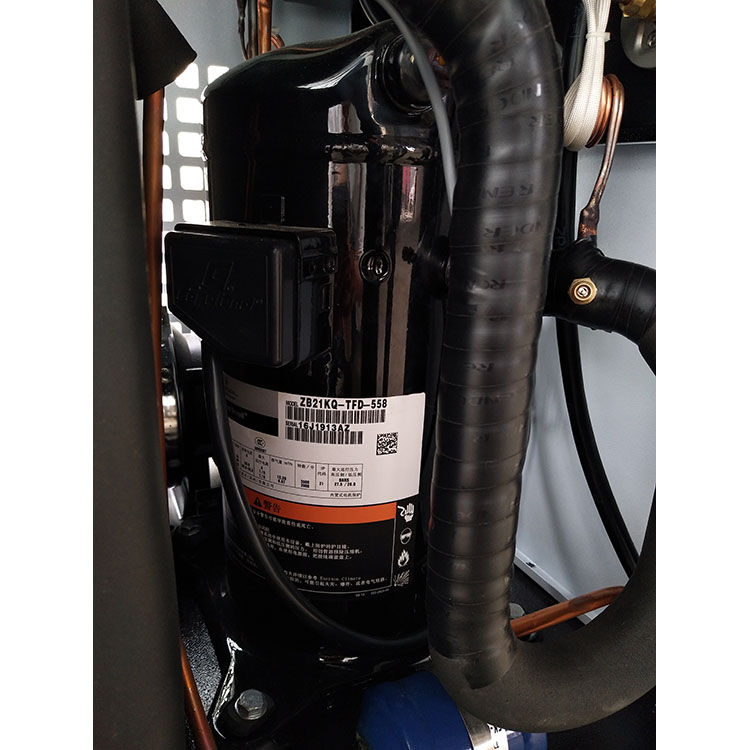

The unit adopts full hermetic scroll compressor from international brands such as Panasonic, Copeland, and Daikin. Machine, stable operation, low noise, fast cooling. Simple to use and easy to operate.
The standard temperature can be controlled from 5-35℃, and the non-standard type can be customized for ultra-low temperature -50℃.
This standard chiller is favored by many customers and is affordable. It is generally used for plastic mold cooling .
The whole machine is guaranteed for 1 year, and provided with more than 10 years of free technical guidance services. Customized high-efficiency and energy-saving systems can save energy by 13% and reduce production costs. Create real value for customers to improve production efficiency.
Power Specification: 2HP Air-cooled Stainless Steel Chiller
Brand: JiushengMinimum order quantity: 1 set
Packing: plywood packing
As a professional supplier of 2HP Air-cooled Stainless Steel Chiller , Jiusheng has 20 years of experience in the design and manufacture of industrial chillers. Our smart and special design help our customers save a lot of money. Our air-cooled chillers save a lot of electricity costs for our customers with high cooling efficiency and low-carbon operation.
2HP Air-cooled Stainless Steel Chillerproduct description:
7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.
Number of compressors
|Compressor power (HP)||2||3||5||8||10||15||20||25||30||40||50|
|Refrigerant model||R22 / R404A / R407C / R410A/ R134AOptional|
|Evaporator type||Copper tube coil type|
|Evaporator inlet diameter||DN25||DN25||DN25||DN40||DN40||DN50||DN50||DN50||DN65||DN80||DN80|
|Condenser type||Fin type|
|Number of cooling fans||1||2||2||2||2||2||2||2||3||4||4|
|Single fan power (KW)||0.18||0.18||0.18||0.25||0.25||0.45||0.78||0.78||0.78||0.78||1|
Number of cold water
|Cold water inlet caliber||DN25||DN25||DN25||DN40||DN40||DN50||DN50||DN50||DN65||DN80||DN80|
|Water tank capacity (L)||45||50||67||145||145||200||245||245||300||350||400|
|Pump power (KW)||0.37||0.37||0.4||0.75||0.75||1.5||1.5||2.2||2.2||3.75||3.75|
|Pump flow (L/MIN)||100||100||100||200||200||360||360||360||650||700||700|
|Pump head (M)||22||22||22||13||13||15||15||15||16||16||16|
|System power (V)||AC380V/3P/50HZ|
|Control power (V)||AC220V1P|
|Total machine power (KW)||2||2.8||4.5||7.3||8.8||13.7||18.1||19.0||27.1||36.9||45.3|
|Power cord specification (m)||4x4||4x4||4x6||4x10||4x16||4x25||4x35|
|Power cord length (M)||Optional|
|Appearance size L x Wx H(mm)||76*52*100||123*50*112||140x57x122||150x70x145||160x73x145||185*88*162||196x83x176||196x83x176||245x95x195||260x200x110||260x200x110|
|Machine weight (Kg)||150||160||180||350||450||650||840||900||1050||1200||1500|
Jiusheng has focused on the refrigeration industry for 20 years. We are committed to manufacturing various industrial chillers. After 20 years of development, Jiusheng can provide many different types of industrial chillers, such as air-cooled chillers, water-cooled chillers, high and low temperature Controlled chillers, screw chillers, open chillers, all customized chillers, and oil coolers are widely used in many industries all over the world. According to regular customer feedback, the quality of Jiusheng chillers is very good. Under normal operation, the lifecycle can be extended to more than 10 years.
Why buy a chiller from us?
E. Our industrial chillers have passed CE certification
Thank you for your patience! If you need to inquire about prices and technical issues, please call 13925748878 Miss Zhu，We will provide you with the best quality service!
