China 25HP Air-cooled Box Chiller for Beverage Processing Manufacturers and Suppliers

Product Description

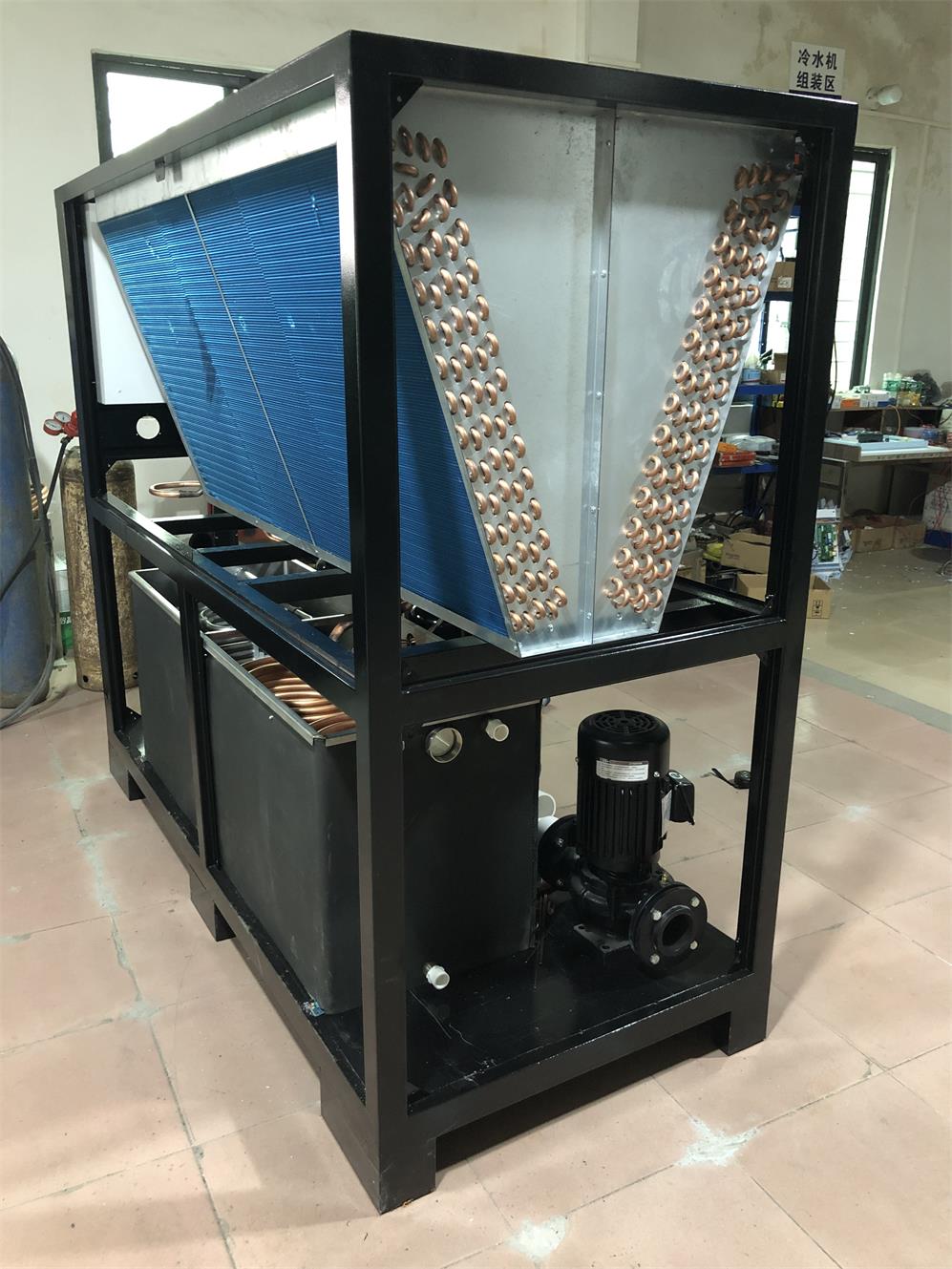

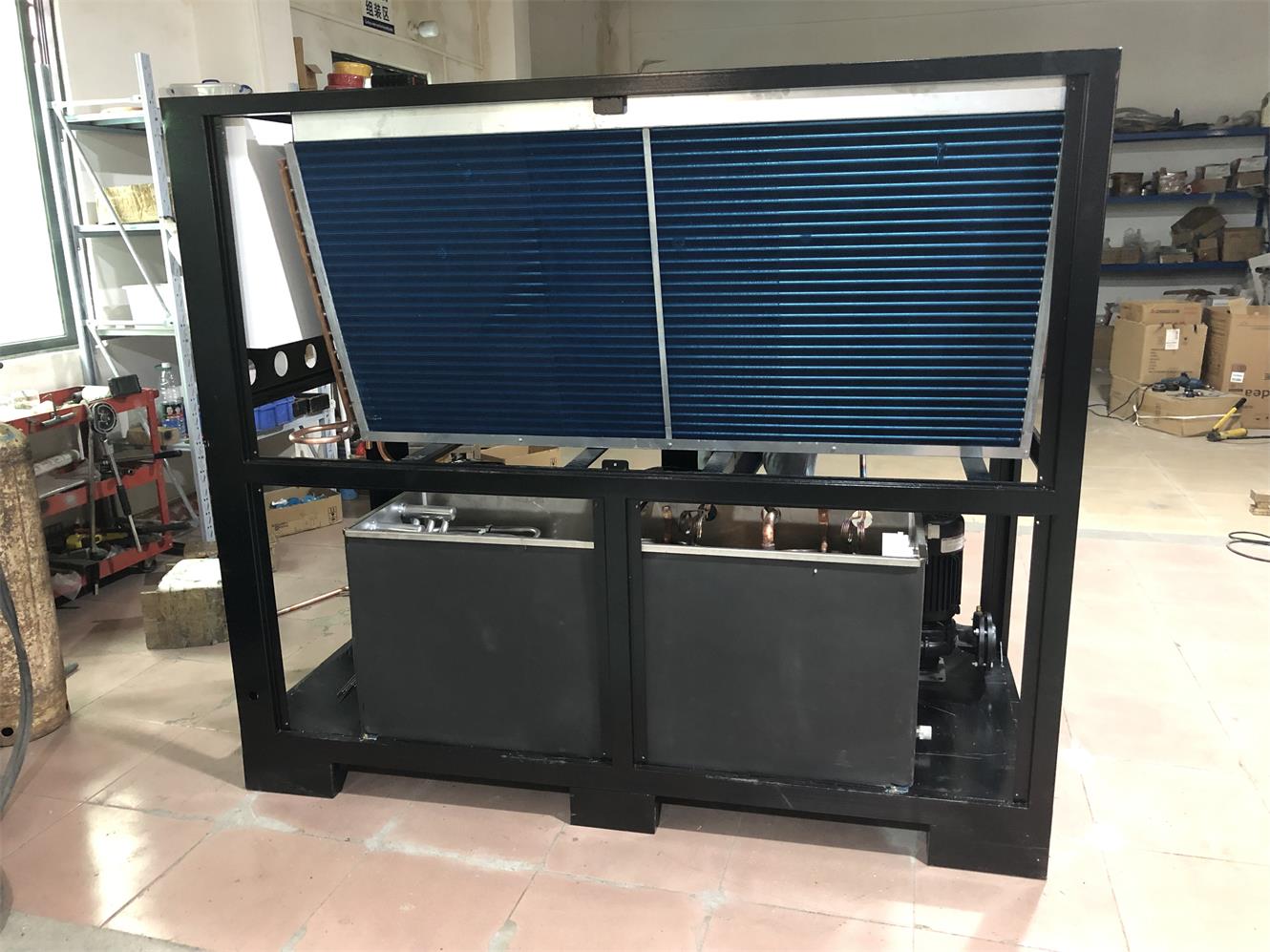

25HP Air-cooled Box Chiller for Beverage Processing

Introduction

This is a 25HP Air-cooled Box Chiller for Beverage Processing. A box-type chiller with a cooling capacity of 75KW (64500Kcal/hr). It is customized for beverage processing industry.
The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.

Model: JSFL-25

Brand: Jiusheng

Voltage: 3PH-380V-50HZ
Compressor power: 25HP/18.75KW
Temperature control range: 5-35℃
Pump power: 2.2W
Pump flow: 360L/MIN
Pump head: 15M
Cooling capacity: 75KW/hr (64500Kcal/hr)
Refrigerant: R22 (environmentally friendly refrigerant R407C/134A... can be customized)

Minimum order quantity: 1 set

Payment method: T/T, or by negotiation

Price: Negotiable

Place of Origin: Dongguan, Guangdong, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 500PCS/month

Packing: plywood packing

Features

1. High-precision temperature control and high-speed cooling efficiency； energy-saving and environmentally friendly operation.

2. World-renowned accessories: Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. Built-in stainless steel water tank, high-performance, high-flow special pump;

4. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

5. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

6. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.

Parameters

No.	Description
1	Air-cooled Chiller	Model No.	JSFL-25
2	Cooling Capacity	Kw	75
2	Cooling Capacity	kCal/h	64500
3	Power Supply	Volts	3PH-380V-50HZ
4	Total Power	Kw	22.5
5	Operation Current	A	35
6	Compressor	Brand	Copeland
		Type	Full hermetic Scroll
		Power Input（Kw）	9.4*2PCS
7	Cooling Fan	Brand	Maer
		Type	Axial Fan
		Power (Kw)	0.78*2PCS
8	Pump	Type	Centrifugal
		Power (Kw)	2.2
		Flow Rate(m³/H)	21.6
		Pump Head (m)	15
9	Condenser	Type	Aluminum Finn & Copper Tube
10	Evaporator	Type	Coiled
10	Evaporator	Material	Copper + Stainless Steel
11	Water Tank	Material	SUS Stainless Steel
11	Water Tank	Volume	245L
12	Pipe Fitting	Medium Outlet	DN50
12	Pipe Fitting	Medium Inlet	DN50
13	Temp. Display	Push-button Digital Display
	Electrical Device	Contactor	Schneider
		Temp. Range	5℃-30℃
		Accuracy	±1℃
14	Alarming System	Current overload, high/low voltage, phase reverse, phase missing, freezing, cooling water low level
14	Alarming System
15	Dimension	LWH (mm)	19608301760
16	Overall Weight	Kgs	900

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certification.

Applications
