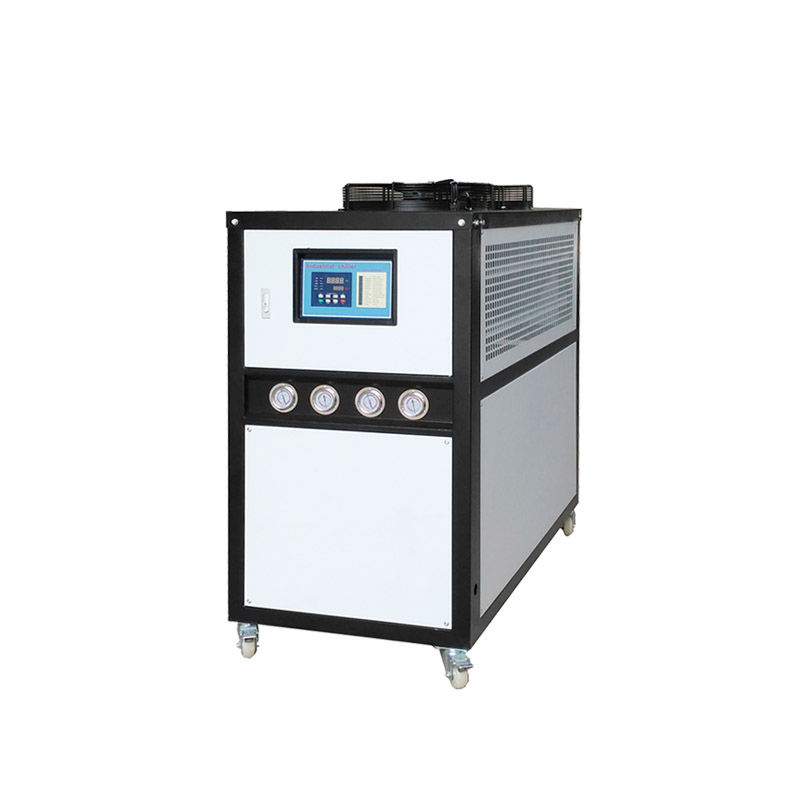

  • 3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller - 0 3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller - 0

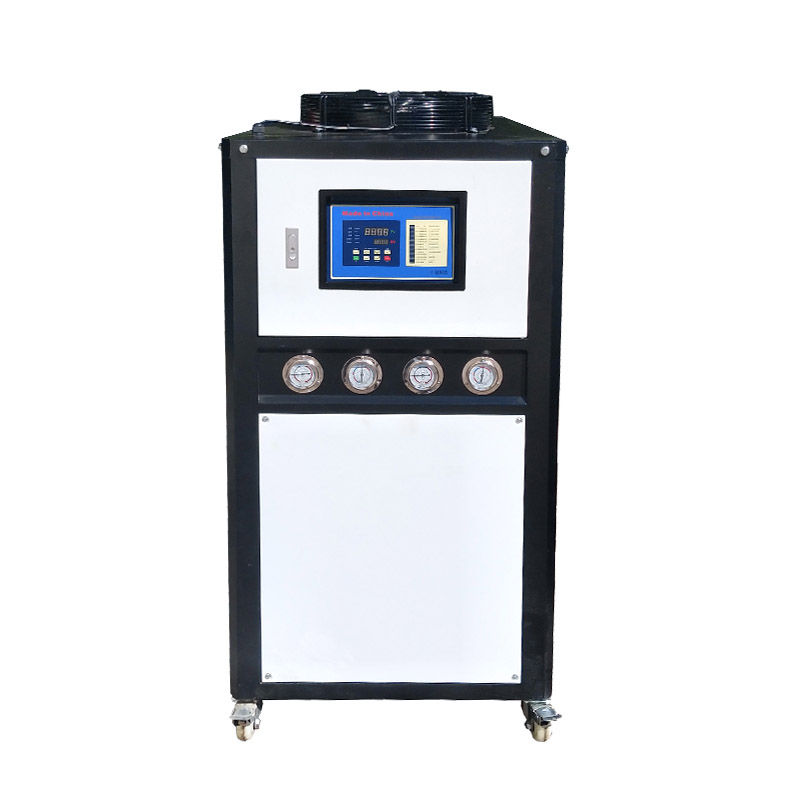

  • 3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller - 1 3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller - 1

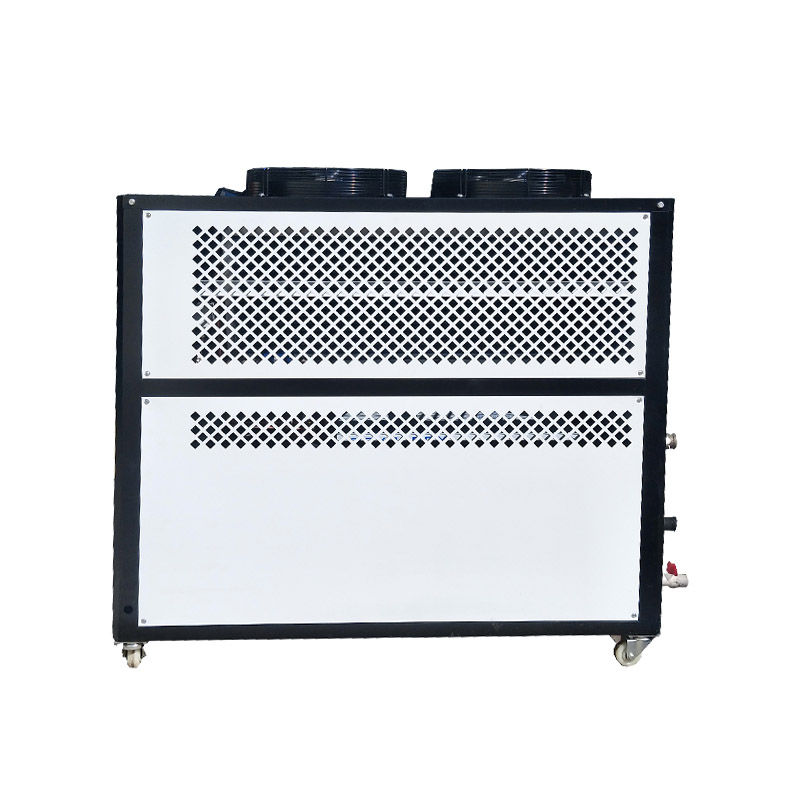

  • 3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller - 2 3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller - 2

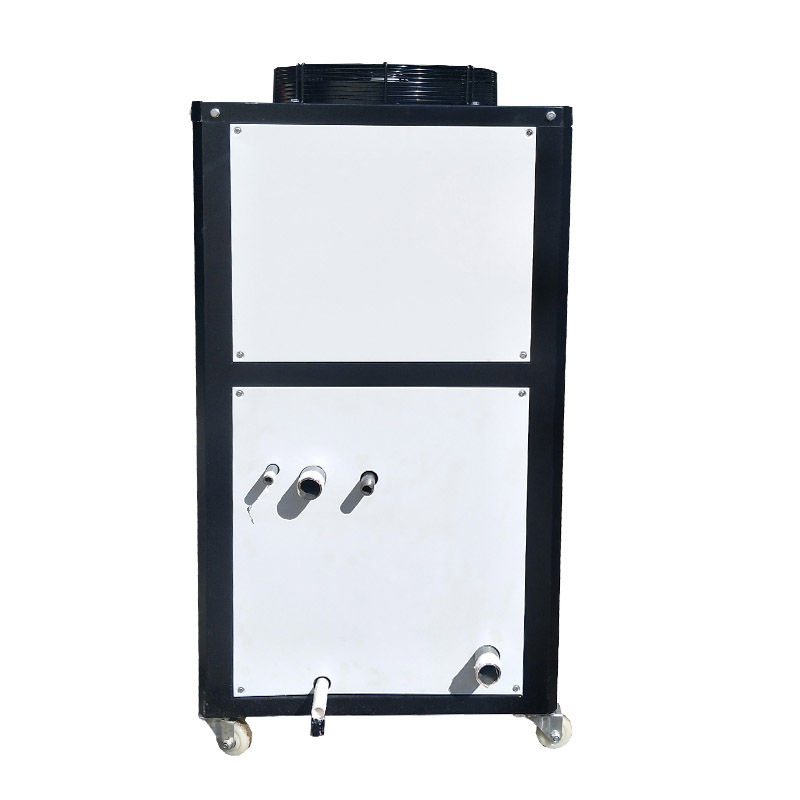

  • 3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller - 3 3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller - 3

3PH-460V-60HZ 8HP Air-cooled Shell And Tube Chiller

3PH-460V-60HZ 8hp Air-cooled Shell And Tube Chiller is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 8HP horsepower chiller.

Model:JSKG-08-A

Send Inquiry

Product Description

3PH-460V-60HZ 8hp Air-cooled Shell And Tube Chiller


Introduction

3PH-460V-60HZ 8hp Air-cooled Shell And Tube Chiller is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 8HP horsepower chiller. The unit adopts fully enclosed scroll compression from international brands such as Panasonic, Copeland, and Daikin. Machine, stable operation, low noise, fast cooling. Simple to use and easy to operate.

The standard temperature can be controlled from 5-35℃, and the non-standard type can be customized for ultra-low temperature -50℃.

The machine runs continuously for 4,800 hours without failure, and is guaranteed for 12 months, we provide more than 10 years of free technical guide services. Customized high-efficiency and energy-saving systems can save energy by 13% and reduce production costs. Create real value for customers to improve production efficiency.


Model: JSKG-08-A

Brand: Jiusheng

Minimum order quantity: 1 set

Payment method: wire transfer, EXW, FOB/negotiation

Price: Negotiable

Place of Origin: Dongguan City, Guangdong Province, China

Certificate: CE

Delivery time: 10-20 days/negotiation

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing


Features


1. High-precision temperature control; high-speed cooling efficiency; energy-saving and environment friendly operation.

2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. High-performance, high-flow special pump;

4. The bottom of the fuselage is equipped with swivel casters, flexible and easy to move.

5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.


Parameters

Model # JSKG-08-A
Nominal
Cooling Capacity
kW 24
Btu/h 81926
Kcal/h 20640
Power Supply 3PH-460V-60HZ
Total Power Input kW 7.13
Operation Current A 11.2
Compressor Brand Panasonic
Type Full-hermetic scroll
Power inputkW 2.94 * 2PC
Cooling Fan Type External rotor axial fan
Power (kW) 0.25 * 2PC
Pump Power(kW) 0.75
Flow rate (m³/h) 12
Pump head (m) 13
Condenser Type Aluminum fin & Copper tube
Evaporator Type Shell and Tube
Pipe fitting ø Medium Outlet DN40
ø Medium Inlet DN40
Temperature Display Push-button digital display
Electrical AC Contactor Schneider
Cooling Condition Ambient Temp. 5 - 35
Chilled Water Temp Range 5 - 30
Temp Accuracy ±1
Alarming System Abnormal Temperature, Phase reverse/missing, High/Low Pressure Fault, Compressor overload,  Compressor overheat, Pump overload, Medium low level, Short-circuit
Cooling medium Tap-water
Refrigerant R22 / R404A / R407C / R410A / R134A
Measurement L*W*H(mm) 1500*700*1450
Net Weight Kgs 284

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years;

B. Expert in industrial cooling solutions;

C. Many customized services can be provided for industrial chillers;

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service;

E. Our industrial chillers have passed CE certification.
