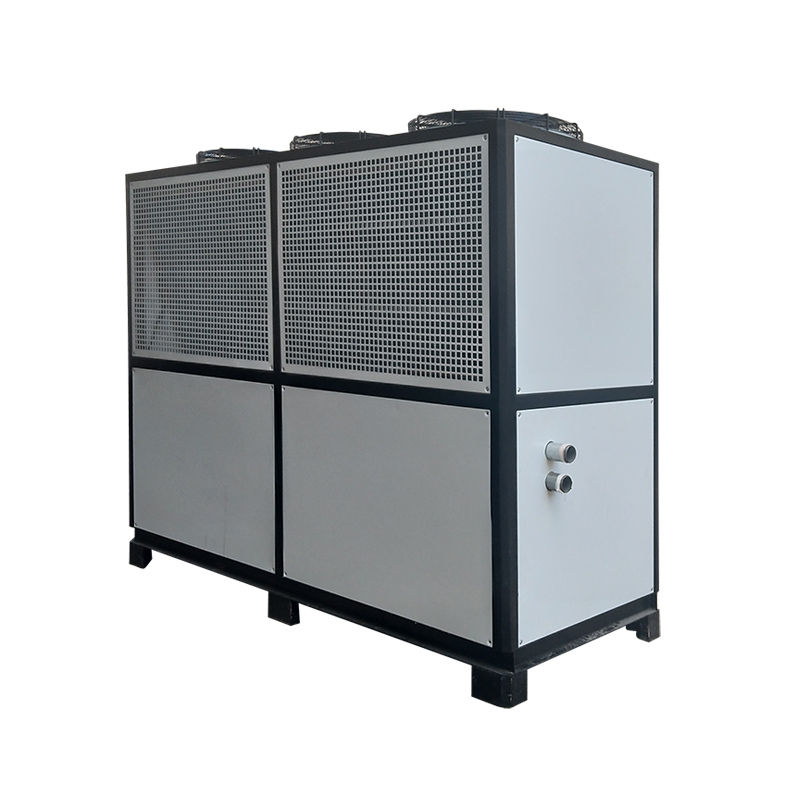

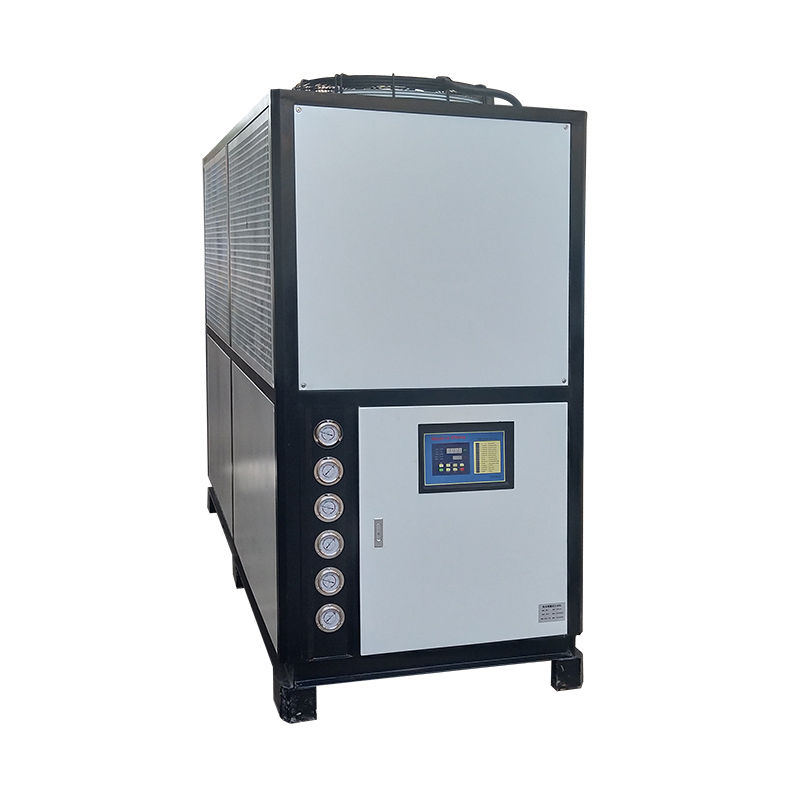

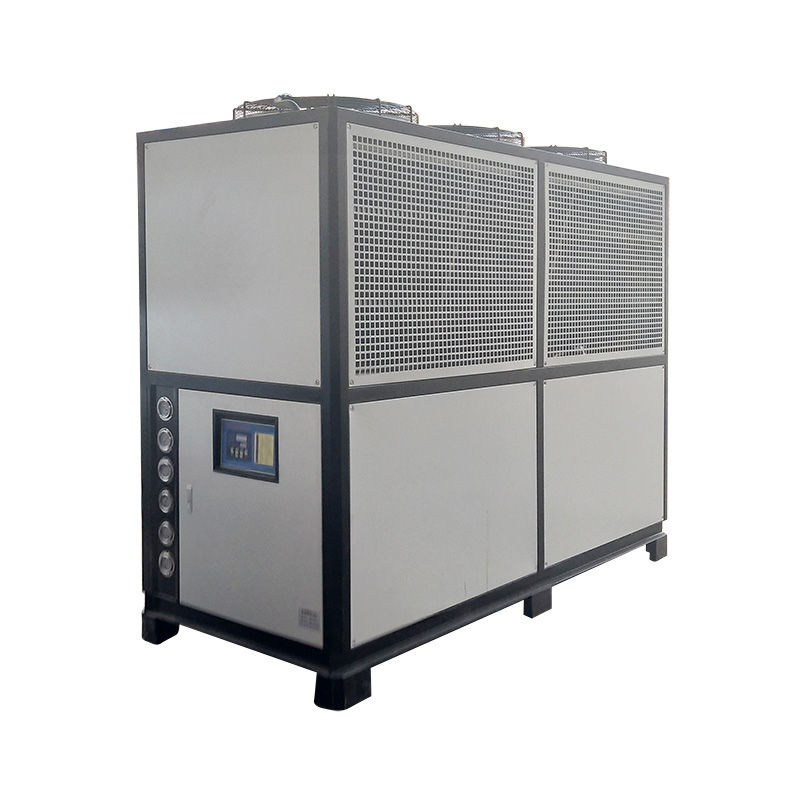

30HP Air-cooled plate-change chiller
30hp Air-cooled plate-change chiller is a CE certified chiller. It can be installed without installing a cooling tower, easy to install, move and quickly cool a 30HP horsepower refrigerator.
The equipment adopts fully enclosed scroll compression technology of international brands such as Panasonic, Copeland and Daikin. The whole machine has stable operation, low noise and fast cooling. Simple to use and easy to operate.
The standard temperature can be controlled between 5-35℃, and the non-standard type can be customized to ultra-low temperature -50℃.
This standard 30hp Air-cooled plate-change chiller is favored by many customers, and the price is reasonable. Usually used for electroplating, oxidation, pool cooling and other open water tanks.
We achieved pre-sale response speed within 10 minutes, sales response within 20 minutes, and after-sale response within 24 hours. The machine runs continuously for 4,800 hours without failure, and the whole machine is guaranteed for 1 year.
We provide free technical guidance services for more than 10 years.
The customized high-efficiency energy-saving power-saving system can save 13% of energy and reduce production costs. Create real value for customers and improve production efficiency.
Model: JSBH-30, power specification: 30HP air-cooled shell and tube
Minimum order quantity: 1 set
Payment method: wire transfer, EXW, FOB/negotiation
Place of Origin: Dongguan City, Guangdong Province, China
Delivery time: 10-20 days/negotiation
Service: OEM / ODM
Supply Ability: 1000PCS/month
Packing: plywood packing
1.30hp Air-cooled plate-change chiller, High-precision temperature control and high-speed cooling efficiency, and energy-saving and environmentally friendly operation
As a professional supplier of industrial chillers, jiusheng has 12 years of experience in the design and manufacture of industrial chillers. Our smart and special design help our customers save a lot of money. Our air-cooled chillers save a lot of electricity costs for our customers with high cooling efficiency and low-carbon operation.
2. 30hp Air-cooled plate-change chiller,Famous brand accessories in our industrial chillers
We use world-renowned accessories in our air-cooled industrial chillers. If used normally, our industrial chillers can be used for more than 10 years.

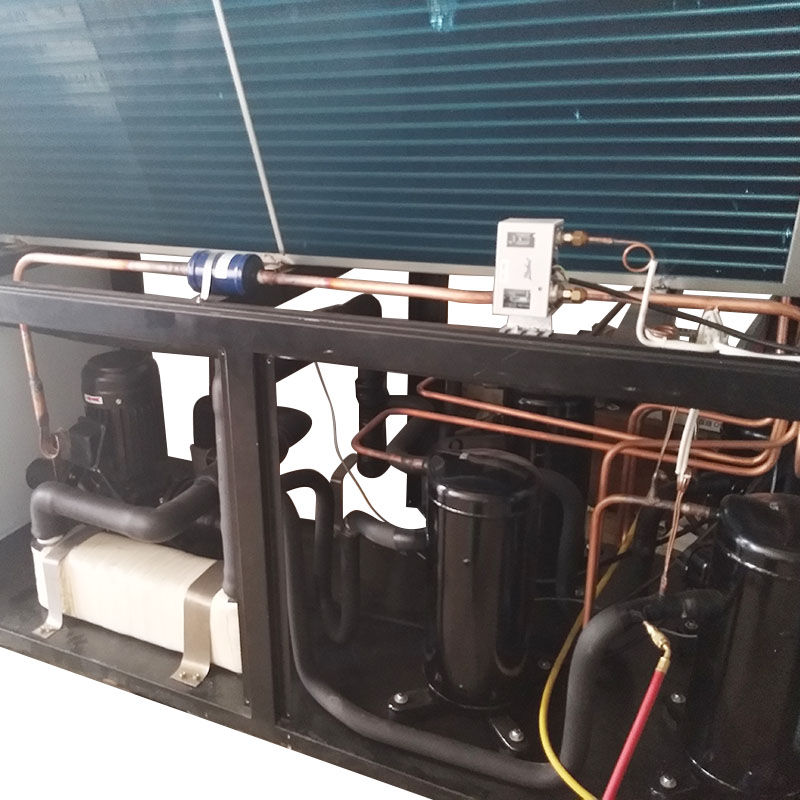

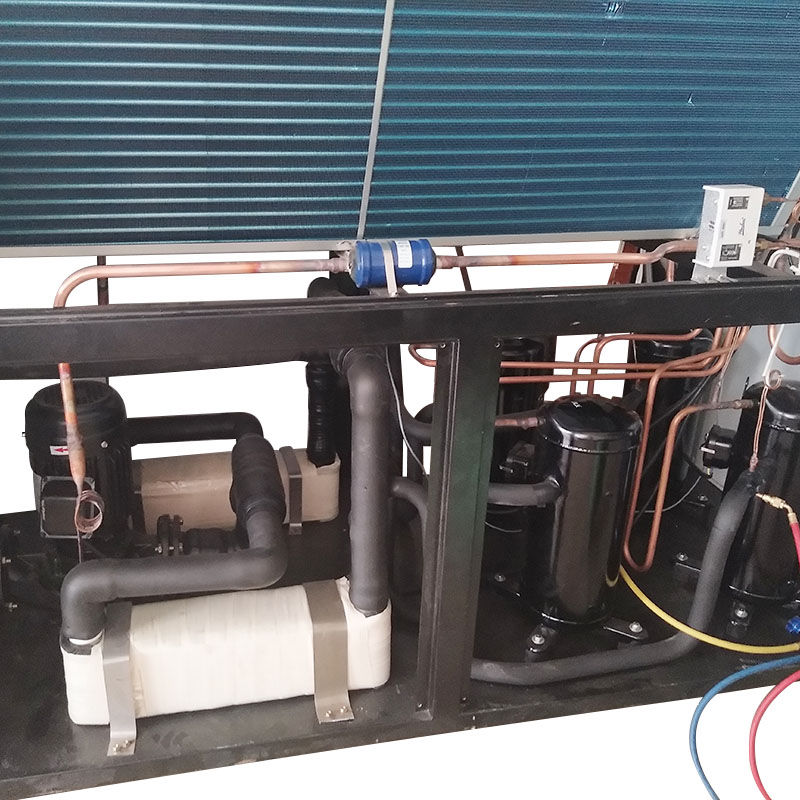

Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.
1. jiusheng uses internationally advanced scroll or piston compressors. The components of the electrical appliances and refrigeration system are all products of world-renowned brands.
2. Built-in stainless steel water tank, high-performance, high-flow special pump;
3. The bottom of the fuselage is equipped with movable casters, which is flexible and easy to use.
4. Over 50 kW, there are dual refrigeration circuits. Even if the main circuit fails, other circuits can operate as usual.
5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;
6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.
7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.
Number of compressors
|Compressor power (HP)||2||3||5||8||10||15||20||25||30||40||50|
|Refrigerant model||R22 / R404A / R407C / R410A/ R134AOptional|
|Evaporator type||Copper tube coil type|
|Evaporator inlet diameter||DN25||DN25||DN25||DN40||DN40||DN50||DN50||DN50||DN65||DN80||DN80|
|Condenser type||Fin type|
|Number of cooling fans||1||2||2||2||2||2||2||2||3||4||4|
|Single fan power (KW)||0.18||0.18||0.18||0.25||0.25||0.45||0.78||0.78||0.78||0.78||1|
Number of cold water
|Cold water inlet caliber||DN25||DN25||DN25||DN40||DN40||DN50||DN50||DN50||DN65||DN80||DN80|
|Water tank capacity (L)||45||50||67||145||145||200||245||245||300||350||400|
|Pump power (KW)||0.37||0.37||0.4||0.75||0.75||1.5||1.5||2.2||2.2||3.75||3.75|
|Pump flow (L/MIN)||100||100||100||200||200||360||360||360||650||700||700|
|Pump head (M)||22||22||22||13||13||15||15||15||16||16||16|
|System power (V)||AC380V/3P/50HZ|
|Control power (V)||AC220V1P|
|Total machine power (KW)||2||2.8||4.5||7.3||8.8||13.7||18.1||19.0||27.1||36.9||45.3|
|Power cord specification (m)||4x4||4x4||4x6||4x10||4x16||4x25||4x35|
|Power cord length (M)||Optional|
|Appearance size L x Wx H(mm)||76*52*100||123*50*112||140x57x122||150x70x145||160x73x145||185*88*162||196x83x176||196x83x176||245x95x195||260x200x110||260x200x110|
|Machine weight (Kg)||150||160||180||350||450||650||840||900||1050||1200||1500|
The data is for reference only, please consult customer service if you need to consult the precise parameters.
Joyson has focused on the refrigeration industry for 20 years. We are committed to manufacturing various industrial chillers. After 20 years of development, Joyson can provide many different types of industrial chillers, such as air-cooled chillers, water-cooled chillers, high and low temperature Controlled chillers, screw chillers, open chillers, all customized chillers, and oil coolers are widely used in many industries all over the world. According to regular customer feedback, the quality of Jiusheng chillers is very good. High, can operate stably for more than 10 years.
A. Leading manufacturer of industrial chillers for 12 years.
B. Expert in industrial cooling solutions.
C. Many customized services can be provided for industrial chillers.
D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.
E. Our industrial chillers have passed CE certification.
Thank you for your patience!
If you need to inquire about prices and technical issues, please call 13925748878 Miss Zhu，We will provide you with the best quality service.
