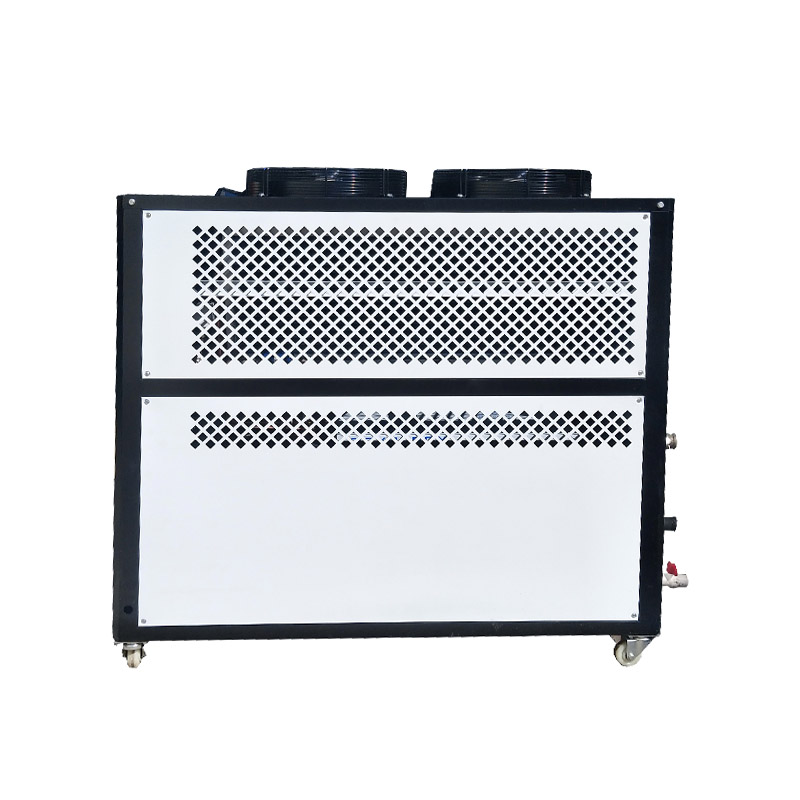

  • 3PH-460V-60HZ 10HP Industrial Oil Cooling Chiller - 0 3PH-460V-60HZ 10HP Industrial Oil Cooling Chiller - 0

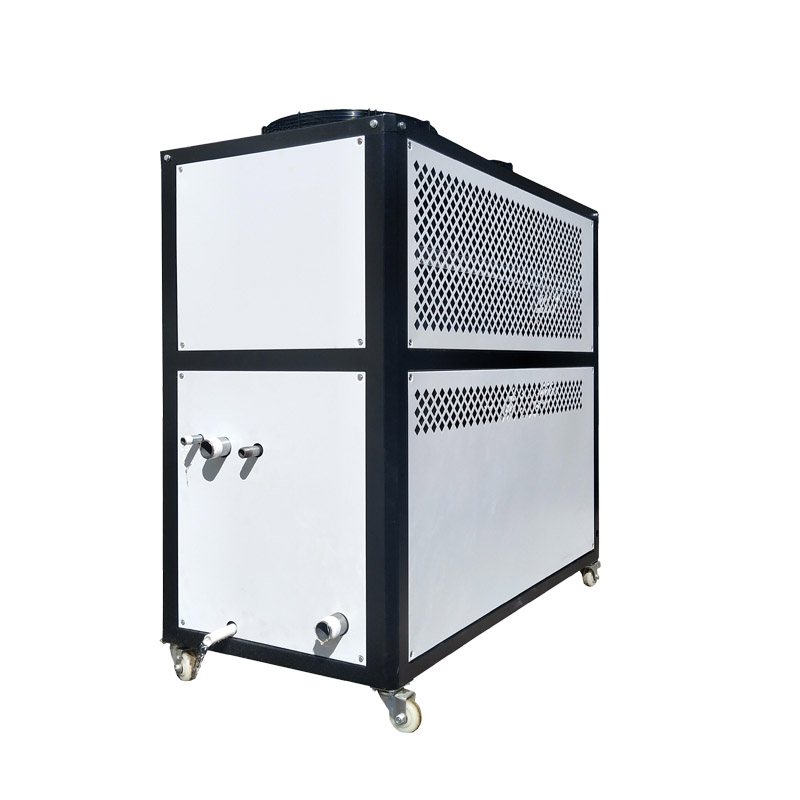

  • 3PH-460V-60HZ 10HP Industrial Oil Cooling Chiller - 1 3PH-460V-60HZ 10HP Industrial Oil Cooling Chiller - 1

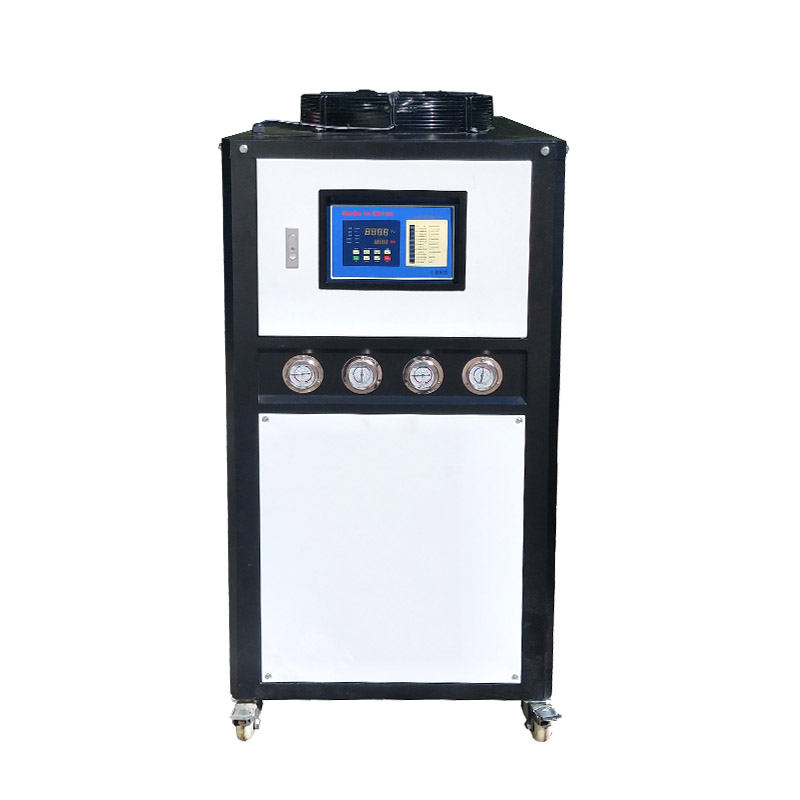

  • 3PH-460V-60HZ 10HP Industrial Oil Cooling Chiller - 2 3PH-460V-60HZ 10HP Industrial Oil Cooling Chiller - 2

3PH-460V-60HZ 10HP Industrial Oil Cooling Chiller

Customized 3PH-460V-60HZ 10hp Industrial Oil Cooling Chiller with 12 months Warranty is a CE-certified chiller. It can be installed without a cooling tower, easy to install, easy to move, and fast cooling 10HP horsepower chiller.

Model:JSLY-10-A

Send Inquiry

Product Description

3PH-460V-60HZ 10hp Industrial Oil Cooling Chiller


Introduction

This is a 3PH-460V-60HZ 10HP Industrial Oil Cooling chiller. With a cooling capacity of 30kW (25800Kcal/hr), this model is suitable for cooling CNC machine tools, grinders, machining centers, spindle lubricating oil and hydraulic oil of various precision machine tools.
The customized high-efficiency energy-saving system can save energy by 13% and reduce production costs. Create real value for customers and improve production efficiency.
The machine  is guaranteed for 12 months and provided with life-long free technical guide services.



Model: JSLY-10-A

Brand: Jiusheng

Voltage: 3PH-460V-60HZ
Compressor power: 10HP/7.35KW
Temperature control range: 5-35℃
Pump power: 750W
Pump flow: 25L/min
Cooling capacity: 30kW/hr (25800Kcal/hr)

Minimum order quantity: 1 set

Payment method: wire transfer, or by negotiation

Price: Negotiable

Place of Origin: Dongguan, Guangdong, China

Certificate: CE

Delivery time: Within 10 business days.

Service: OEM / ODM

Supply Ability: 1000PCS/month

Packing: plywood packing


Features

1. High-precision temperature control and high-speed cooling efficiency;energy-saving and environmentally friendly operation.

2. World-renowned full hermetic scroll compressor: Panasonic/Daikin/Copeland, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.

3. Built-in stainless steel oil tank, high-performance, high-flow special pump;

4. The bottom of the fuselage is equipped with swivel casters, which is flexible and easy to move.

5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;

6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.

7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.


Parameters

Description 10HP  Industrial Oil Cooling Chiller
Power supply 460V-60HZ-3PH
Total power consumption kW 8.3
Cooling capacity kW 30(when outlet temperature is 5  degrees)
kCal/hr 25800(when outlet temperature is 5 degrees)
Compressor Type Full hermetic Scroll Type
Set 2
Power kW 7.35
Starting mode Delay start
Refrigerant Type R22
Filling Kg 4
Evaporator Type Copper Coil integrated with Stainless steel Tank
Set 1
Material Copper & Stailess Steel
Chilled oil flow 25 L/Min
Pipe Diameter DN40
Condenser Type High-efficiency copper tube-sleeved aluminum fin type+ low-noise external rotor fan
Fan kW 0.25
Set 2
Cooling air volume 5000 m³/h
Built-in oil tank Material Stainless Steel Square
Machine size L*W*H (mm) 162*75*165
Net weight KG 310
Protection System Compressor over current protection, overload protection, High/low pressure protection, phase sequence/phase missing protection, anti-freezing protection, over temperature protection, oil flow/lever protection.
Ambient temperature: 5 - 43 degrees Celcius

Why buy a chiller from us?

A. Leading manufacturer of industrial chillers for 20 years.

B. Expert in industrial cooling solutions.

C. Many customized services can be provided for industrial chillers.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our industrial chillers have passed CE certificate.


Applications
