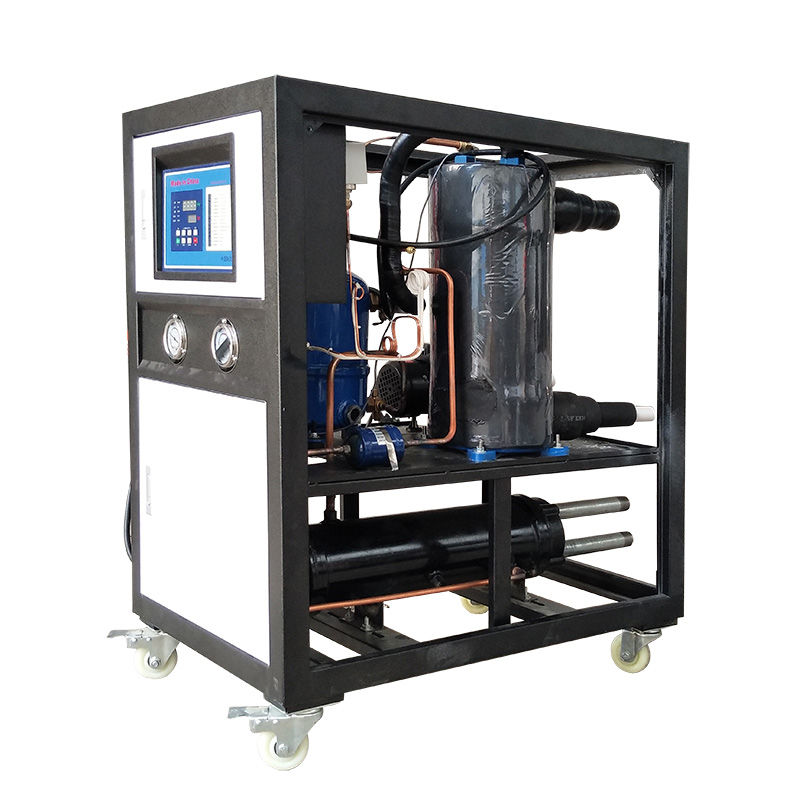

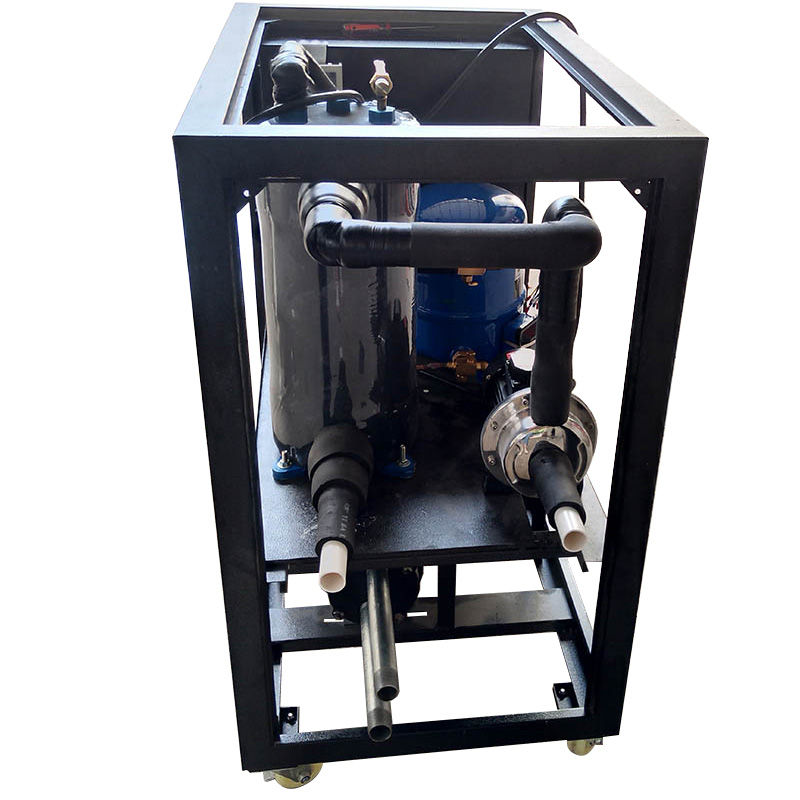

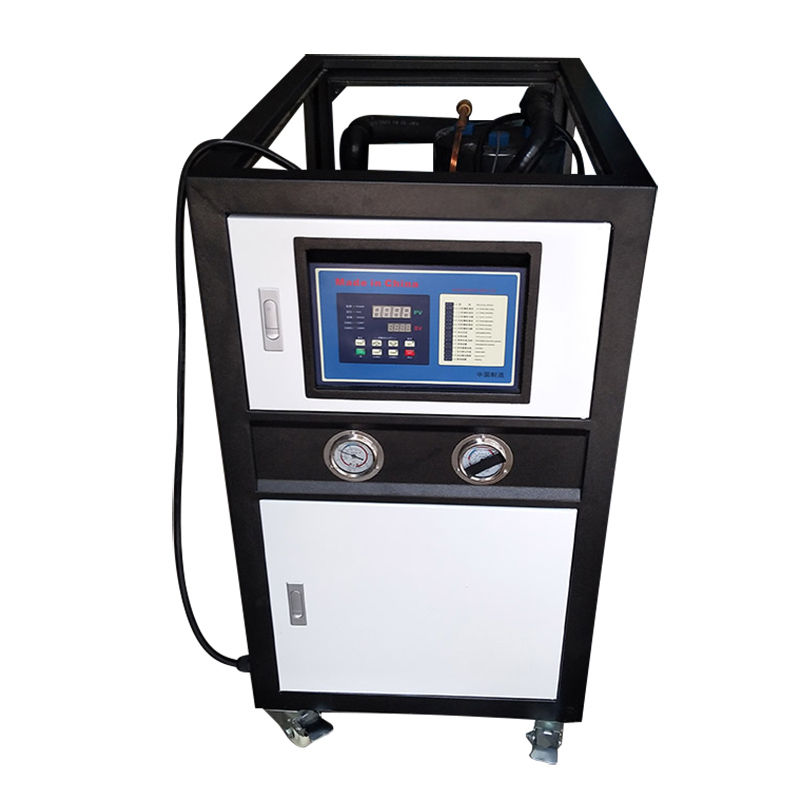

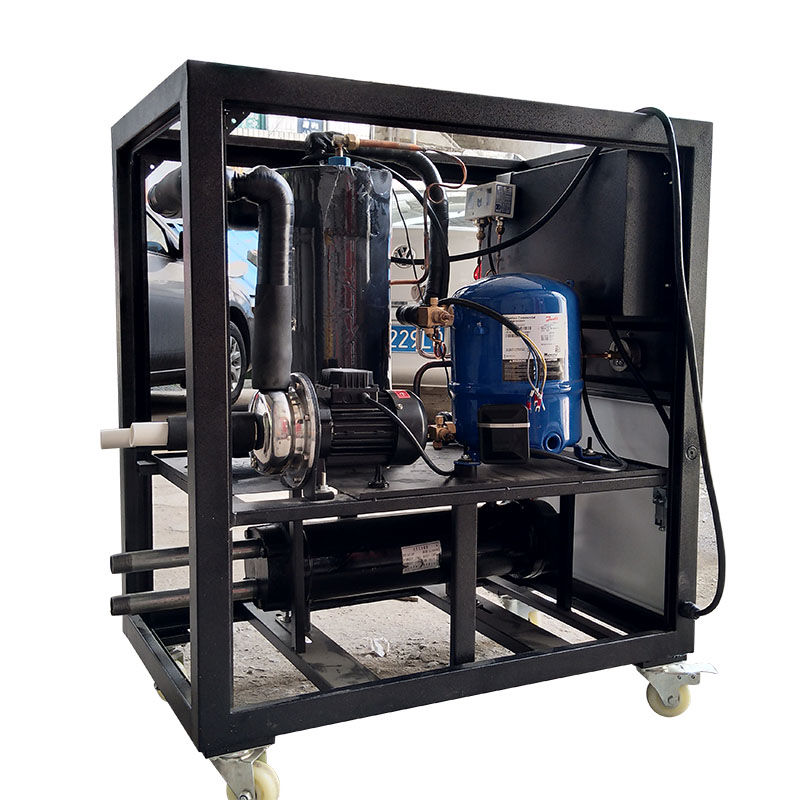

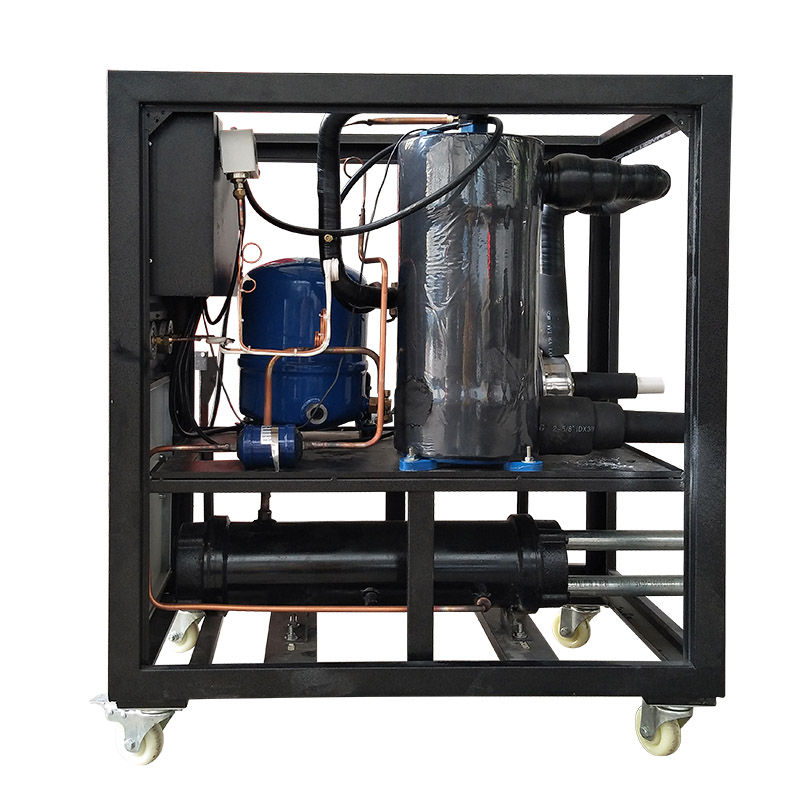

3hp Water-cooled Cannon Chiller
3hp Water-cooled Cannon Chiller is a CE certified chiller, which is widely used in medical, food, biological, chemical, laser, metallurgy, mechanical equipment, electroplating, processing and other industries. Since the source of heat exchange is water, it is equipped with a special cooling tower, so it is called "water cooling".
3hp Water-cooled Cannon Chiller is mainly suitable for plastic and mechanical processing. It can accurately control the temperature of the plastic forming mold to shorten the molding cycle and accelerate the product setting; this series uses the principle of cold and heat exchange for cooling, which can quickly cool down and stabilize the temperature. And not affected by environmental factors, it is an indispensable configuration equipment in modern industry
The unit adopts full hermetic scroll compressors of international famous brands such as Panasonic, Copeland, Daikin, and Schneider Electric accessories. Stable operation, low noise and fast cooling. It is simple to use and easy to operate.
The standard temperature can be controlled from 5-35°C, and the non-standard type can be customized for ultra-low temperature -50°C. This chiller is favored by customers and is affordable. It is generally used for cooling plastic molds.
The machine runs continuously for 4,800 hours without failure, the whole machine is guaranteed for 1 year, and we provide more than 10 years of free technical guide services. The customized high-efficiency energy-saving system can save energy by 13% compared with ordinary chillers and reduce production costs. Create real value for customers to improve production efficiency.
Minimum order quantity: 1 set
Payment method: wire transfer, EXW, FOB/negotiation
Place of Origin: Dongguan City, Guangdong Province, China
Delivery time: 10-20 days/negotiation
Service: OEM / ODM
Supply Ability: 1000PCS/month
Packing: plywood packing
1. High-precision temperature control; high-speed cooling efficiency; energy-saving and environment friendly operation.
2. World-renowned accessories: Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.
3. High-performance, high-flow special pump;
4. The bottom of the fuselage is equipped with swivel casters, flexible and easy to move.
5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), the operation procedure is clear at a glance;
6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.
7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.
|Cooling capacity (W)||8.5||14||23||29||43||57||71||90||126||158|
Number of compressors
|Compressor power (HP)||3||5||8||10||15||20||25||30||40||50|
|Use refrigerant model||R22 / R404A / R407C / R410A/ R134AOptional|
|Evaporator type||Coil type|
Evaporator inlet and
|Condenser type||Shell and tube|
Cold water import and
export quantity (group)
Cold water inlet
and outlet path
|Water tank capacity (L)||50||60||140||140||200||220||250||270||360||500|
|Water tank capacity (L)||0.37||0.37||0.37||0.75||1.50||1.50||2.20||2.20||3.75||3.75|
|Pump flow (L/MIN)||100||100||200||200||360||360||650||650||700||700|
|Pump head (M)||22||22||13||13||15||15||16||16||16||16|
|System power (V)||AC380V/3P/50HZ|
|Control power (V)||AC220V1P|
|Total machine power (KW)||2.8||4.1||6.75||8.25||12.75||16.50||21.00||24.80||33.80||41.30|
|Power cord length (M)||Optional|
|Appearance size L x Wx H(mm)||97*55*102||97x55x102||140x68x142||140x68x142||160x67x152||185x70x150||185x70x150||220x80x152||185x80x170||200x80x170|
|Machine weight (Kg)||140||160||430||460||540||720||780||880||1030||1450|
Note:The data is for reference only, please consult customer service for precise parameters.
A. Leading manufacturer of industrial chillers for 20 years.
B. Expert in industrial cooling solutions.
C. Many customized services can be provided for industrial chillers.
D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.
E. Our industrial chillers have passed CE certification.
