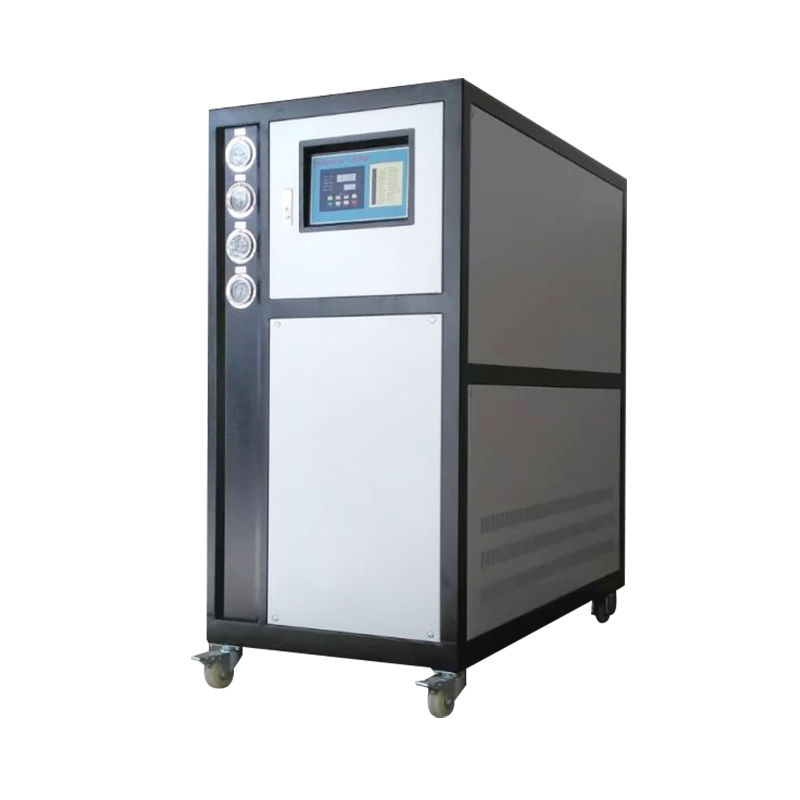

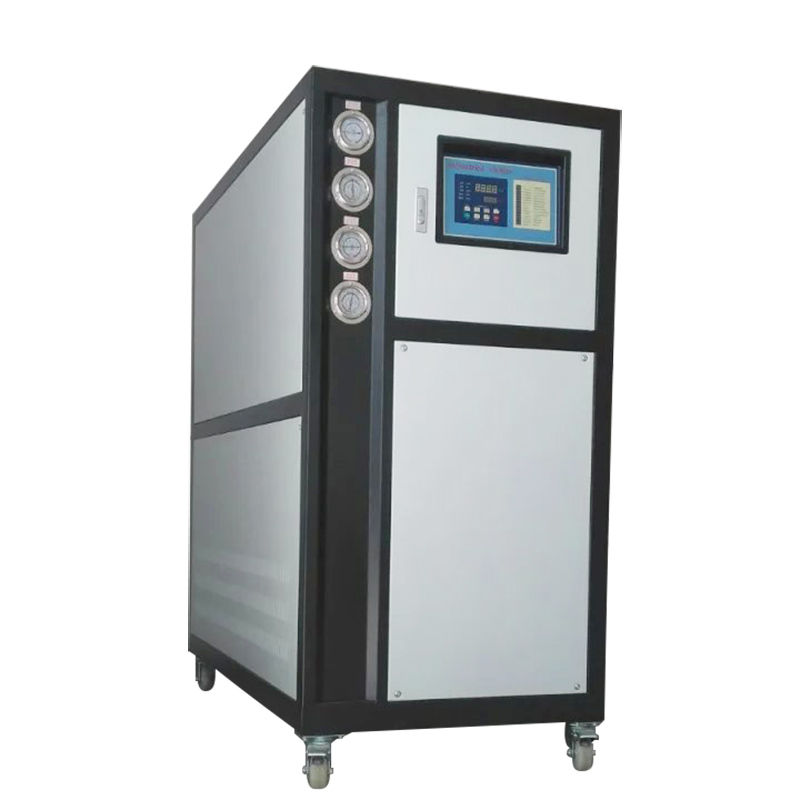

10hp Water-cooled Cannon Chiller
10hp Water-cooled Cannon Chiller is a CE certified chiller, which is widely used in medical, food, biological, chemical, laser, metallurgy, mechanical equipment, electroplating, processing and other industries. Since the source of heat exchange is water, it is equipped with a special cooling tower, so it is called "water cooling".
10hp Water-cooled Cannon Chiller is mainly suitable for plastic and mechanical processing. It can accurately control the temperature of the plastic forming mold to shorten the molding cycle and accelerate the product setting; this series uses the principle of cold and heat exchange for cooling, which can quickly cool down and stabilize the temperature. And not affected by environmental factors, it is an indispensable configuration equipment in modern industry
The unit adopts fully enclosed scroll compressors of international brands such as Panasonic, Copeland, Daikin, and Schneider Electric accessories. Stable operation, low noise and fast cooling. It is simple to use and easy to operate.
The standard temperature can be controlled from 5-35°C, and the non-standard type can be customized for ultra-low temperature -50°C. This chiller is favored by customers and is affordable. It is generally used for cooling plastic molds. We achieve a pre-sale response speed within 10 minutes, a sales response within 20 minutes, and a after-sale response within 24 hours.
The machine runs continuously for 4,800 hours without failure, the whole machine is guaranteed for 1 year, and we provide more than 10 years of free technical guidance services. The customized high-efficiency energy-saving power-saving system can save energy by 13% compared with ordinary chillers and reduce production costs. Create real value for customers to improve production efficiency.
Model: JSKG-10, power specification: 10HP water-cooled gun
Minimum order quantity: 1 set
Payment method: wire transfer, EXW, FOB/negotiation
Place of Origin: Dongguan City, Guangdong Province, China
Delivery time: 10-20 days/negotiation
Service: OEM / ODM
Supply Ability: 1000PCS/month
Packing: plywood packing
1. 10hp Water-cooled Cannon Chiller,High-precision temperature control and high-speed cooling efficiency, and energy-saving and environmentally friendly operation
As a professional supplier of industrial chillers, jiusheng has 20 years of experience in the design and manufacture of industrial chillers. Our smart and special design help our customers save a lot of money.
Our air-cooled chillers save a lot of electricity costs for our customers with high cooling efficiency and low-carbon operation.
2. 10hp Water-cooled Cannon Chiller,Famous brand accessories in our industrial chillers
We use world-renowned accessories in our air-cooled industrial chillers. If used normally, our industrial chillers can be used for more than 10 years.
Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.
1. Joyson uses internationally advanced scroll or piston compressors. The components of the electrical appliances and refrigeration system are all world-renowned brands.
2. Built-in stainless steel water tank, high-performance, high-flow special pump;
3. The bottom of the fuselage is equipped with movable casters, which is flexible and easy to use.
4. Over 50 kW, there are dual refrigeration circuits. Even if the main circuit fails, other circuits can operate as usual.
5. Streamlined aesthetic design, concave-convex design of the operation panel (humanized design), and the operation procedure is clear at a glance;
6. Compared with the traditional control method, this special controller has obvious advantages such as anti-electromagnetic interference, anti-cold, anti-heat, strong control logic, sensitive response and accurate action.
7. Comprehensive safety protection: 1) High and low pressure protection and safety valve of the refrigeration system; 2) Soft and hard double protection of compressor overload; 3) Phase loss, reverse, undervoltage and overvoltage protection of the power supply; 4) Water system Freeze protection and water flow protection.
|Cooling capacity (W)||8.5||14||23||29||43||57||71||90||126||158|
Number of compressors
|Compressor power (HP)||3||5||8||10||15||20||25||30||40||50|
|Use refrigerant model||R22 / R404A / R407C / R410A/ R134AOptional|
|Evaporator type||Coil type|
Evaporator inlet and
|Condenser type||Shell and tube|
Cold water import and
export quantity (group)
Cold water inlet
and outlet path
|Water tank capacity (L)||50||60||140||140||200||220||250||270||360||500|
|Water tank capacity (L)||0.37||0.37||0.37||0.75||1.50||1.50||2.20||2.20||3.75||3.75|
|Pump flow (L/MIN)||100||100||200||200||360||360||650||650||700||700|
|Pump head (M)||22||22||13||13||15||15||16||16||16||16|
|System power (V)||AC380V/3P/50HZ|
|Control power (V)||AC220V1P|
|Total machine power (KW)||2.8||4.1||6.75||8.25||12.75||16.50||21.00||24.80||33.80||41.30|
|Power cord length (M)||Optional|
|Appearance size L x Wx H(mm)||97*55*102||97x55x102||140x68x142||140x68x142||160x67x152||185x70x150||185x70x150||220x80x152||185x80x170||200x80x170|
|Machine weight (Kg)||140||160||430||460||540||720||780||880||1030||1450|
note:The data is for reference only, please consult customer service if you need to consult the precise parameters.
jiusheng has focused on the refrigeration industry for 20 years. We are committed to manufacturing various industrial chillers. After 20 years of development, Joyson can provide many different types of industrial chillers, such as air-cooled chillers, water-cooled chillers, high and low temperature Controlled chillers, screw chillers, open chillers, all customized chillers, and oil coolers are widely used in many industries all over the world. According to regular customer feedback, the quality of Jiusheng chillers is very good. High, can operate stably for more than 11 years.
A. Leading manufacturer of industrial chillers for 12 years.
B. Expert in industrial cooling solutions.
C. Many customized services can be provided for industrial chillers.
D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.
E. Our industrial chillers have passed CE certification.
