700KG Three-in-one Dehumidification Dryer
  • 700KG Three-in-one Dehumidification Dryer - 0 700KG Three-in-one Dehumidification Dryer - 0
  • 700KG Three-in-one Dehumidification Dryer - 1 700KG Three-in-one Dehumidification Dryer - 1
  • 700KG Three-in-one Dehumidification Dryer - 2 700KG Three-in-one Dehumidification Dryer - 2
  • 700KG Three-in-one Dehumidification Dryer - 3 700KG Three-in-one Dehumidification Dryer - 3

700KG Three-in-one Dehumidification Dryer

The 700KG Three-in-one Dehumidification Dryer is a drying equipment that dehumidifies plastic materials with three functions: dehumidification, drying, and two-stage feeding. Dehumidification Dryers can be used for optical products such as lenses, LCD light guide plates, and optical discs. Our 700KG three-in-one dehumidifier dryer has a dew point of -40 and a minimum of -50°C, and the service life of the machine is more than 10 years. The company has CE certification and provides perfect pre-sales, in-sales, and after-sales services under the premise of quality assurance. We look forward to becoming your ideal partner in China.

Send Inquiry

Product Description

700kg Three-in-one Dehumidification Dryer


Introduction

The 700KG Three-in-one Dehumidification Dryer can be applied to PA, PET, PC, PBT, CA and other materials with strong hygroscopicity. It has been proved through practice to reduce the dew point of the drying wind to below -40°C. The Three-in-one Dehumidification Dryer has 25KG, 50KG, 75KG, 100KG, 150KG, 200KG and can achieve a dehumidification processing capacity of 1000KG. The optical-grade dehumidification dryer system is equipped with a high-precision high-efficiency filter, which can effectively filter fine dust ions up to 0.3μm, with a filtration rate of 99.9%.


Three-in-one Dehumidification Dryer Parameter Table

 Model  JSCSJ-50 JSCSJ-80 JSCSJ-120 JSCSJ-150 JSCSJ-200 JSCSJ-300 JSCSJ-400 JSCSJ-500 JSCSJ-700 JSCSJ-1000
Dehumid air volume m³/HR 50 80 120 150 200 300 400 500 700 1000-1000
Runner size ¢150*200H ¢180*200H ¢250*200H ¢250*300H ¢250*400H ¢350*300H ¢350*400H ¢440*300H ¢440*400H ¢550*400H
Regenerative power kW 3 3.9 4.5 6 6 8 8 12 14 16
Drying fan kW 0.4 0.55 0.75 1.5 1.5 2.2 3 5.5 7.5 8.5
Regenerative fan kW 0.18 0.2 0.4 0.4 0.4 0.55 0.55 1.1 1.5 2.2
Air inlet and outlet diameter lnch 2 2 2.5 2.5 2.5 3 3 4 4 5
Power Supply 3PH-380V-50HZ
Width mm 600 600 650 650 650 800 800 900 900 1000
Depth mm 700 700 850 900 900 1100 1100 1100 1200 1300
Height mm 1450 1450 1550 1760 1760 1800 1800 2050 2050 2050
Cooling water port DN25 DN25 DN25 DN25 DN25 DN25 DN25 DN25 DN25 DN25
Total power kW 3.58 9.63 5.65 7.9 7.9 10.75 11.55 18.6 23 26.7


Features of Three-in-one Dehumidification Dryer

1. It integrates three functions of dehumidification, drying and two-stage feeding;

2. The dehumidification part is equipped with a wheel device, which can provide stable and low dew point air, and the lowest dew point can reach -50℃;

3. The stainless steel double-layer heat preservation drying barrel adopts the design of lower blowing pipe, so that the raw materials are evenly dried and effectively prevent the loss of heat;

4. The feeding system is equipped with a shut-off valve to ensure that there is no residual raw material in the material pipe;

5. The closed loop feeding system can prevent the raw materials from being polluted or re-moisture;

6. The optical-grade model is equipped with a boiling electric eye hopper, which can remove the fine powder in the raw material, and can avoid the generation of stains in the molding of optical-grade products;

7. The optical-grade model system is equipped with high-precision and high-efficiency filters, which can effectively filter dust ions up to 0.3μm, and the filtration rate is up to 99.9%;

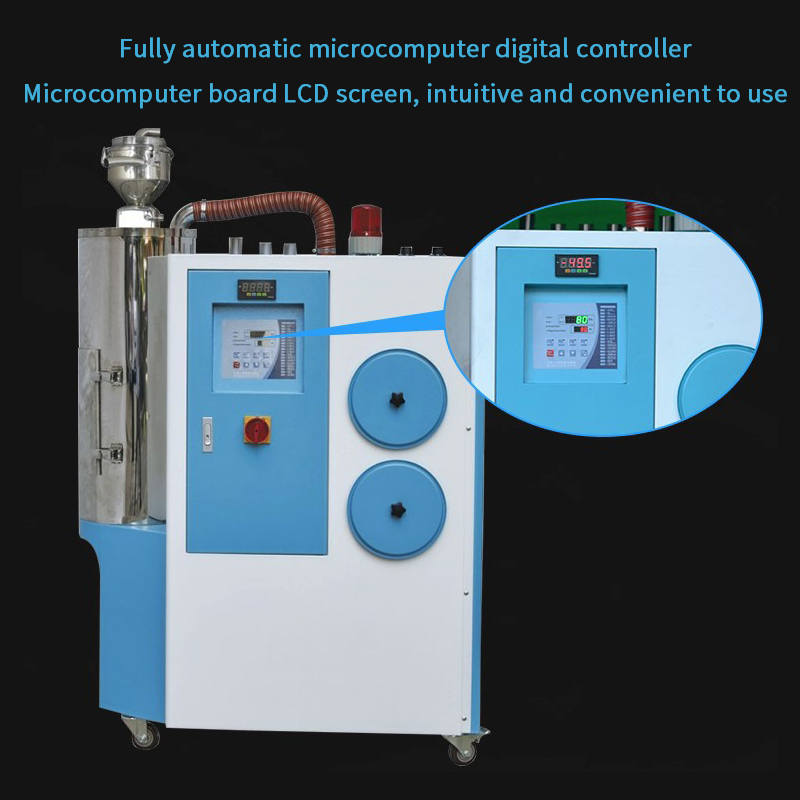

8. PLC control with LCD touch man-machine interface can be purchased, the operation is centralized and convenient, and the whole machine can be controlled to run automatically;

9. Dew point detection device can be purchased;

10. Cyclone dust collector, oil filter and other accessories can be purchased



Three-in-one Dehumidification Dryer Structure Diagram

A. Ceramic honeycomb runner

B. Cooler

C. Dehumidification heater

D. Regenerative heater

E. Regenerative motor

F. Suction motor

G. Dehumidification motor

H. Drying barrel

L. Suction hopper


Three-in-one Dehumidification Dryer Installation Diagram


Applications


Export Packing


FAQ

Q: How many years has your factory been established?

Answer: Our factory was established in 2016, but our engineers and technicians have worked in this industry for more than 15 years.



Q: How long is your delivery time?

Answer: We have some stocks of standard models. But if it takes about 3-7 working days to produce a normal machine.

If it is one or more units, it will take about 15-20 working days.



Q: How long is the warranty period of the 800KG Three-in-one Dehumidification Dryer?

Answer: Within 1 year from the date of leaving the factory, if the parts are faulty or damaged (except for the wearing parts due to quality problems), our company will provide these parts for free.



Q: What are your payment terms?

Answer: T/T 100% before delivery, L/C at sight



Q: Can you help us recommend a model suitable for our project?

Answer: Yes, we have engineers professionally calculate for you, and reasonably recommend the machine suitable for your use. Our engineers can check the details and make the structure. Based on the following points: 1) function recommendation; 2) power matching; 3) size determination 4) voltage recommendation; 5) applicable industry 6) machine drawings (if any) 7) other special requirements, etc.



Question: How to ensure that your products are of good quality?

Answer: We use the core components of international brand accessories, such as French Schneider Electric, etc. The configuration equipment has been load tested to ensure good quality and easy installation by users.


Why choose to buy a 700KG Three-in-one Dehumidification Dryer from us?

A. We have more than 20 years of production technology experience.

B. We can provide you with more suitable solutions.

C. Can provide you with customized services for a variety of needs.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E. Our company has CE certification.
