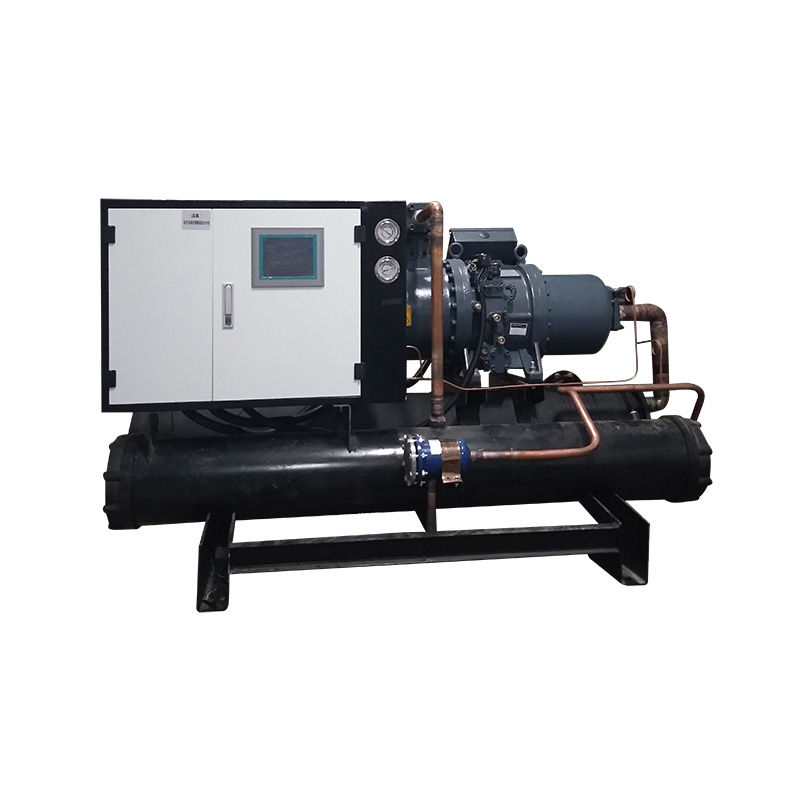

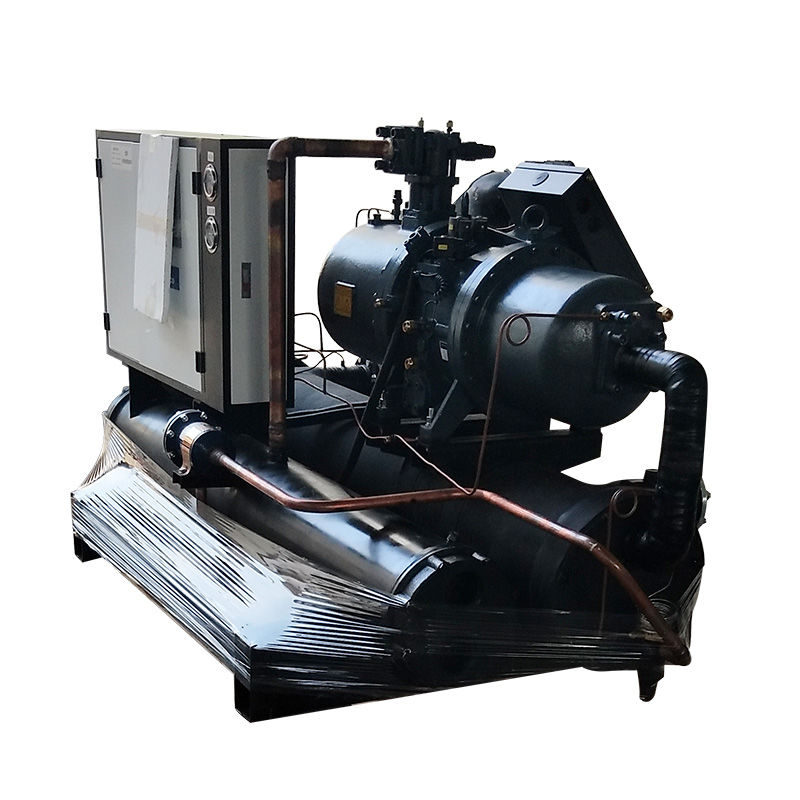

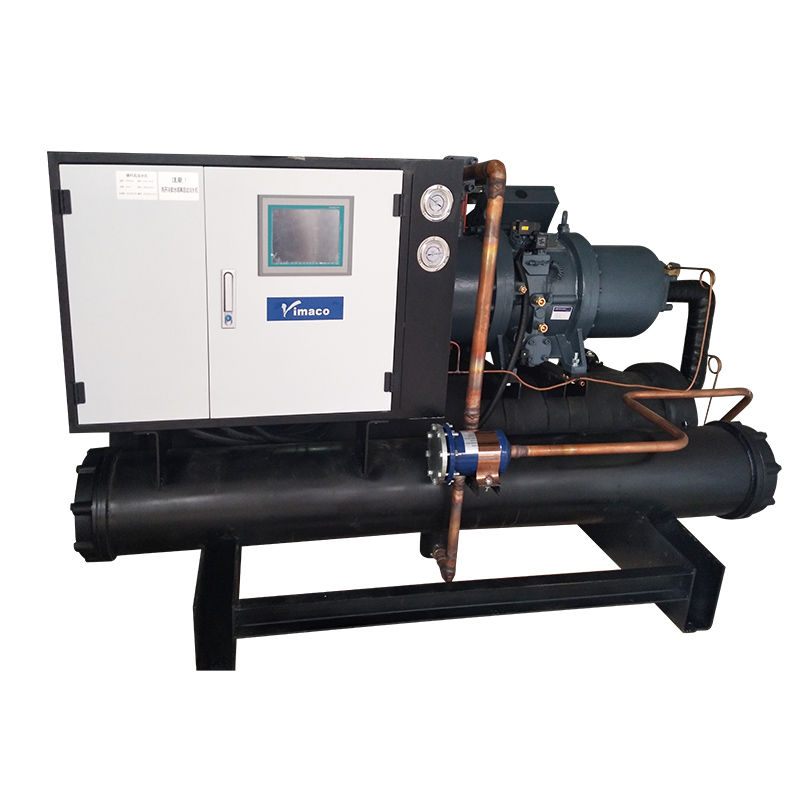

100HP Water-cooled Screw Chiller
100HP Water-cooled Screw Chiller is a CE-certified chiller with screw chillers to this name because of a screw compressor. Its refrigeration power is larger than the power of the scroll, mainly used in chemical plants, ink printing plants, automotive manufacturers, or central air conditioning systems or other large industrial cooling. Since the source of heat exchange is water, there is a dedicated cooling tower equipped, so it is called "water cooling".
Screw chillers can be divided into two types: water-cooled screw chillers and air-cooled screw chillers. Because of their key components-the compressor adopts screw type, it is named screw chiller. The unit is in the state of gas coming out of the evaporator. Refrigerant: After adiabatic compression by the compressor, it becomes a high temperature and high pressure state. 100HP Water-cooled Screw Chiller is your good choice.
The compressed gas refrigerant is cooled and condensed at equal pressure in the condenser, and then changes into a liquid refrigerant after condensation, and then expands to a low pressure through a throttle valve and becomes a gas-liquid mixture. Among them, the liquid refrigerant under low temperature and low pressure absorbs the heat of the substance to be cooled in the evaporator and becomes a gaseous refrigerant again.
The gaseous refrigerant re-enters the compressor through the pipeline to start a new cycle. These are the four processes of the refrigeration cycle and the main working principle of the screw chiller.
Non-standard type can be customized for ultra-low temperature -50°C. This chiller is popular with customers and is affordable. It is generally used for cooling plastic molds. We achieve a pre-sale response speed within 10 minutes, a sales response within 20 minutes, and a after-sale response within 24 hours. The machine runs continuously for 4,800 hours without failure.
The whole machine has a 1-year warranty and provides free technical guidance services for more than 10 years. The customized high-efficiency energy-saving power-saving system can save energy by 13% compared with ordinary chillers and reduce production costs. Create real value for customers to improve production efficiency.
Model: JSLG-100, Power Specification: 100HP Screw
Minimum order quantity: 1
Payment method: wire transfer, exw, fob / negotiation
Origin: Dongguan, Guangdong, China
Delivery time: 10-30 days / negotiation
Service: OEM / ODM
Supply Ability: 100PCS / Month
Packing: plywood packaging
1. 100hp Water-cooled Screw Chiller,High-precision temperature control and high-speed cooling efficiency, and energy-saving and environmentally friendly operation
As a professional supplier of industrial chillers, Joyson has 20 years of experience in the design and manufacture of industrial chillers.
Our smart and special design help our customers save a lot of money. Our air-cooled chillers save a lot of electricity costs for our customers with high cooling efficiency and low-carbon operation.
2. 100hp Water-cooled Screw Chiller,Famous brand accessories in our industrial chillers
We use world-renowned accessories in our air-cooled industrial chillers. If used normally, our industrial chillers can be used for more than 10 years.
Panasonic/Daikin/Copeland compressors, Schneider Electric, Muchuan water pumps, Talos copper pipes, etc.
1. Joyson uses internationally advanced screw, scroll or piston compressors. The components of the electrical appliances and refrigeration system are all products of world-renowned brands.
2. Screw chillers for industrial
Use can provide 5～15℃chilled water, or use ethylene glycol solution as refrigerant, and can provide process chilled water solution at -5～+5℃, which can be used as ice storage, low temperature air supply, central air conditioning and other production process requirements The process cold source. At the same time, according to the user.
According to the requirements, the unit is specially designed to provide chillers with large temperature difference (the temperature difference between inlet and outlet water is 8-15℃). Or higher water temperature unit (outlet water temperature 15℃～25℃). The cooling capacity is 94KW-3360KW.
3. Standard temperature screw chiller
The outlet water temperature is 5℃～35℃, and the fully enclosed screw compressor unit is used; it can be used as a process cooling for plastics, electroplating, swimming pool, central air-conditioning host, etc.
4. Medium temperature screw chiller
The outlet water temperature is -5℃～-45℃, using imported semi-hermetic screw compressor unit; it can provide -5℃～-45℃low temperature glycol solution or saline solution. It can be used as a cold source for processes such as chemical industry, medicine, cold storage, ice rink, etc. The cooling capacity is 55KW-2000KW.
5. Low temperature screw chiller
The outlet water temperature is -45℃～-110℃, and it can provide -45℃～-110℃alcohol or calcium chloride aqueous solution chilled water; it adopts binary cascade or ternary cascade screw refrigeration system. High energy efficiency ratio and stable operation.
At the same time, it can be designed according to the requirements of use. Ultra-low temperature, anti-corrosion, and explosion-proof special industrial screw chillers can meet the requirements of various industries for process cold sources.
|Selection of refrigerant||R22/R407C/R134a0ptional|
|Reflection||1 in 1 out|
|Throttling device||Thermal Expansion Valve/Electronic Expansion Valve|
|coirf)ressor||Type||Semi-closed screw type|
|Start method||Y - A/Split winding|
|Input power (KW)||23.3||30.7||38.5||42.2||48.5||56.0||63.0||66.3||79.6|
|Rated current (A)||39||52||65||71||86||94||106||111||134|
|Condenser||Type||High-performance externally threaded copper tube and tube type|
|Water flow (m3/h)||21.5||29.0||36.2||41.3||48. 1||55.2||64.5||68.2||80.8|
|Water pressure loss (Kpa)||40||40||40||40||45||45||50||50||50|
|Water pipe specifications||DN65||DN80||DN80||DN80||DN80||DN80||DN100||DN100||DN100|
|Evaporator||Type||High-performance internally threaded copper tube shell and tube type|
|Water flow (m3/h)||17.5||23.7||29.6||34.0||39.7||45.6||53.7||56.7||67. 1|
|Water pressure loss (Kpa)||60||60||60||60||60||60||65||65||65|
|Water pipe specifications||DN65||DN80||DN80||DN80||DN80||DN80||DN100||DN100||DN100|
|safety devices||Leakage switch safety device|
|Machine weight (kg)||960||990||1260||1380||1450||1520||1650||1750||1950|
|Run weight (kg)||1100||1150||1420||1550||1650||1700||1830||1950||2150|
Jiusheng has focused on the refrigeration industry for 20 years. We are committed to manufacturing various industrial chillers. After 20 years of development, Jiusheng can provide many different types of industrial chillers, such as air-cooled chillers, water-cooled chillers, high and low temperature Controlled chillers, screw chillers, open chillers, all customized chillers, and oil coolers are widely used in many industries all over the world. According to regular customer feedback, the quality of Jiusheng chillers is very good. High, can operate stably for more than 10 years.
Q1: Are you a manufacturer?
A1: Yes, we have more than 20 years of experience in chiller manufacturing. We are located in Renzhou Industrial Zone, Shatian Town, Dongguan City, Guangdong Province, China. Welcome to visit anytime!
Q2: Can you help us recommend a model suitable for our project?
A2: Yes, we have engineers professionally calculate for you and reasonably recommend the machine suitable for your use. Our engineers can check the details and make the structure. Based on the following points: 1) cooling capacity; 2) refrigerant; 3) cold water inlet and outlet temperature 4) voltage; 5) what industry 6) architectural drawings (if any) 7) other special requirements.
Q3: How to ensure that your products are of good quality?
A3: We use international brand accessories, such as Japan's Panasonic brand, American Copeland, Japan Daikin, French Schneider Electric Emerson expansion valve, etc. All SANHER cooler plants are tested under load to ensure good quality and easy installation. user.
Q4: How long is the warranty period?
A4: Counting from the date of production and leaving the factory, the free warranty is within 1 year. If both parties confirm that the quality causes the damage, a 12-month free warranty will be provided.
Q5: What is your payment method?
A5: We accept TT, LC, Western Union money transfer. Wire transfer and other methods, 50% deposit in advance for production, and the balance is paid before delivery.
Q6: Can you design for us?
A6: Yes, we can customize the production of chillers according to the user's detailed information. In addition, we can design the cooling circulation system (machine color appearance, cooling tower water pump, water tank water pump, closed evaporator). We can customize it for user needs.
Q7: What is the delivery time for production?
A7: For standard box-type chillers, 2HP-30HP is basically available in stock and can be shipped within 2 days after receipt. The production cycle of customized machines with special requirements such as non-standard voltage, refrigerant, internal structure, etc. is measured and determined according to the quantity. For screw chillers and scroll chillers, the production cycle is generally 25 working days after receiving the deposit.
A. Leading manufacturer of industrial chillers for 12 years.
B. Expert in industrial cooling solutions.
C. Many customized services can be provided for industrial chillers.
D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.
E. Our industrial chillers have passed CE certification.
Thank you for your patience!
If you need to inquire about prices and technical issues, please call 13925748878 Miss Zhu，We will provide you with the best quality service.
